yoRk iNteRNAtioNAl
46
FoRm 180.30-Rpstl

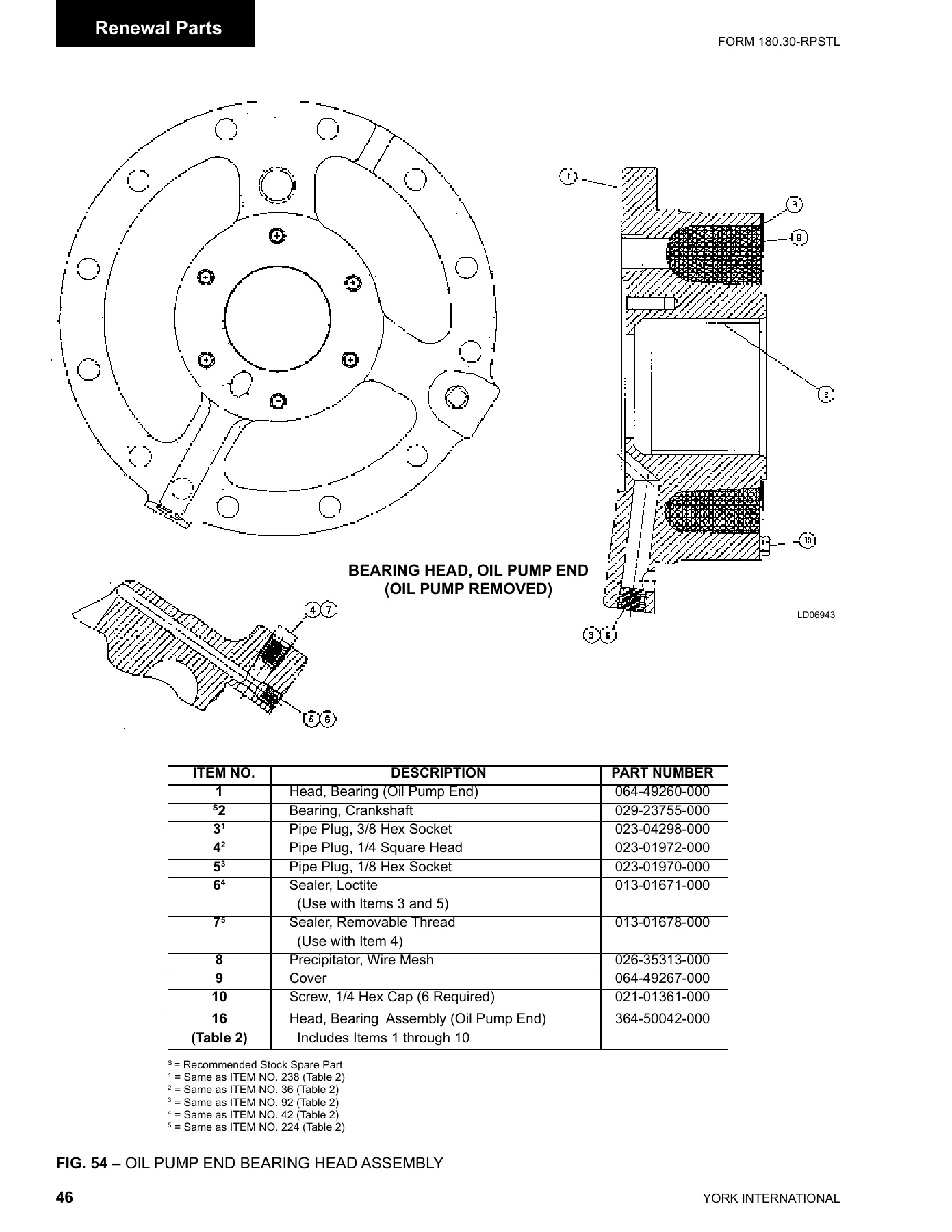

fig. 54 –
oil pUmp eND BeARiNG HeAD AssemBly
lD06943
bearing head, oil pump end
(oil pump remoVed)
s
= Recommended stock spare part
1
= same as item No. 238 (table 2)
2
= same as item No. 36 (table 2)
3
= same as item No. 92 (table 2)
4
= same as item No. 42 (table 2)
5
= same as item No. 224 (table 2)
item no.
description
part number
1
Head, Bearing (oil pump end)
064-49260-000
s
2
Bearing, Crankshaft
029-23755-000
3
1
pipe plug, 3/8 Hex socket
023-04298-000
4
2
pipe plug, 1/4 square Head
023-01972-000
5
3
pipe plug, 1/8 Hex socket
023-01970-000
6
4
sealer, loctite
013-01671-000
(Use with items 3 and 5)
7
5
sealer, Removable thread
013-01678-000
(Use with item 4)
8
precipitator, Wire mesh
026-35313-000
9
Cover
064-49267-000
10
screw, 1/4 Hex Cap (6 Required)
021-01361-000
16
Head, Bearing Assembly (oil pump end)
364-50042-000
(table 2)
includes items 1 through 10
renewal parts
