* Included in Bearing Kit
† Included in O-Ring Kit

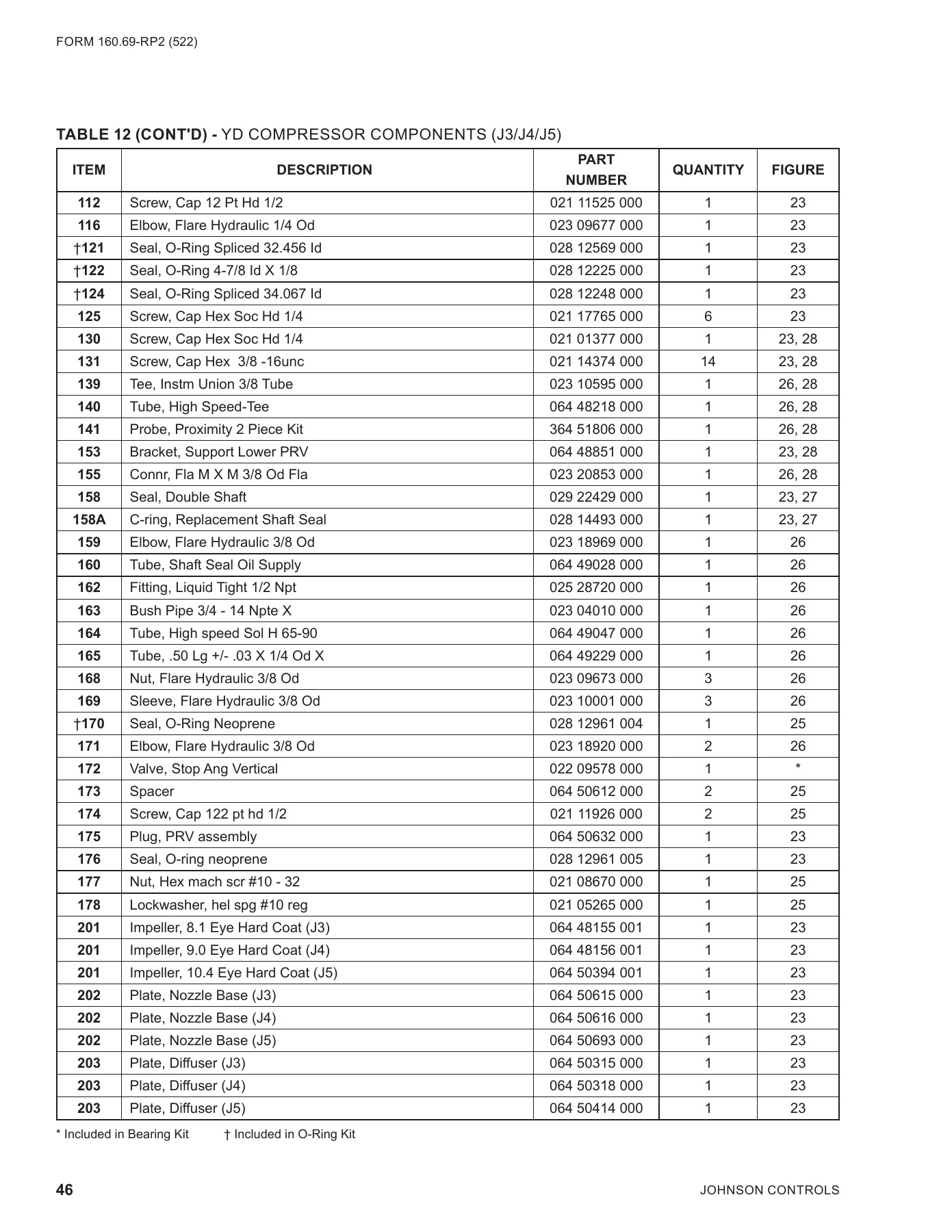

TABLE 12 (CONTD) -
YD COMPRESSOR COMPONENTS (J3/J4/J5)
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
112
Screw, Cap 12 Pt Hd 1/2
021 11525 000
1
23
116
Elbow, Flare Hydraulic 1/4 Od
023 09677 000
1
23
†
121
Seal, O-Ring Spliced 32.456 Id
028 12569 000
1
23
†
122
Seal, O-Ring 4-7/8 Id X 1/8
028 12225 000
1
23
†
124
Seal, O-Ring Spliced 34.067 Id
028 12248 000
1
23
125
Screw, Cap Hex Soc Hd 1/4
021 17765 000
6
23
130
Screw, Cap Hex Soc Hd 1/4
021 01377 000
1
23, 28
131
Screw, Cap Hex 3/8 -16unc
021 14374 000
14
23, 28
139
Tee, Instm Union 3/8 Tube
023 10595 000
1
26, 28
140
Tube, High Speed-Tee
064 48218 000
1
26, 28
141
Probe, Proximity 2 Piece Kit
364 51806 000
1
26, 28
153
Bracket, Support Lower PRV
064 48851 000
1
23, 28
155
Connr, Fla M X M 3/8 Od Fla
023 20853 000
1
26, 28
158
Seal, Double Shaft
029 22429 000
1
23, 27
158A
C-ring, Replacement Shaft Seal
028 14493 000
1
23, 27
159
Elbow, Flare Hydraulic 3/8 Od
023 18969 000
1
26
160
Tube, Shaft Seal Oil Supply
064 49028 000
1
26
162
Fitting, Liquid Tight 1/2 Npt
025 28720 000
1
26
163
Bush Pipe 3/4 - 14 Npte X
023 04010 000
1
26
164
Tube, High speed Sol H 65-90
064 49047 000
1
26
165
Tube, .50 Lg +/- .03 X 1/4 Od X
064 49229 000
1
26
168
Nut, Flare Hydraulic 3/8 Od
023 09673 000
3
26
169
Sleeve, Flare Hydraulic 3/8 Od
023 10001 000
3
26
†
170
Seal, O-Ring Neoprene
028 12961 004
1
25
171
Elbow, Flare Hydraulic 3/8 Od
023 18920 000
2
26
172
Valve, Stop Ang Vertical
022 09578 000
1
*
173
Spacer
064 50612 000
2
25
174
Screw, Cap 122 pt hd 1/2
021 11926 000
2
25
175
Plug, PRV assembly
064 50632 000
1
23
176
Seal, O-ring neoprene
028 12961 005
1
23
177
Nut, Hex mach scr #10 - 32
021 08670 000
1
25
178
Lockwasher, hel spg #10 reg
021 05265 000
1
25
201
Impeller, 8.1 Eye Hard Coat (J3)
064 48155 001
1
23
201
Impeller, 9.0 Eye Hard Coat (J4)
064 48156 001
1
23
201
Impeller, 10.4 Eye Hard Coat (J5)
064 50394 001
1
23
202
Plate, Nozzle Base (J3)
064 50615 000
1
23
202
Plate, Nozzle Base (J4)
064 50616 000
1
23
202
Plate, Nozzle Base (J5)
064 50693 000
1
23
203
Plate, Diffuser (J3)
064 50315 000
1
23
203
Plate, Diffuser (J4)
064 50318 000
1
23
203
Plate, Diffuser (J5)
064 50414 000
1
23
