yoRk iNteRNAtioNAl

44

FoRm 180.30-Rpstl

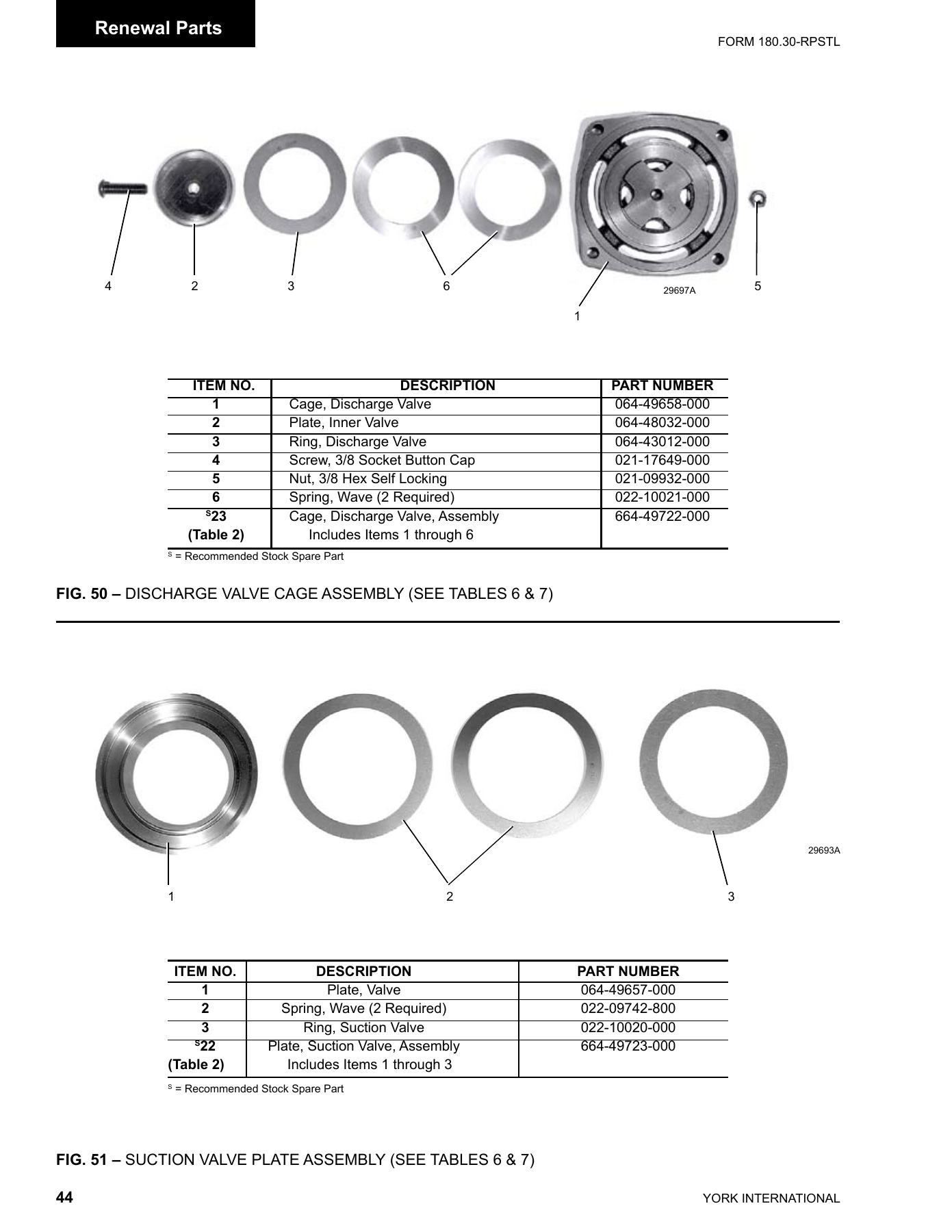

fig. 50 –

DisCHARGe VAlVe CAGe AssemBly (see tABles 6 & 7)

fig. 51 –

sUCtioN VAlVe plAte AssemBly (see tABles 6 & 7)

29697A

4

2

3

6

5

1

29693A

2

1

3

s

 = Recommended stock spare part



item no.

description

part number





1



plate, Valve

064-49657-000





2



spring, Wave (2 Required)

022-09742-800



3



Ring, suction Valve

022-10020-000





s

22



plate, suction Valve, Assembly

664-49723-000



(table 2)



   includes items 1 through 3







s

 = Recommended stock spare part



item no.

description

part number



1



Cage, Discharge Valve

064-49658-000



2



plate, inner Valve

064-48032-000



3



Ring, Discharge Valve

064-43012-000



4



screw, 3/8 socket Button Cap

021-17649-000



5



Nut, 3/8 Hex self locking

021-09932-000



6



spring, Wave (2 Required)

022-10021-000



s

23



Cage, Discharge Valve, Assembly

664-49722-000



(table 2)



     includes items 1 through 6

renewal parts

renewal parts
