K3
K3 COMPRESSOR
TABLE 14 -
PRE-ROTATION DEVICE (K3)
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
FIGURE
-
Device, PRV K3
364 51772 000
1
23
1
Ring, Vane Driving K3-4
064 51771 000
1
23
2
Vane, Pre-Rotation K3-4 (prior 2/2012)
064 51769 000
9
23
Vane, Pre-Rotation K3-4 (after 2/2012)
029 23612 000
9
23
3
Arm, PRV
064 47508 000
9
23
4
Spacer, PRV Arm K3-4
064 51652 000
9
23
5
Washer, Special PRV
064 47516 000
9
23
6
Washer, Plain 17/64 ID 1/2
021 11973 000
18
23
7
Stud, Ball 1/4-28 Unf
029 15924 000
9
23
8
Screw, Cap 12pt Hd 1/2
021 11515 000
9
23
9
Nut, Selflock 1/4-28 Unf
021 12943 000
9
23
11
Housing, PRV K3
064 51770 000
1
23
12
Bearing, Ball Deep Groove
029 25085 000
18
23
13
Spacer
064 51646 000
9
23
14
Spring, Overlap Type Wave
029 25086 000
18
23

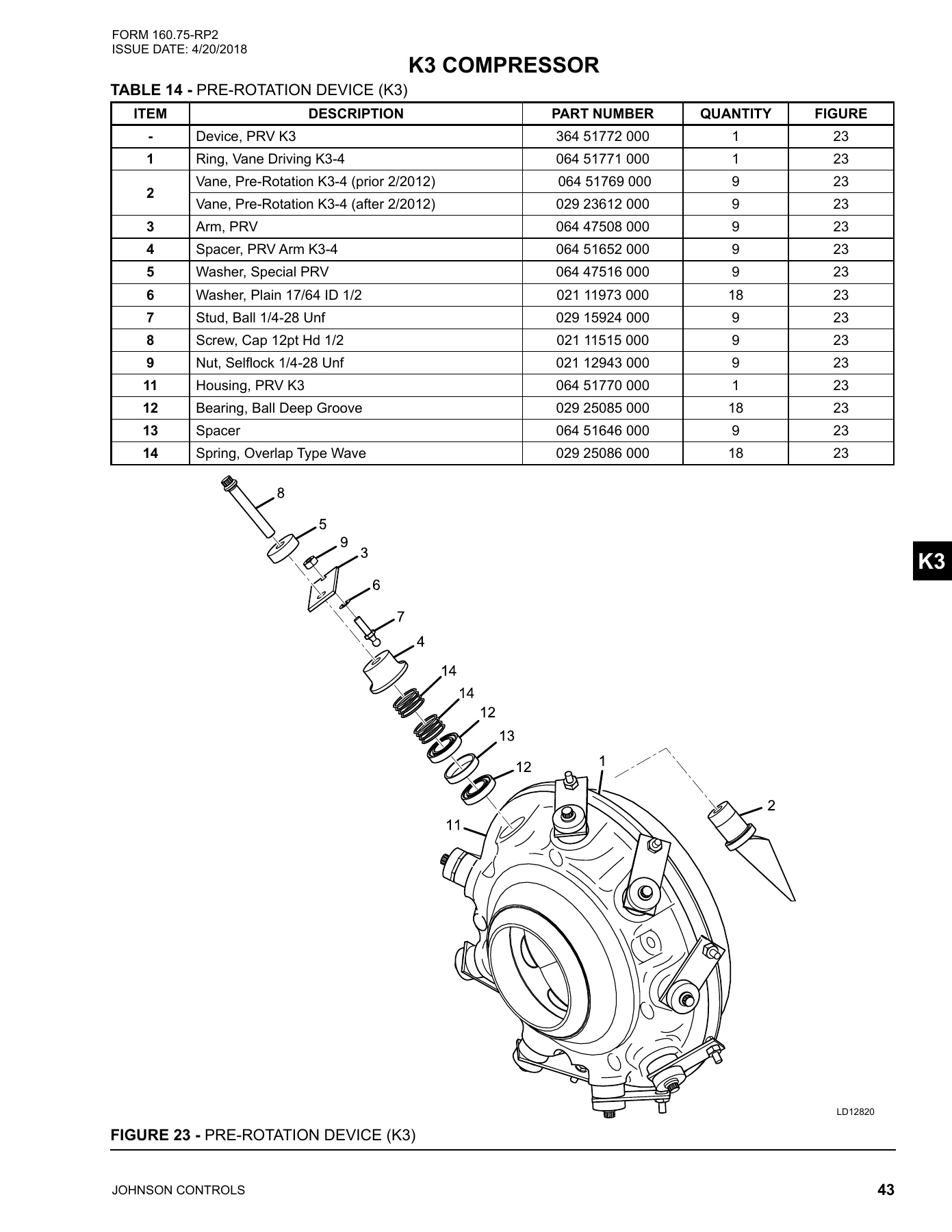

FIGURE 23 -
PRE-ROTATION DEVICE (K3)
