VARIABLE ORIFICE (P8, P9, H9 AND H9 WITH HEAT RECOVERY)
3” OPTION WITH ISOLATION VALVE
TABLE 15 -
VARIABLE ORIFICE 3" (P8, P9 & H9)
ITEM
DESCRIPTION
PART NUMBER
QUANTITY/
UNIT
FIGURE
2
Valve, Butterfly #150
022-10642-002
1
21
2A
O-ring, Neoprene 4.10 ID .210 Thk
028-12961-025
2
3
Valve, Ball S/W 2.00
022-08752-000
1
21
4
Gasket, ANSI 3-150#
028-15075-108
1
21
5
Valve, Ball
022-09757-000
1
21
6
O-ring, Neoprene .644 ID .087 THK
028-12961-004
1
21
7
Plug, Hex HD 3/4
023-18280-000
1
21
11
Actuator, Electric
025-38178-000
1
*
12
Valve, Stop Angle
022-10047-000
1
21
13
O-ring
028-12961-006
2
21
15
O-ring
028-12961-003
1
21
3” OPTION WITHOUT ISOLATION VALVE
ITEM
DESCRIPTION
PART NUMBER
QUANTITY/
UNIT
FIGURE
2
Valve, Butterfly #150
022-10642-002
1
21
2A
O-ring, Neoprene 4.10 ID .210 Thk
028-12961-025
2
5
Valve, Ball
022-09757-000
1
21
6
O-ring, Neoprene .644 ID .087 THK
028-12961-004
1
21
7
Plug, Hex HD 3/4
023-18280-000
1
21
11
Actuator, Electric
025-38178-000
1
*
12
Valve, Stop Angle
022-10047-000
1
21
13
O-ring
028-12961-006
2
21
15
O-ring
028-12961-003
1
21
NOTE:
Items with an * are NOT represented.
12
13
7
6
3
2
2
4
5
13
5
13
12
13
7
6
LD13821

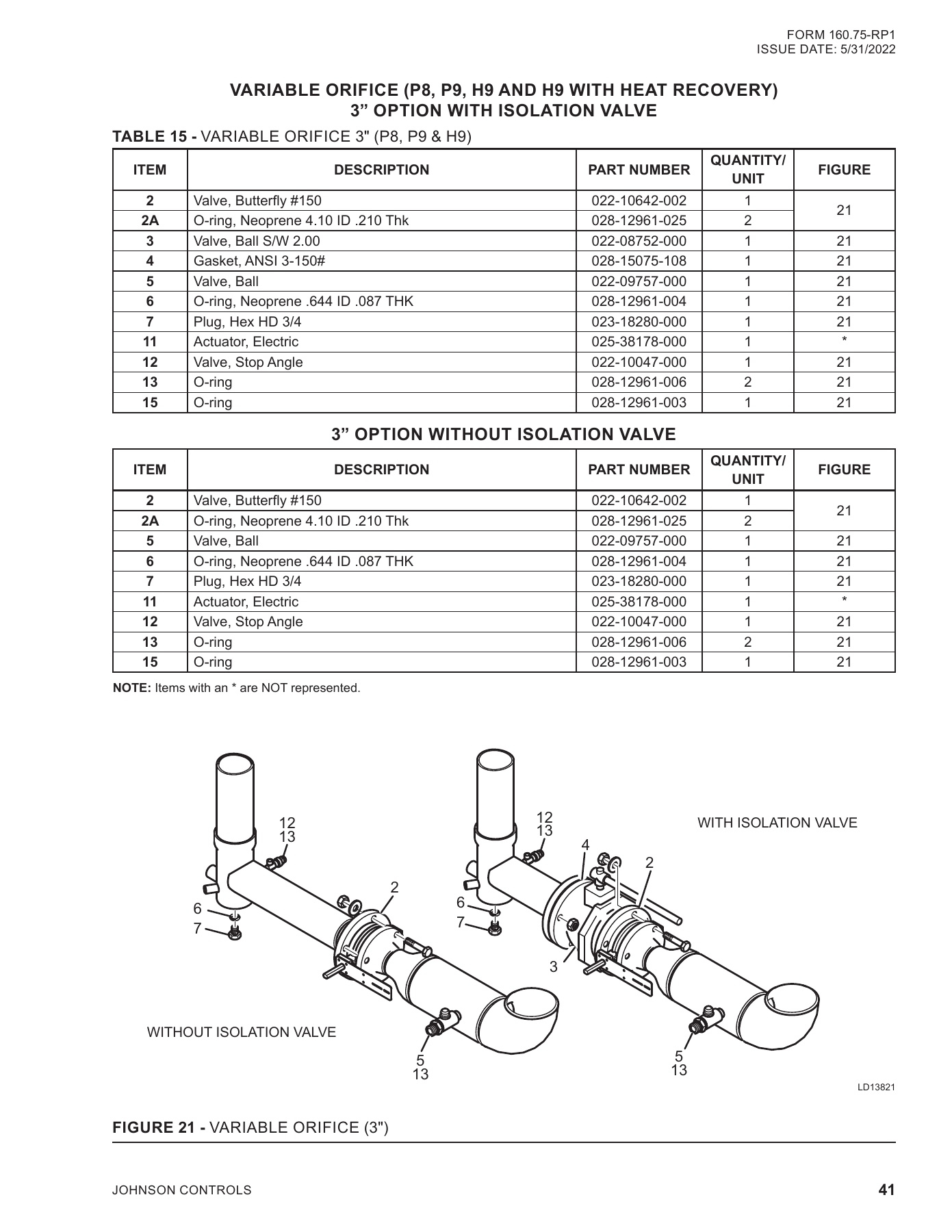

FIGURE 21 -
VARIABLE ORIFICE (3")
WITH ISOLATION VALVE
WITHOUT ISOLATION VALVE
