FORM 160.75-RP1
ISSUE DATE: 5/31/2022

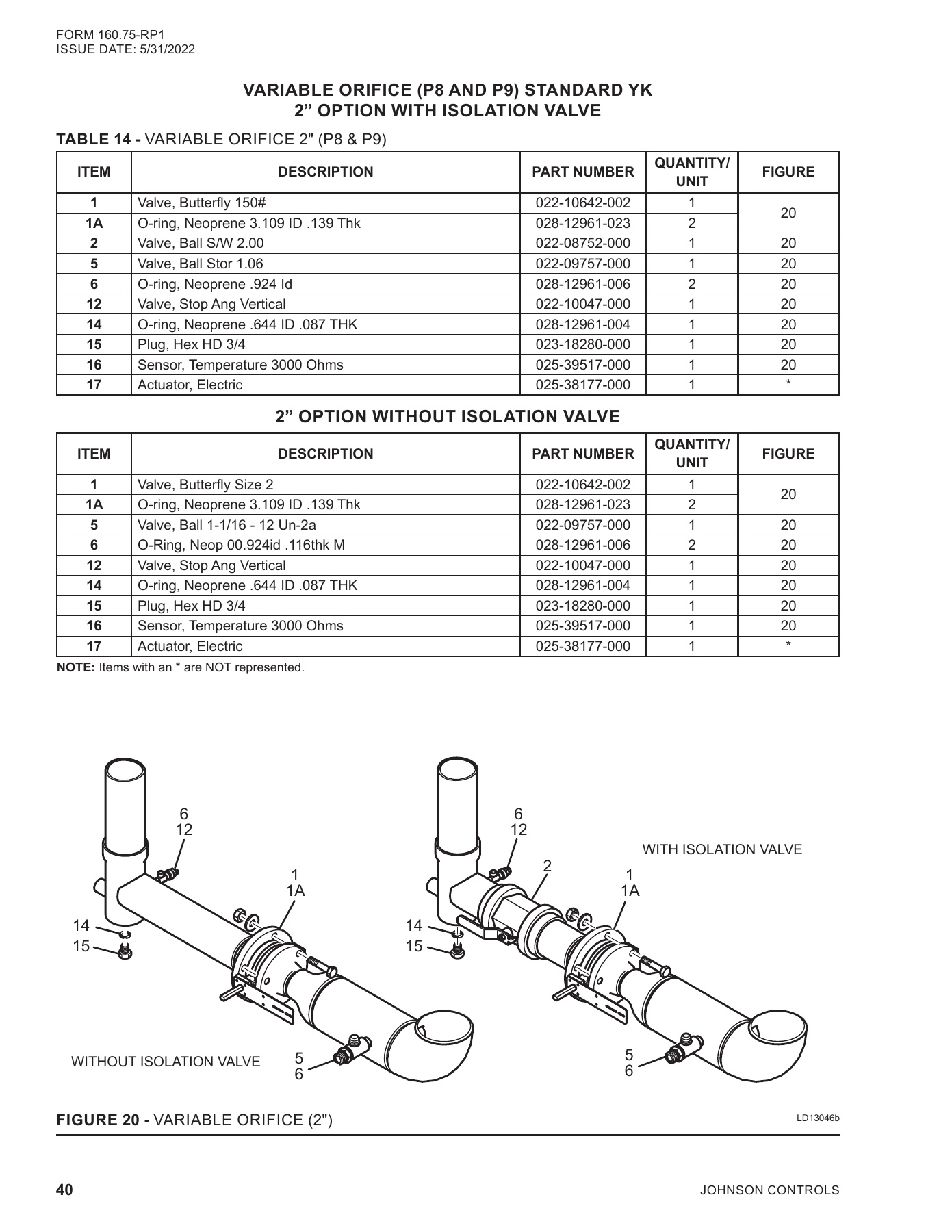

VARIABLE ORIFICE (P8 AND P9) STANDARD YK
2” OPTION WITH ISOLATION VALVE
TABLE 14 -
VARIABLE ORIFICE 2" (P8 & P9)
ITEM
DESCRIPTION
PART NUMBER
QUANTITY/
UNIT
FIGURE
1
Valve, Butterfly 150#
022-10642-002
1
20
1A
O-ring, Neoprene 3.109 ID .139 Thk
028-12961-023
2
2
Valve, Ball S/W 2.00
022-08752-000
1
20
5
Valve, Ball Stor 1.06
022-09757-000
1
20
6
O-ring, Neoprene .924 Id
028-12961-006
2
20
12
Valve, Stop Ang Vertical
022-10047-000
1
20
14
O-ring, Neoprene .644 ID .087 THK
028-12961-004
1
20
15
Plug, Hex HD 3/4
023-18280-000
1
20
16
Sensor, Temperature 3000 Ohms
025-39517-000
1
20
17
Actuator, Electric
025-38177-000
1
*
2” OPTION WITHOUT ISOLATION VALVE
ITEM
DESCRIPTION
PART NUMBER
QUANTITY/
UNIT
FIGURE
1
Valve, Butterfly Size 2
022-10642-002
1
20
1A
O-ring, Neoprene 3.109 ID .139 Thk
028-12961-023
2
5
Valve, Ball 1-1/16 - 12 Un-2a
022-09757-000
1
20
6
O-Ring, Neop 00.924id .116thk M
028-12961-006
2
20
12
Valve, Stop Ang Vertical
022-10047-000
1
20
14
O-ring, Neoprene .644 ID .087 THK
028-12961-004
1
20
15
Plug, Hex HD 3/4
023-18280-000
1
20
16
Sensor, Temperature 3000 Ohms
025-39517-000
1
20
17
Actuator, Electric
025-38177-000
1
*
NOTE:
Items with an * are NOT represented.
6
12
1
1A
5
6
5
6
14
15
14
15
6
12
1
1A
2
LD13046b
FIGURE 20 -
VARIABLE ORIFICE (2")
WITH ISOLATION VALVE
WITHOUT ISOLATION VALVE
