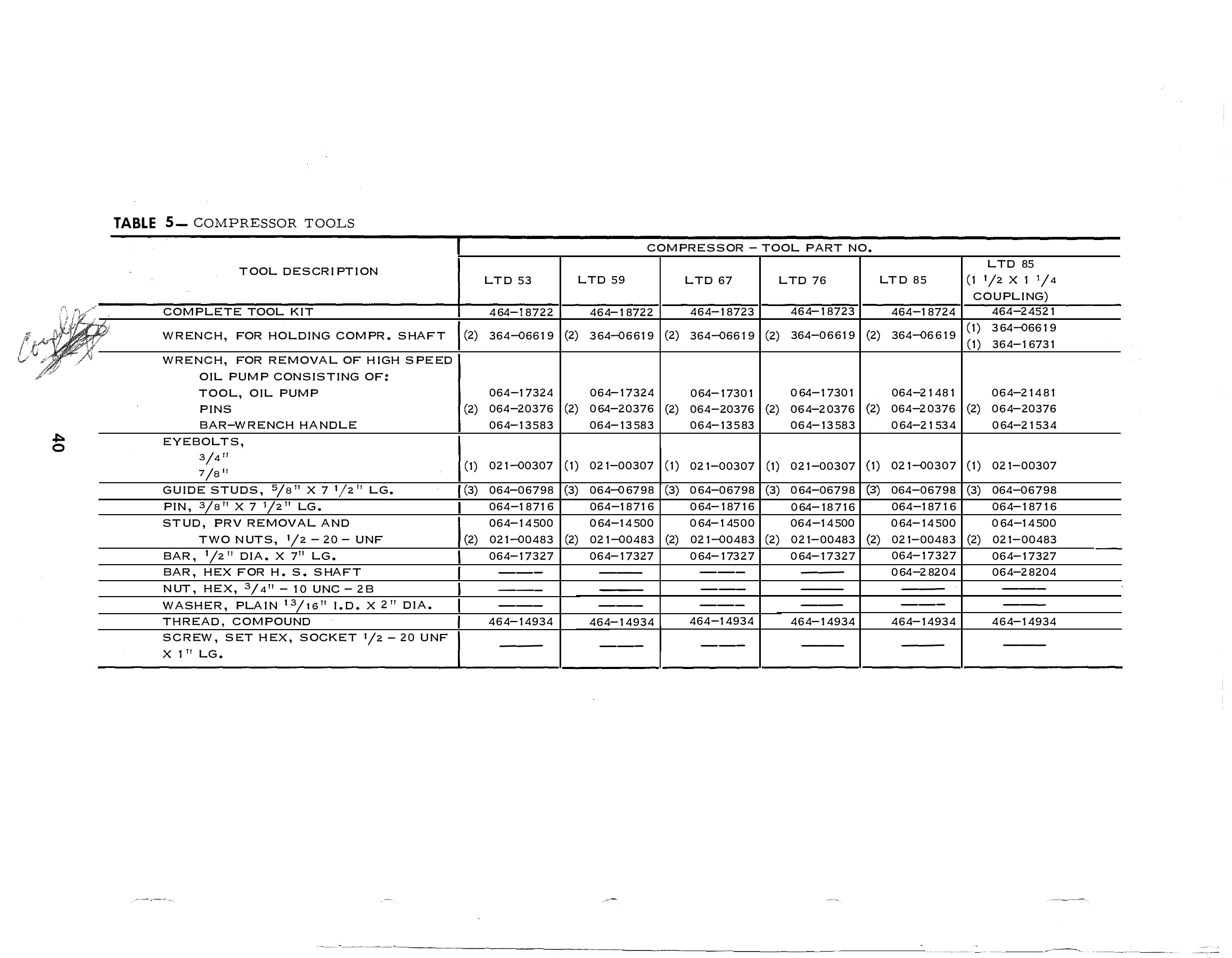

TABLE 5-
COMPRESSOR TOOLS
COMPRESSOR - TOOL PART NO.
TOOL DESCRIPTION
LTD 85
LTD 53
LTD 59
LTD 67
LTD 76
LTD 85
(1 1/2 X 1 1/4
COUPLING)
COMPLETE TOOL KIT
464-18722
464-18722
464-18723
464-18723
464-18724
464-24521
�
WRENCH, FOR HOLDING COMPR. SHAFT
(2) 364--06619 (2) 364--06619 (2)
(2) 364-06619 (2) 364--06619
(1) 364--06619
364--06619
(1) 364-16731
WRENCH, FOR REMOVAL OF HIGH SPEED
OIL PUMP CONSISTING OF:
TOOL, OIL PUMP
064-17324
064-17324
064-17301
064-17301
064-21481
064-21481
PINS
(2) 064-20376 (2) 064-20376 (2) 064-20376 (2) 064-20376 (2) 064-20376 (2) 064-20376
BAR-WRENCH HANDLE
064-13583
064-13583
064-13583
064-13583
064-21534
064-21534
EYEBOLTS,
3/4
TI
(1) 021--00307 (1) 021-00307 (1) 021-00307 (1) 021-00307 (1) 021--00307 (1) 021-00307
7/s"
GUIDE STUDS, 5/s" X 71/2" LG.
(3) 064-06798 (3) 064--06798 (3) 064-06798 (3) 064-06798
(3)
064-06798 (3) 064-06798
PIN, 3/s" X 7 1/2" LG.
064-18716
064-18716
064-18716
064-18716
064-18716
064-18716
STUD, PRV REMOVAL AND
064-14500
064-14500
064-14500
064-14500
064-14500
064-14500
TWO NUTS, 1/2 - 20 - UNF
(2) 021--00483 (2) 021--00483 (2) 021--00483 (2) 021-00483 (2) 021-00483 (2) 021-00483
BAR, 1/2" DIA. X 7" LG.
064-17327
064-17327
064-17327
064-17327
064-17327
064-17327
BAR, HEX FOR H. S. SHAFT
---
---
---
---
064-28204
064-28204
NUT, HEX, 3/4" - 10 UNC - 2B
---
---
---
---
---
---
WASHER, PLAIN 13/16" I.D. X 2
11
DIA.
---
---
---
---
---
---
THREAD, COMPOUND
464-14934
464-14934
464-14934
464-14934
464-14934
464-14934
SCREW, SET HEX, SOCKET 1/2 - 20 UNF
---
---
---
---
---
---
X 1
TT
LG.
