JOHNSON CONTROLS
36
FORM 160.76-RP1
ISSUE DATE: 10/9/2015
ITEM
DESCRIPTION
PART NUMBER
SAP
FIGURE
122
Harness Control Panel To SSS
5147880
20,22
122-4
Term Pin 20-14 Awg
025-20533-000
737561
19
122-5
Wire 3 Condtr W/Foil Shield
025-28701-003
144750
19
122-6
Harness Ov Panel To Drive Fiber Com YK H
392-15739-382
5147840
19
Braided Tube, Flexible
025-46171-000
5147834
Fiber Optic Cable
025-46501-000
5147835
122-7
Conduit Elec Flex 3/4 Liquid
025-31307-001
738591
19
122-8
Connr, Conduit Flex Angle
025-31317-001
144733
19
122-9
Hsg Connr Plug Mini 3 Ckt Nat
025-29185-000
62736
19
122-10
Contact Socket Mini Universal
025-28386-000
737925
19
123
Connr, Conduit Flex Angle
025-31317-001
144733
20
151
Harness Adapter Sys Wrg Without VGD
392-31775-001
5147868
*
Harness Adapter Sys Wrg With VGD
392-31774-001
5147867
151-2
Term Pin Wire Range 20-14
025-22214-000
144768
*
151-3
Cont Soc Wire Range 20-14
025-22215-000
62701
*
151-4
Cont Soc Awg Wire Size 20
025-19673-000
737536
*
151-6
Wire Elec 18 Awg Grn/Yel Per
025-34025-000
738981
22
151-7
Hsg Connr Electrical Plug
025-19670-000
737533
22
151-8
Connector Receptacle Cap 15 R=5 6.35Mm
025-20788-000
737570
22
151-9
Connector Plug 15 R=5 6.35Mm
025-20918-000
737623
22
151-10
Hsg Connr Electrical Cap
025-20963-000
737627
22
151-11
Hsg Connr Electrical Cap
025-21191-000
737645
22
151-14
Term Wire 22-16 Awg
025-19408-000
737521
22
152
Harness Assy Sys Wrg Q Compr Without VGD
392-31773-001
5147866
*
Harness Assy Sys Wrg YK H Q Compr With VGD
392-31772-001
5147865
152-1
Plate Cover Control Panel
025-39475-201
739634
20,23
152-2
Harness Thrust Probe To Control Panel
392-31794-055
5147878
20
Conduit Flexible Id=3/8In Id=.445In Ps
025-31302-001
738588
Connr, Conduit Flex Straight 3/8" Adapta
025-31309-001
265735
Connector Din 43650
025-34047-000
738987
Wire Elec 18 Awg Black
025-08913-000
588753
Wire Elec 18 Awg Grn/Yel Per
025-34025-000
738981
Term Pin Wire Range 20-14
025-22214-000
144768
152-3
Hsg Connr Electrical Cap
025-20963-000
737627
23
152-4
Plug Thd Id= Hd=16.000Mm Ps
025-31400-000
144735
23
152-5
Harness VGD Motor To Control Panel YK H
392-31795-058
5147879
20,23
Conduit Elec Flex 1/2 Liquid
025-30473-001
738505
Connr. Conduit Flex Straight 1/2 Swivel
025-37868-000
739487
Connector Plug Hsg, 9 Pos
025-38172-000
118000
Wire Elec 18 Awg Black
025-08913-000
588753
Wire Elec 18 Awg White
025-12729-000
144788
Cont Soc Awg Wire Size 18-14
025-37875-000
739491
Term Pin Wire Range 20-14
025-22214-000
144768
152-6
Connr, Conduit Flex Angle
025-31315-001
144730
23

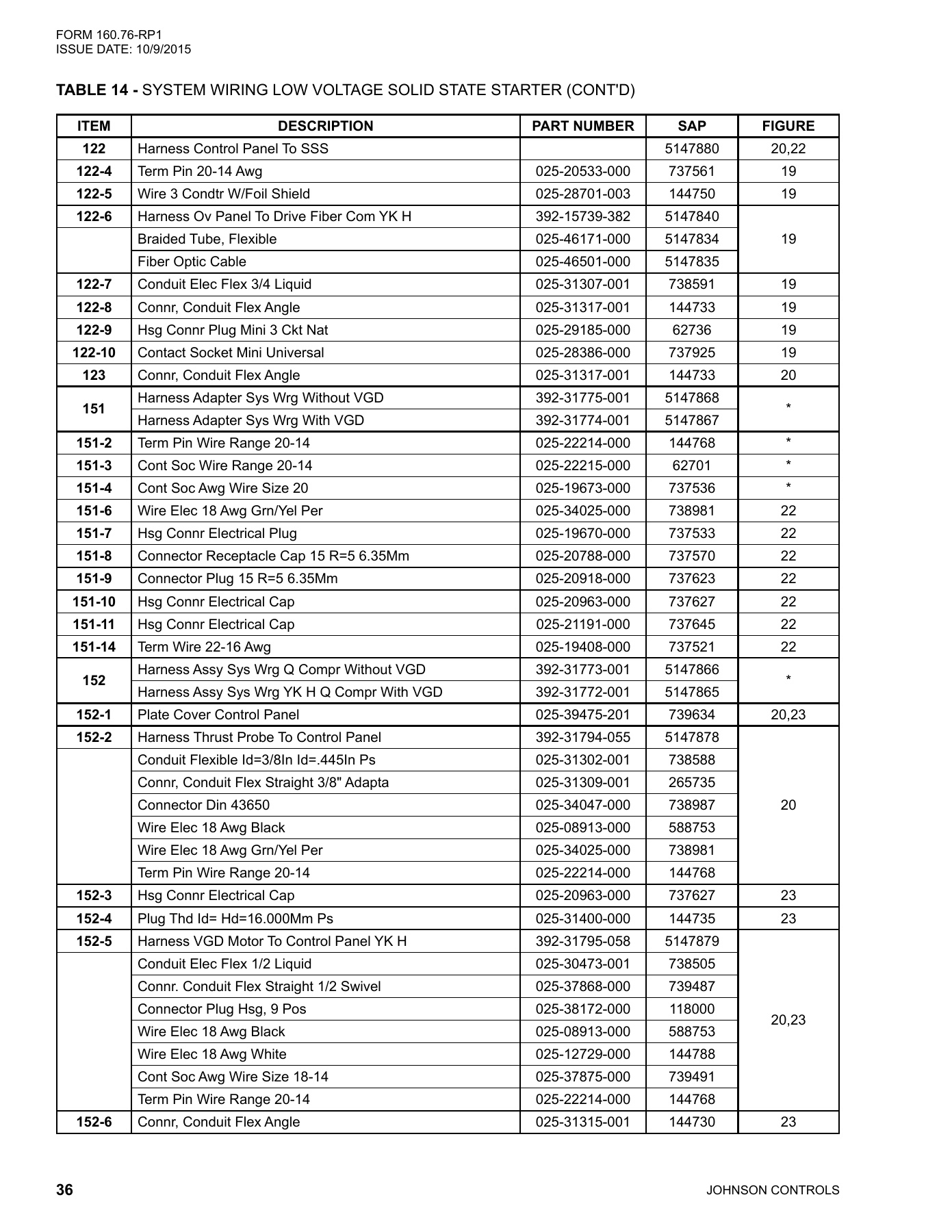

TABLE 14 -
SYSTEM WIRING LOW VOLTAGE SOLID STATE STARTER (CONTD)
