JOHNSON CONTROLS
36
FORM 160.69-RP3
ISSUE DATE: 5/20/2022
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
98
Hhcs, 0.375-16 X 2.500 Gr 5 Bl
021 10037 000
16
16
101
Tube, .50 Lg +/- .03 X 1/4 Od X
064 49229 000
1
17
102
Tube, H.S. Sol
064 49044 000
1
17
*103
Bearing, L.S. Thrust
029 23760 000
1
16
104
Valve, Stop Ang Vertical
022 09578 000
1
*
105
Screw, Cap Hex Soc Hd 1/4
021 02578 000
16
16
106
Tube, Shaft Seal Oil Supply
364 51755 000
1
17
108
Pin, Slot Spg 3/16 X 1/2
029 04138 000
1
16
109
Screw, Cap Hex 3/8 -16unc
021 09071 000
4
16
†110
Seal, O-Ring Molded 37.050 Id
028 15083 000
1
16
111
Fillpiece, Pretot Device
064 47935 000
1
18
112
Screw, Cap 12pt Hd 3/8
021 11956 000
1
18
114
Strap, Cable T&B L4-18-9-M
025 18167 000
1
17
115
Tee, Instm Union 3/8 Tube
023 10595 000
1
17-19
116
Tube, H.S.Tee
064 48215 000
1
17
†117
Seal, O-Ring Spliced 19.719 Id
028 12227 000
1
16
†118
Seal, O-Ring 4-1/4 Id X 4-1/2
028 12259 000
1
16
†119
Seal, O-Ring Spliced 31.174 Id
028 15072 000
1
16
120
Screw, Cap Hex 1/4 -20unc
021 16826 000
6
16
121
Screw, Cap Hex 3/8 -16unc
021 14374 000
13
16
†123
Seal, O-Ring 3-3/4 Id X 3-15/16
028 15074 000
2
16
124
Seal, O-Ring Neoprene
028 12961 006
1
17
124
Seal, O-Ring Neoprene
028 12961 000
1
17
125
Lever, Internal VGD
064 51215 000
1
16
130
Screw, Cap 12pt Hd 5/16
021 11142 000
2
20
131
Arm, Motor
064 50856 000
1
20
132
Screw, Cap 12 Pt Hd 1/2
021 11926 000
4
20
133
Screw, Cap 12 Pt Hd 1/2
021 31600 000
1
20
134
Nut, Hex Mach Scr #10 - 32
021 08670 000
4
19
135
Lockwasher, Hel Spg #10 Reg
021 05265 000
2
20
136
Screw, Cap Hex Soc Hd #10-32
021 31182 000
2
20
137
Dowel, Pin Str
029 24130 000
2
20
138
Plug, PRV Assembly
064 50632 000
2
20
†139
Seal, O-Ring Neoprene
028 12961 005
2
20
†139
Seal, O-Ring Neoprene
028 12961 000
2
20
†140
Seal, O-Ring 8.234 Id X
028 15078 000
1
20
141
Fillpiece, Pre-Rotation Device
064 50765 000
1
20
142
Plate, Cover Handhole
064 50139 000
1
19
143
Screw, Cap 12 Pt Head 3/8
021 17553 000
1
20
144
Screw, Cap 12 Pt Hd 1/2
021 31125 000
1
20
145
Plug, Hex Hd 9/16
023 18962 000
6
20
†146
Seal, O-Ring Neoprene
028 12961 003
11
20
* Included in Bearing Kit † Included in O-Ring Kit

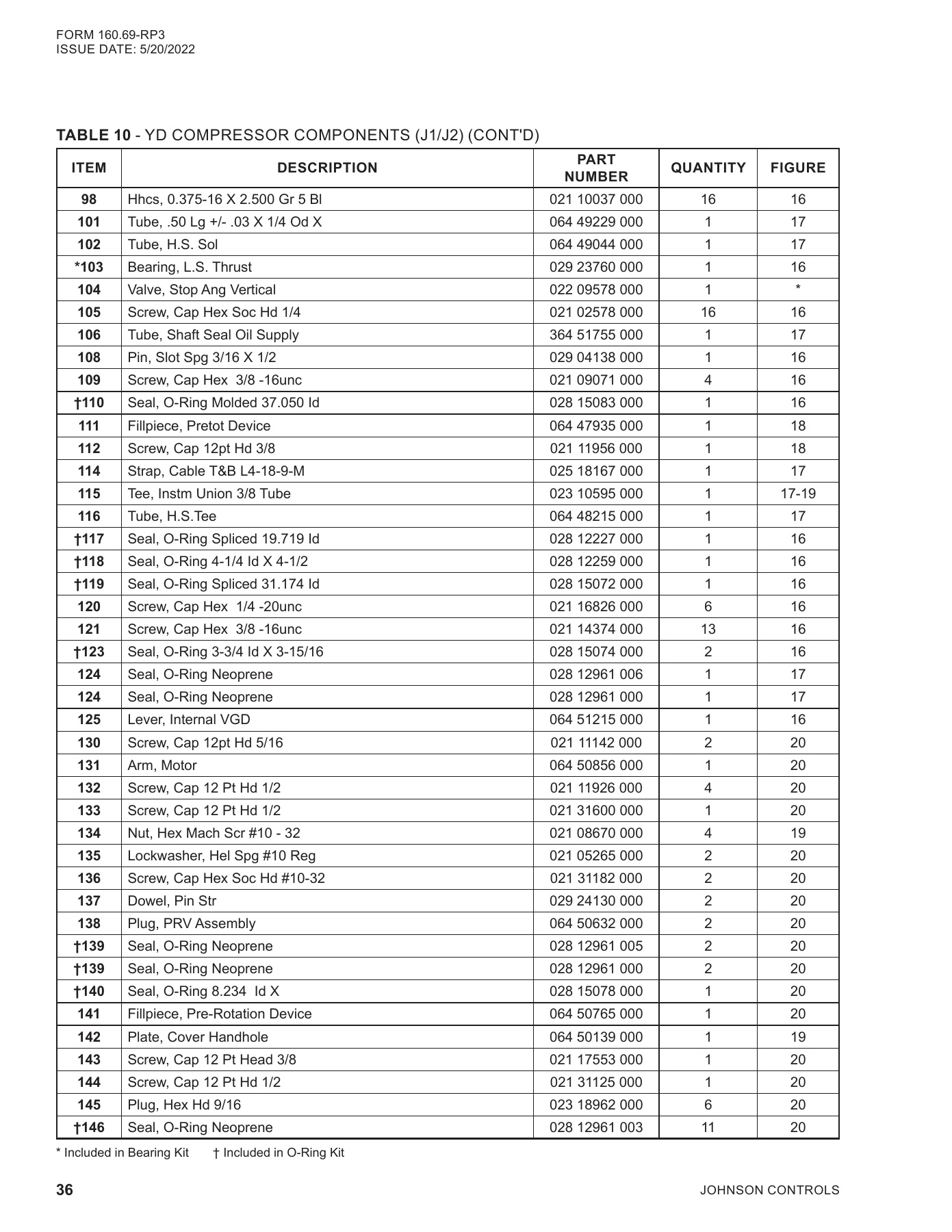

TABLE 10
- YD COMPRESSOR COMPONENTS (J1/J2) (CONTD)
