ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
147
Link, External VGD
064 50951 000
1
20
148
Plug, Hex Hd 3/4
023 18280 000
2
20
†149
Seal, O-Ring Neoprene
028 12961 004
4
19
151
Shaft, Control PRV Device
364 51220 000
1
19
152
Bushing, Garlock 16du12
029 24100 000
1
20
153
Screw, Cap 12pt Hd 5/16
021 12202 000
1
20
154
Spacer, Hah, Hg - 65-73 VGD
064 51050 000
1
*
155
Tube, L.S. Oil Drain
064 51221 000
1
20
156
Tube, Oil Drain
064 51224 000
1
20
157
Elbow, Cinch 90 Deg 1/2 Od Tube
023 17687 000
1
20
158
Tee, Cinch 1/2 Tube X 1/2 Tube
023 22396 000
1
19
159
Reducer, Cinch 1/2 X 3/8 Od
023 22397 000
1
*
160
Connr, Cinch 1/2 Od Tube X
023 18044 000
1
*
161
Tube, 3/8 Od X .049 X 1-1/2 Lg
064 51463 000
1
*
163
Washer, Plain 9/32 Id X 5/8 Od
021 05165 000
4
*
201
Impeller, 6.5 Eye Hard Coat (J1)
064 50398 001
1
16
201
Impeller, 7.3 Eye Hard Coat (J2)
064 50399 001
1
16
202
Plate, Nozzle Base (J1)
064 50249 000
1
16
202
Plate, Nozzle Base (J2)
064 50793 000
1
16
203
Plate, Diffuser (J1)
064 50400 000
1
16
203
Plate, Diffuser (J2)
064 50401 000
1
16
204
Device, PRV (J1)
364 51450 001
1
16
204
Device, PRV (J2)
364 51450 002
1
16
205
Washer, Spring (J1)
064 50323 000
1
16
205
Washer, Spring (J2)
064 50324 000
1
16
206
Ring, Eye Seal (J1)
064 50341 000
1
16
206
Ring, Eye Seal (J2)
064 50406 000
1
16
207
Retainer, Eye Seal (J1)
064 50252 000
1
16
207
Retainer, Eye Seal (J2)
064 50326 000
1
16
208
Scroll, Rotor (J1/J2)
064 50790 000
1
16
209
Ring, Balance Piston Seal (J1)
064 50402 000
1
16
209
Ring, Balance Piston Seal (J2)
064 50403 000
1
16
210
Retainer, Eye Seal Washer (J1)
064 50321 000
1
16
210
Retainer, Eye Seal Washer (J2)
064 50322 000
1
16
-
Bearing Kit, Compressor (J1/J2)
464 50724 000
-
*
-
O-Ring Kit, Compressor (J1/J2)
464 51842 000
-
*
-
Tool Kit, Compressor (J1/J2)
364K48026 000
-
*
* Included in Bearing Kit
† Included in O-Ring Kit

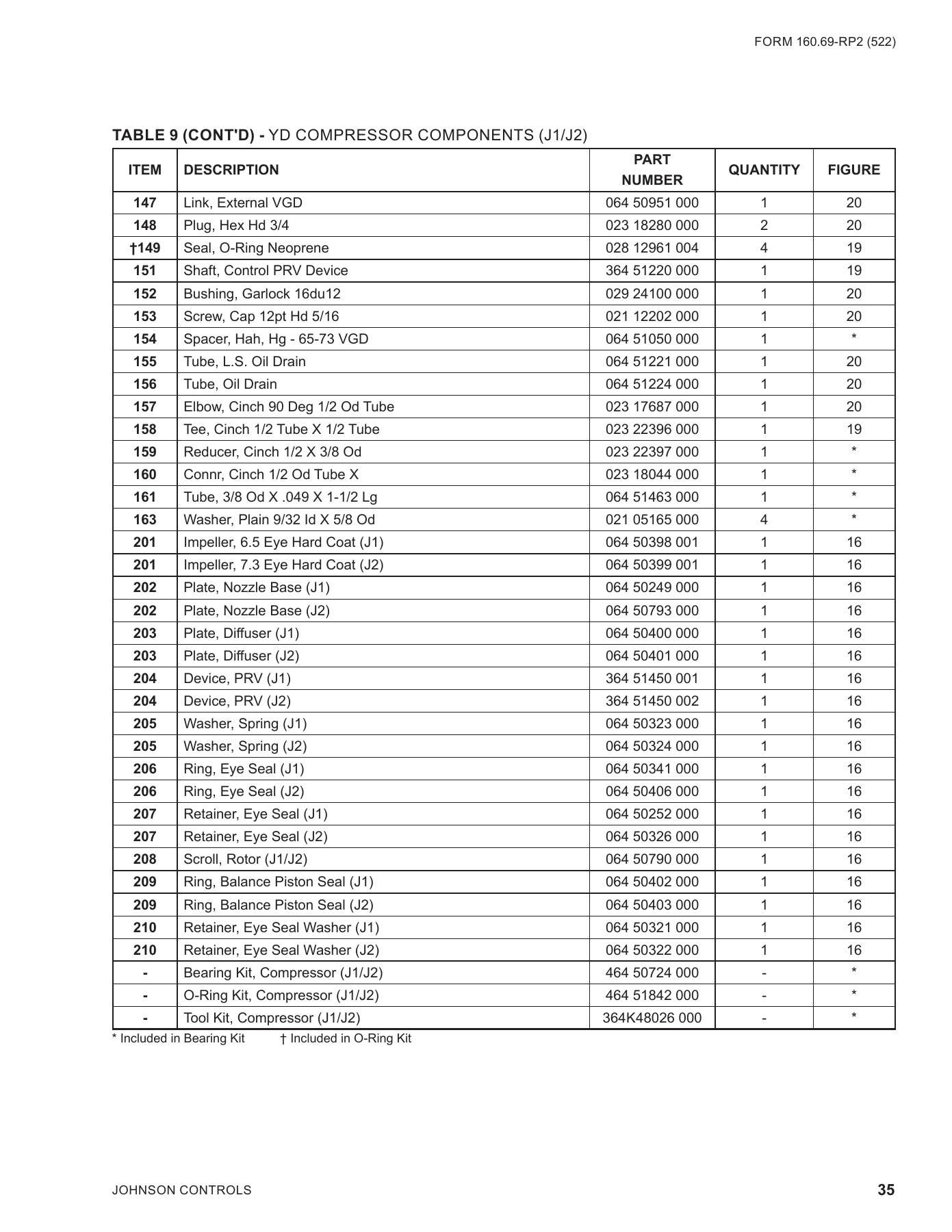

TABLE 9 (CONTD) -
YD COMPRESSOR COMPONENTS (J1/J2)
