ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
†51
Seal, O-Ring 2-9/16 Id X 2-3/4
028 11976 000
3
16
†52
Seal, O-Ring Neoprene
028 12961 001
1
16, 17
53
Elbow, Flare Hydraulic 3/8 Od
023 18920 000
3
18
54
Spacer, Flanged, PRV & VGD
064 50612 000
4
18
55
Fillpiece, Prerot Device
064 10821 000
2
18
57
Screw, Cap 12 Pt Hd 1/2
021 11998 000
1
18
58
Screw, Cap 12 Pt Hd 1/2
021 11515 000
3
16
59
Screw, Cap 12pt Hd 3/8
021 17618 000
2
18
60
Bracket, Support Lower PRV (J1)
064 48851 000
1
16, 18
60
Bracket, Support Lower PRV (J2)
064 48850 000
1
16, 18
61
Screw, Cap 12 Pt Hd 1/4
021 11505 000
3
16
62
Tube, Tee-Drain
064 51462 000
1
17
65
Washer, Plain Clipped Hardened
021 17593 000
40
17
66
Screw, Cap 12pt Hd 5/8
021 11553 000
38
17
67
Screw, Cap Flat Soc Hd 3/8
021 13856 000
2
16
68
Connr, Cinch 3/8 Tube X
023 06801 000
2
16
69
Screw, Cap Hex 3/8 -16unc
021 01477 000
2
16
71
Hhcs, 0.375-16 X 2.000 Gr 5 Bl
021 01510 000
3
16
72
Plate, Mtg
064 47998 000
1
16
73
Header, Spray
064 48003 000
1
16
74
Screw, Set Hex Soc Cup Pt
021 03910 000
1
18
75
Washer, Plain 13/32 Id X 13/16
021 01274 000
2
16
76
Plug, Hex Hd 1-5/16
023 18282 000
1
16
†77
Seal, O-Ring Neoprene
028 12961 008
1
16
78
Screw, Set Hex Soc Cup Pt
021 00774 000
1
16, 19-20
79
Lockwasher, Hel Spg 1/4 Reg
021 05267 000
2
18
81
Nut, Hex 1/4 - 20 Unc-2b
021 00450 000
6
18
82
Pin, Dowel Tapped 3/8 Dia
029 18459 000
3
16
83
Hhcs, 0.250-20 X 1.250 Gr 5 Bl
021 01392 000
4
16, 18
84
Screw, Shoulder Soc Hd
021 17557 000
6
16
†85
Seal, O-Ring .301 Id X .064
028 12209 000
1
17
†86
Seal, O-Ring 5/16 Id X
028 12513 000
2
16
87
Gasket, 2-1/2 Od X 2 Id X 1/32
064 47751 000
2
19-20
88
Conn, Oil Drain Hg 65-73
364 50633 000
1
16
89
Valve, Check Oil 1/8 Npte
022 04444 000
1
16
91
Seal, Double Shaft (J1)
029 22428 001
1
16
91
Seal, Double Shaft (J2)
029 22428 000
1
16
91A
C-Ring, Replacement For Shaft Seal
028 14492 000
1
16
†92
Seal, O-Ring 5-5/8 Id X 5-7/8
028 12258 000
1
16
93
Tube, Gear Cooling
064 51249 000
1
16
†94
Seal, O-Ring 1-1/8 Id X 1/8
028 12200 000
4
18, 20
96
Plug, Pipe, Flush Type Hex
023 05366 000
2
16
* Included in Bearing Kit
† Included in O-Ring Kit

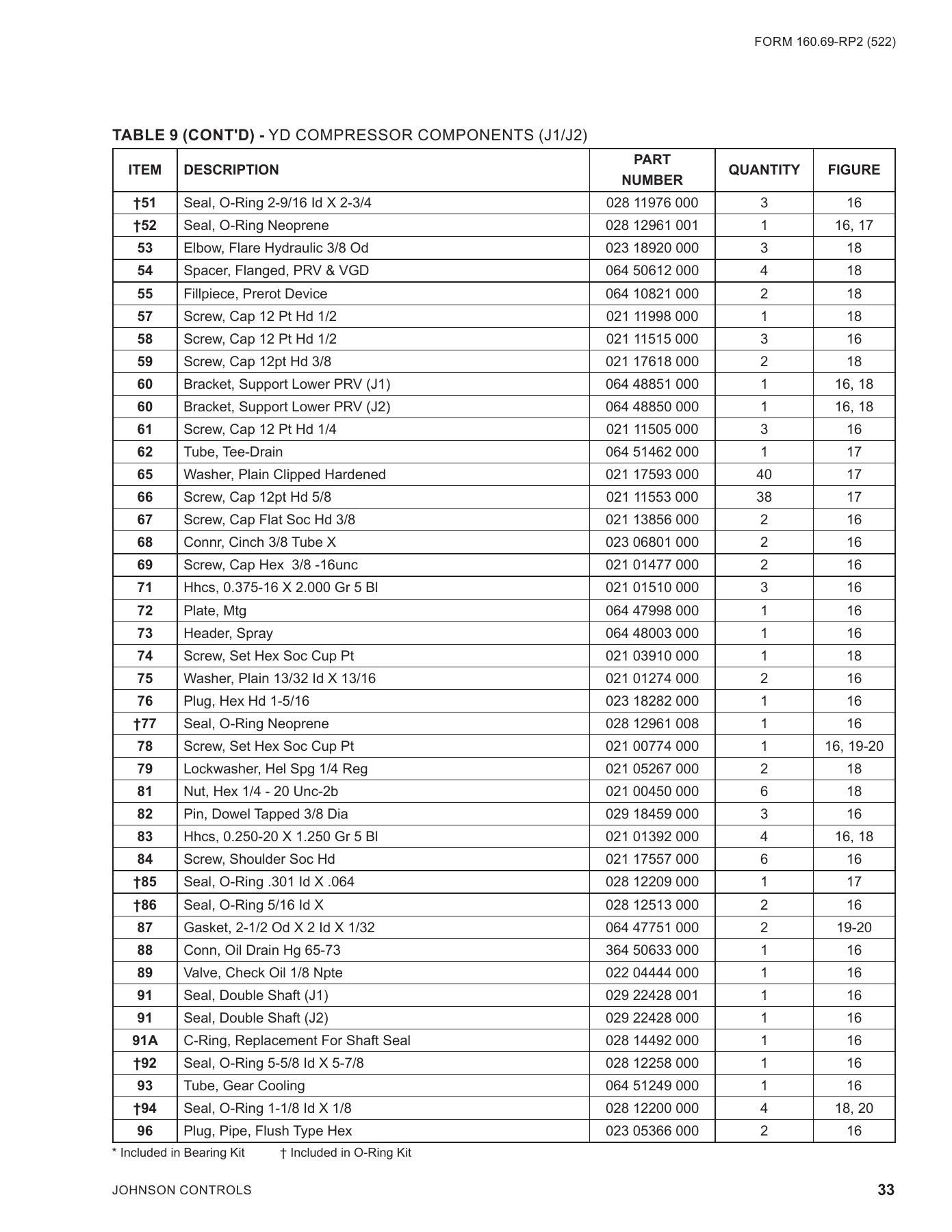

TABLE 9 (CONTD) -
YD COMPRESSOR COMPONENTS (J1/J2)
