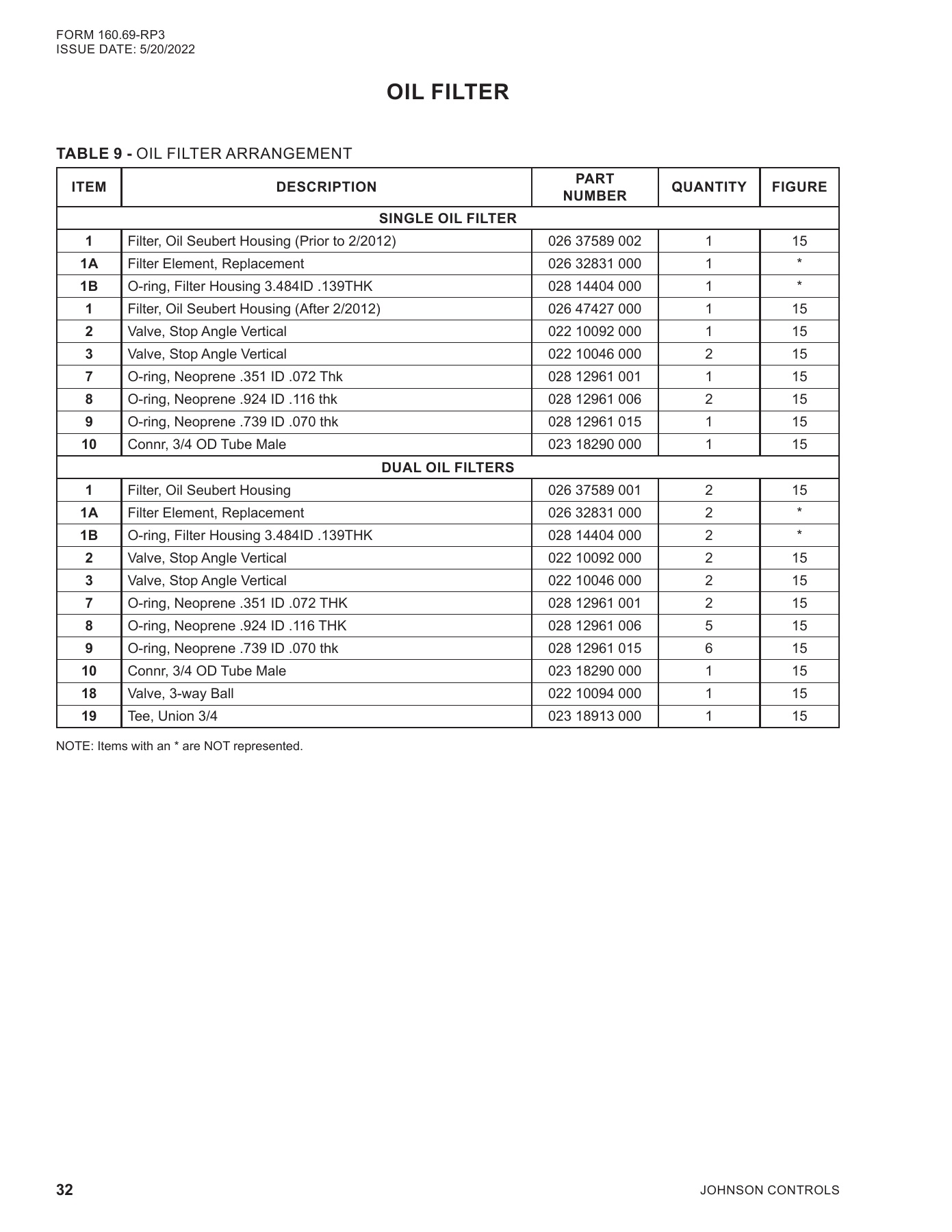

TABLE 9 -
OIL FILTER ARRANGEMENT
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
SINGLE OIL FILTER
1
Filter, Oil Seubert Housing (Prior to 2/2012)
026 37589 002
1
15
1A
Filter Element, Replacement
026 32831 000
1
*
1B
O-ring, Filter Housing 3.484ID .139THK
028 14404 000
1
*
1
Filter, Oil Seubert Housing (After 2/2012)
026 47427 000
1
15
2
Valve, Stop Angle Vertical
022 10092 000
1
15
3
Valve, Stop Angle Vertical
022 10046 000
2
15
7
O-ring, Neoprene .351 ID .072 Thk
028 12961 001
1
15
8
O-ring, Neoprene .924 ID .116 thk
028 12961 006
2
15
9
O-ring, Neoprene .739 ID .070 thk
028 12961 015
1
15
10
Connr, 3/4 OD Tube Male
023 18290 000
1
15
DUAL OIL FILTERS
1
Filter, Oil Seubert Housing
026 37589 001
2
15
1A
Filter Element, Replacement
026 32831 000
2
*
1B
O-ring, Filter Housing 3.484ID .139THK
028 14404 000
2
*
2
Valve, Stop Angle Vertical
022 10092 000
2
15
3
Valve, Stop Angle Vertical
022 10046 000
2
15
7
O-ring, Neoprene .351 ID .072 THK
028 12961 001
2
15
8
O-ring, Neoprene .924 ID .116 THK
028 12961 006
5
15
9
O-ring, Neoprene .739 ID .070 thk
028 12961 015
6
15
10
Connr, 3/4 OD Tube Male
023 18290 000
1
15
18
Valve, 3-way Ball
022 10094 000
1
15
19
Tee, Union 3/4
023 18913 000
1
15
NOTE: Items with an * are NOT represented.
