MODELS  LTD85  AND LTD95

LINKAGE  - EXTERNAL  PRV

AIR  OPERATED

91--,

YORK TURBOPAK-MODEL OT

FORM  160.57-RP

_J

1 __

SEE  PAGE 42

11

10

5,6,7

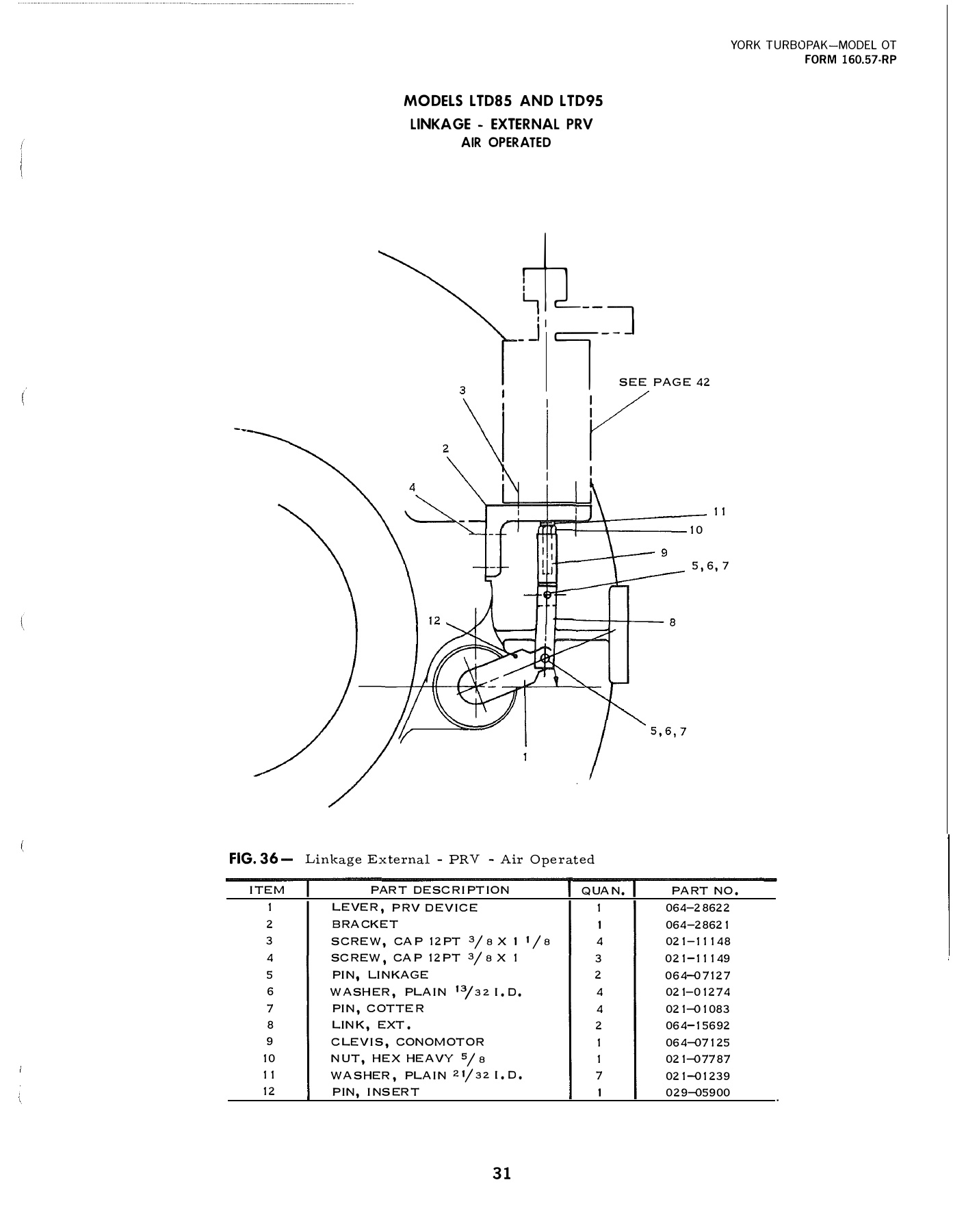

FIG. 36-

Linkage  External  - PRV  - Air  Operated

ITEM

PART  DESCRIPTION

QUAN,

PART NO,

LEVER

PRV  DEVICE

064-28622

BRACKET

064-28621

SCREW,  CAP  12PT  3/a  XI  1 /a

021-11148

SCREW

CAP  12PT  3/a  X  1

021-11149

PIN,  LINKAGE

064--07127

WASHER,  PLAIN  13/32  l,D,

021-01274

PIN,  COTTER

021--01083

LINK,  EXT,

064-15692

CLEVIS,  CONOMOTOR

064--07125

10

NUT,  HEX  HEAVY  5/a

021--07787

11

WASHER,  PLAIN  21/32  J,D,

021--01239

12

PIN,  INSERT

029--05900

31
