JOHNSON CONTROLS
30
FORM 160.75-RP1
ISSUE DATE: 5/31/2022
K1 - K4 AND K7 COMPRESSORS
OIL PUMP HOUSING (K1 - K4 AND K7 COMPRESSORS)

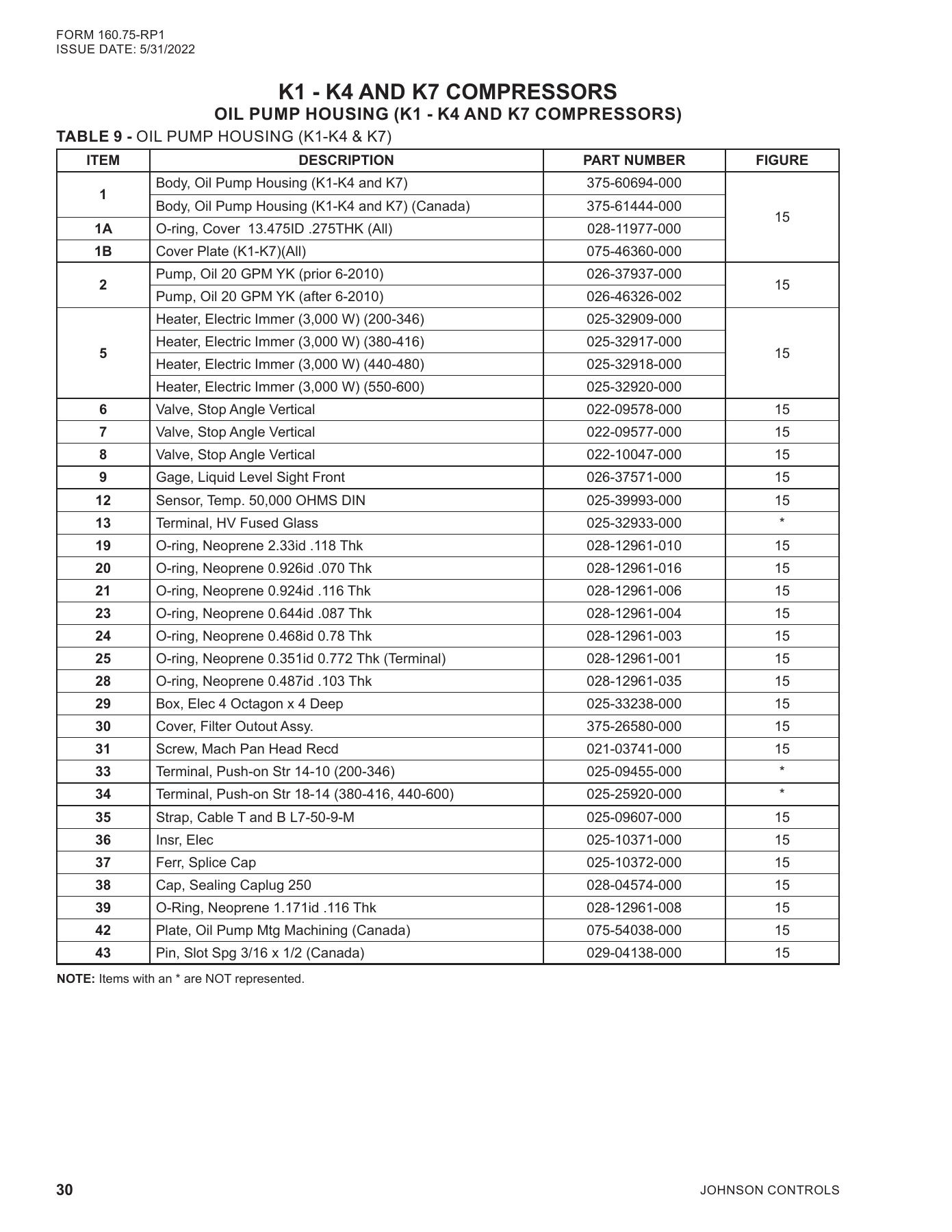

TABLE 9 -
OIL PUMP HOUSING (K1-K4 & K7)
ITEM
DESCRIPTION
PART NUMBER
FIGURE
1
Body, Oil Pump Housing (K1-K4 and K7)
375-60694-000
15
Body, Oil Pump Housing (K1-K4 and K7) (Canada)
375-61444-000
1A
O-ring, Cover 13.475ID .275THK (All)
028-11977-000
1B
Cover Plate (K1-K7)(All)
075-46360-000
2
Pump, Oil 20 GPM YK (prior 6-2010)
026-37937-000
15
Pump, Oil 20 GPM YK (after 6-2010)
026-46326-002
5
Heater, Electric Immer (3,000 W) (200-346)
025-32909-000
15
Heater, Electric Immer (3,000 W) (380-416)
025-32917-000
Heater, Electric Immer (3,000 W) (440-480)
025-32918-000
Heater, Electric Immer (3,000 W) (550-600)
025-32920-000
6
Valve, Stop Angle Vertical
022-09578-000
15
7
Valve, Stop Angle Vertical
022-09577-000
15
8
Valve, Stop Angle Vertical
022-10047-000
15
9
Gage, Liquid Level Sight Front
026-37571-000
15
12
Sensor, Temp. 50,000 OHMS DIN
025-39993-000
15
13
Terminal, HV Fused Glass
025-32933-000
*
19
O-ring, Neoprene 2.33id .118 Thk
028-12961-010
15
20
O-ring, Neoprene 0.926id .070 Thk
028-12961-016
15
21
O-ring, Neoprene 0.924id .116 Thk
028-12961-006
15
23
O-ring, Neoprene 0.644id .087 Thk
028-12961-004
15
24
O-ring, Neoprene 0.468id 0.78 Thk
028-12961-003
15
25
O-ring, Neoprene 0.351id 0.772 Thk (Terminal)
028-12961-001
15
28
O-ring, Neoprene 0.487id .103 Thk
028-12961-035
15
29
Box, Elec 4 Octagon x 4 Deep
025-33238-000
15
30
Cover, Filter Outout Assy.
375-26580-000
15
31
Screw, Mach Pan Head Recd
021-03741-000
15
33
Terminal, Push-on Str 14-10 (200-346)
025-09455-000
*
34
Terminal, Push-on Str 18-14 (380-416, 440-600)
025-25920-000
*
35
Strap, Cable T and B L7-50-9-M
025-09607-000
15
36
Insr, Elec
025-10371-000
15
37
Ferr, Splice Cap
025-10372-000
15
38
Cap, Sealing Caplug 250
028-04574-000
15
39
O-Ring, Neoprene 1.171id .116 Thk
028-12961-008
15
42
Plate, Oil Pump Mtg Machining (Canada)
075-54038-000
15
43
Pin, Slot Spg 3/16 x 1/2 (Canada)
029-04138-000
15
NOTE:
Items with an * are NOT represented.
