FORM 160.76-RP1
ISSUE DATE: 10/9/2015
JOHNSON CONTROLS
29
ITEM
DESCRIPTION
PART NUMBER
SAP
FIGURE
152-5
Harness VGD Motor To Control Panel YK H
392-31795-058
5147879
15
Conduit Elec Flex 1/2 Liquid
025-30473-001
738505
Connr. Conduit Flex Straight 1/2 Swivel
025-37868-000
739487
Connector Plug Hsg, 9 Pos
025-38172-000
118000
Wire Elec 18 Awg Black
025-08913-000
588753
Wire Elec 18 Awg White
025-12729-000
144788
Cont Soc Awg Wire Size 18-14
025-37875-000
739491
Term Pin Wire Range 20-14
025-22214-000
144768
152-6
Connr, Conduit Flex Angle
025-31315-001
144730
14
153
Harness Assy Sys Wrg Ykh Q Compr
15,17
153-1
Plate Cover Control Panel
025-39475-401
739638
17
153-2
Connector Receptacle Cap 15 R=5 6.35Mm
025-20788-000
737570
17
153-3
Plug Thd Id= Hd=16.000Mm Ps
025-31400-000
144735
17
153-4
Nut Lock For Knockout
021-18404-000
147692
17
153-5
Harness 1Sol To Control Panel Ykh
392-31789-066
5147871
15
Conduit Flexible Id=3/8In Id=.445In Ps
025-31302-001
738588
Connr, Conduit Flex Straight 3/8" Adapta
025-31309-001
265735
Connector Iso 4400/Din
025-37876-000
117987
Wire Elec 18 Awg White
025-12729-000
144788
Wire Elec 18 Awg Black
025-08913-000
588753
Term Pin Wire Range 20-14
025-22214-000
144768
153-6
Harness PRV Motor To Control Panel YK H
392-31790-033
5147872
17
Conduit Elec Flex 1/2 Liquid
025-30473-001
738505
Connr. Conduit Flex Straight 1/2 Swivel
025-37868-000
739487
Connector Plug Hsg, 9 Pos
025-38172-000
118000
Wire Elec 18 Awg Black
025-08913-000
588753
Wire Elec 18 Awg White
025-12729-000
144788
Cont Soc Awg Wire Size 18-14
025-37875-000
739491
Term Pin Wire Range 20-14
025-22214-000
144768
153-7
Harness VSOP Panel To Control Panel YK H
392-31791-039
5147873
16,17
Conduit Elec Flex 1/2 Liquid
025-30473-001
738505
Connr, Conduit Flex Angle
025-31316-001
144731
Wire Elec 18 Awg Black
025-08913-000
588753
Cont Soc Wire Range 20-14
025-22215-000
62701
Term Pin Wire Range 20-14
025-22214-000
144768
153-8
Connr, Conduit Flex Angle
025-31315-001
144730
17
153-9
Connr, Conduit Flex Angle
025-31316-001
144731
17
153-10
Harness 1Htr To Control Panel YK H
392-31792-081
5147875
15
Conduit Elec Flex 1/2 Liquid
025-30473-001
738505
Connr, Conduit Flex Angle
025-31316-001
144731
Wire Elec 14 Awg White
025-12714-000
737342
Wire Elec 14 Awg Black
025-08897-000
737229
Wire Elec 14 Awg Grn/Yel
025-29791-000
618134
Term Wire 16-14 Awg
025-19376-000
737519
Term Pin Wire Range 20-14
025-22214-000
144768

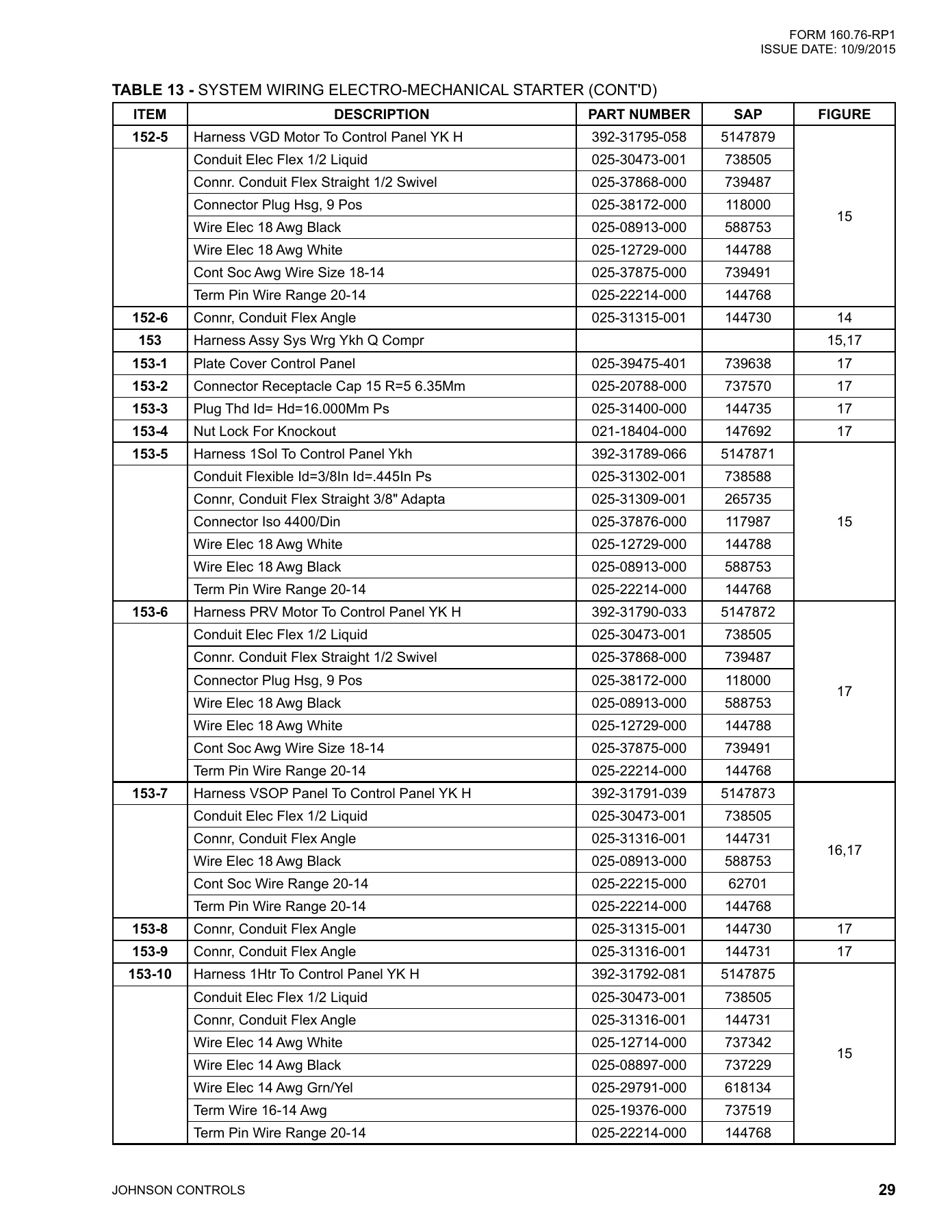

TABLE 13 -
SYSTEM WIRING ELECTRO-MECHANICAL STARTER (CONTD)
