JOHNSON CONTROLS
28
FORM 160.73-RP5 (707)

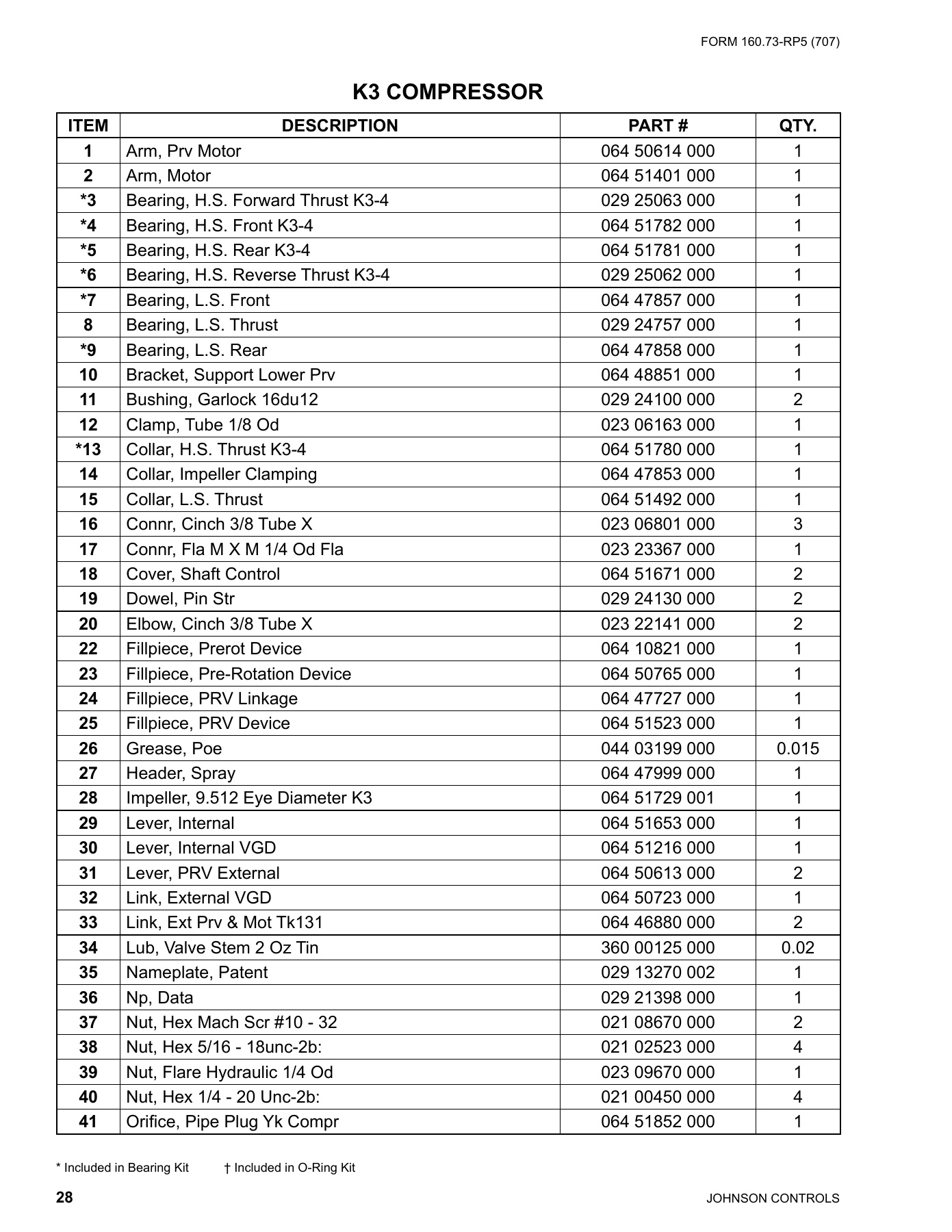

K3 COMPRESSOR
* Included in Bearing Kit
† Included in O-Ring Kit
ITEM
DESCRIPTION
PART #
QTY.
1
Arm, Prv Motor
064 50614 000
1
2
Arm, Motor
064 51401 000
1
*3
Bearing, H.S. Forward Thrust K3-4
029 25063 000
1
*4
Bearing, H.S. Front K3-4
064 51782 000
1
*5
Bearing, H.S. Rear K3-4
064 51781 000
1
*6
Bearing, H.S. Reverse Thrust K3-4
029 25062 000
1
*7
Bearing, L.S. Front
064 47857 000
1
8
Bearing, L.S. Thrust
029 24757 000
1
*9
Bearing, L.S. Rear
064 47858 000
1
10
Bracket, Support Lower Prv
064 48851 000
1
11
Bushing, Garlock 16du12
029 24100 000
2
12
Clamp, Tube 1/8 Od
023 06163 000
1
*13
Collar, H.S. Thrust K3-4
064 51780 000
1
14
Collar, Impeller Clamping
064 47853 000
1
15
Collar, L.S. Thrust
064 51492 000
1
16
Connr, Cinch 3/8 Tube X
023 06801 000
3
17
Connr, Fla M X M 1/4 Od Fla
023 23367 000
1
18
Cover, Shaft Control
064 51671 000
2
19
Dowel, Pin Str
029 24130 000
2
20
Elbow, Cinch 3/8 Tube X
023 22141 000
2
22
Fillpiece, Prerot Device
064 10821 000
1
23
Fillpiece, Pre-Rotation Device
064 50765 000
1
24
Fillpiece, PRV Linkage
064 47727 000
1
25
Fillpiece, PRV Device
064 51523 000
1
26
Grease, Poe
044 03199 000
0.015
27
Header, Spray
064 47999 000
1
28
Impeller, 9.512 Eye Diameter K3
064 51729 001
1
29
Lever, Internal
064 51653 000
1
30
Lever, Internal VGD
064 51216 000
1
31
Lever, PRV External
064 50613 000
2
32
Link, External VGD
064 50723 000
1
33
Link, Ext Prv & Mot Tk131
064 46880 000
2
34
Lub, Valve Stem 2 Oz Tin
360 00125 000
0.02
35
Nameplate, Patent
029 13270 002
1
36
Np, Data
029 21398 000
1
37
Nut, Hex Mach Scr #10 - 32
021 08670 000
2
38
Nut, Hex 5/16 - 18unc-2b:
021 02523 000
4
39
Nut, Flare Hydraulic 1/4 Od
023 09670 000
1
40
Nut, Hex 1/4 - 20 Unc-2b:
021 00450 000
4
41
Orifice, Pipe Plug Yk Compr
064 51852 000
1
