FORM 160.69-RP2 (522)
JOHNSON CONTROLS
28

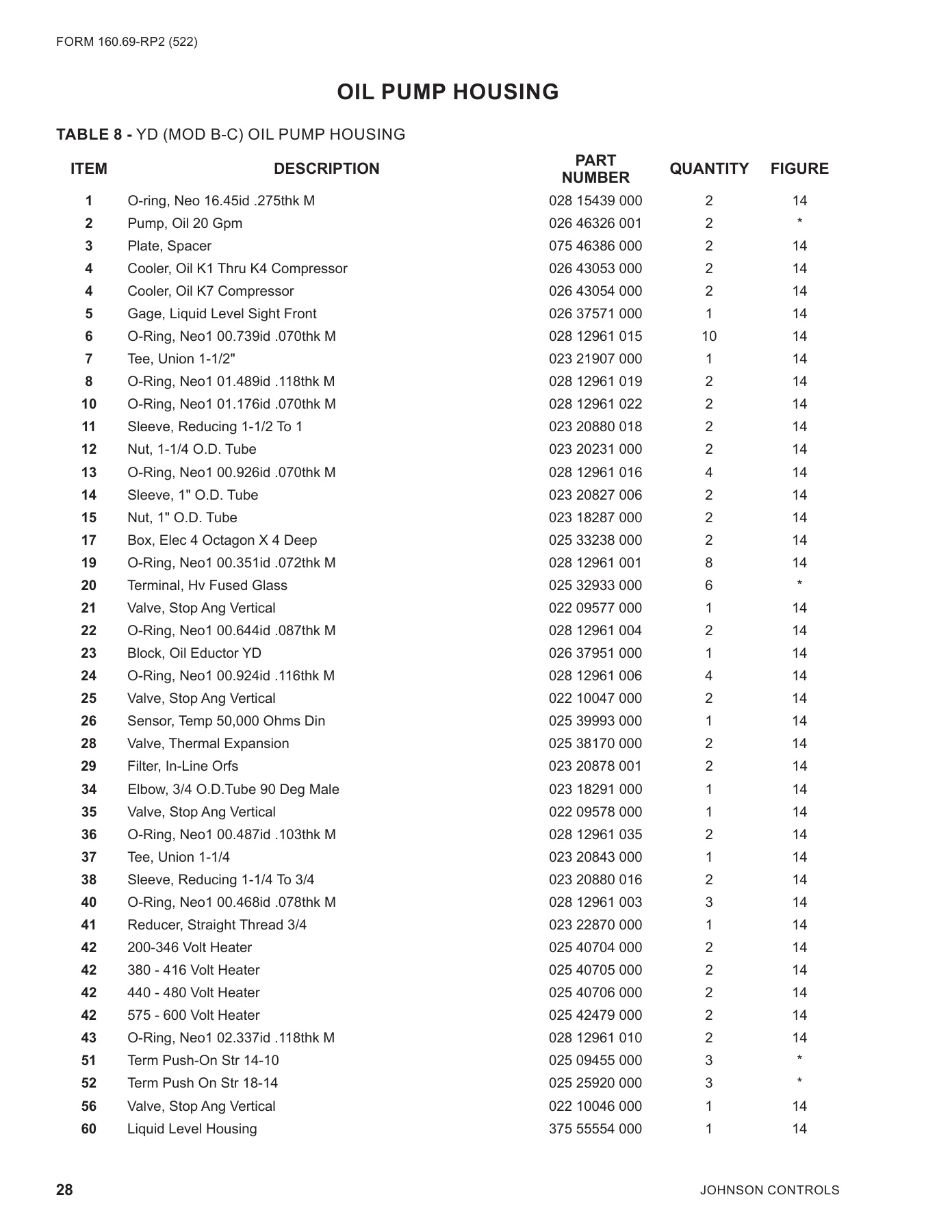

TABLE 8 -
YD (MOD B-C) OIL PUMP HOUSING
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY FIGURE
1
O-ring, Neo 16.45id .275thk M
028 15439 000
2
14
2
Pump, Oil 20 Gpm
026 46326 001
2
*
3
Plate, Spacer
075 46386 000
2
14
4
Cooler, Oil K1 Thru K4 Compressor
026 43053 000
2
14
4
Cooler, Oil K7 Compressor
026 43054 000
2
14
5
Gage, Liquid Level Sight Front
026 37571 000
1
14
6
O-Ring, Neo1 00.739id .070thk M
028 12961 015
10
14
7
Tee, Union 1-1/2"
023 21907 000
1
14
8
O-Ring, Neo1 01.489id .118thk M
028 12961 019
2
14
10
O-Ring, Neo1 01.176id .070thk M
028 12961 022
2
14
11
Sleeve, Reducing 1-1/2 To 1
023 20880 018
2
14
12
Nut, 1-1/4 O.D. Tube
023 20231 000
2
14
13
O-Ring, Neo1 00.926id .070thk M
028 12961 016
4
14
14
Sleeve, 1" O.D. Tube
023 20827 006
2
14
15
Nut, 1" O.D. Tube
023 18287 000
2
14
17
Box, Elec 4 Octagon X 4 Deep
025 33238 000
2
14
19
O-Ring, Neo1 00.351id .072thk M
028 12961 001
8
14
20
Terminal, Hv Fused Glass
025 32933 000
6
*
21
Valve, Stop Ang Vertical
022 09577 000
1
14
22
O-Ring, Neo1 00.644id .087thk M
028 12961 004
2
14
23
Block, Oil Eductor YD
026 37951 000
1
14
24
O-Ring, Neo1 00.924id .116thk M
028 12961 006
4
14
25
Valve, Stop Ang Vertical
022 10047 000
2
14
26
Sensor, Temp 50,000 Ohms Din
025 39993 000
1
14
28
Valve, Thermal Expansion
025 38170 000
2
14
29
Filter, In-Line Orfs
023 20878 001
2
14
34
Elbow, 3/4 O.D.Tube 90 Deg Male
023 18291 000
1
14
35
Valve, Stop Ang Vertical
022 09578 000
1
14
36
O-Ring, Neo1 00.487id .103thk M
028 12961 035
2
14
37
Tee, Union 1-1/4
023 20843 000
1
14
38
Sleeve, Reducing 1-1/4 To 3/4
023 20880 016
2
14
40
O-Ring, Neo1 00.468id .078thk M
028 12961 003
3
14
41
Reducer, Straight Thread 3/4
023 22870 000
1
14
42
200-346 Volt Heater
025 40704 000
2
14
42
380 - 416 Volt Heater
025 40705 000
2
14
42
440 - 480 Volt Heater
025 40706 000
2
14
42
575 - 600 Volt Heater
025 42479 000
2
14
43
O-Ring, Neo1 02.337id .118thk M
028 12961 010
2
14
51
Term Push-On Str 14-10
025 09455 000
3
*
52
Term Push On Str 18-14
025 25920 000
3
*
56
Valve, Stop Ang Vertical
022 10046 000
1
14
60
Liquid Level Housing
375 55554 000
1
14
OIL PUMP HOUSING
