JOHNSON CONTROLS
26
FORM 160.69-RP3
ISSUE DATE: 5/20/2022

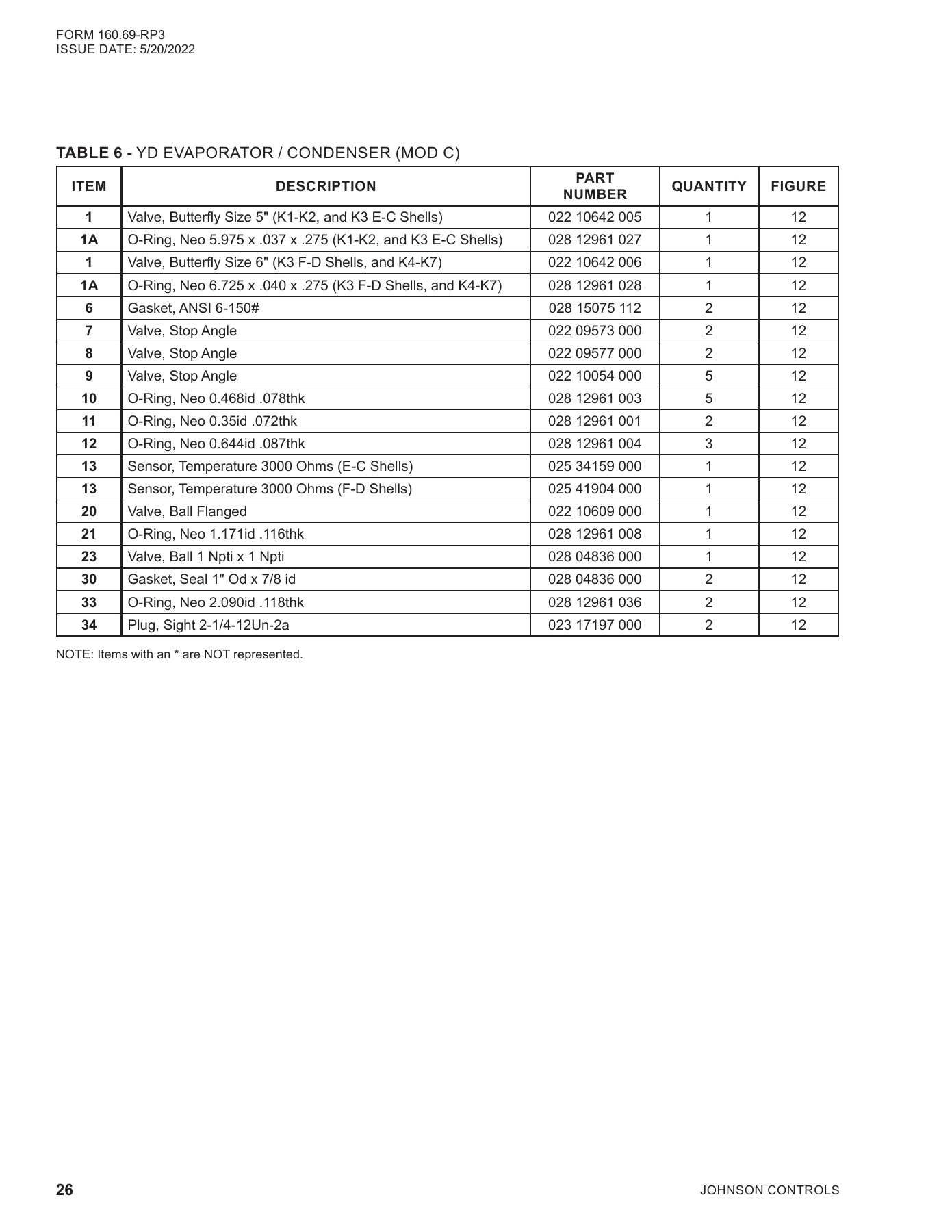

TABLE 6 -
YD EVAPORATOR / CONDENSER (MOD C)
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
1
Valve, Butterfly Size 5" (K1-K2, and K3 E-C Shells)
022 10642 005
1
12
1A
O-Ring, Neo 5.975 x .037 x .275 (K1-K2, and K3 E-C Shells)
028 12961 027
1
12
1
Valve, Butterfly Size 6" (K3 F-D Shells, and K4-K7)
022 10642 006
1
12
1A
O-Ring, Neo 6.725 x .040 x .275 (K3 F-D Shells, and K4-K7)
028 12961 028
1
12
6
Gasket, ANSI 6-150#
028 15075 112
2
12
7
Valve, Stop Angle
022 09573 000
2
12
8
Valve, Stop Angle
022 09577 000
2
12
9
Valve, Stop Angle
022 10054 000
5
12
10
O-Ring, Neo 0.468id .078thk
028 12961 003
5
12
11
O-Ring, Neo 0.35id .072thk
028 12961 001
2
12
12
O-Ring, Neo 0.644id .087thk
028 12961 004
3
12
13
Sensor, Temperature 3000 Ohms (E-C Shells)
025 34159 000
1
12
13
Sensor, Temperature 3000 Ohms (F-D Shells)
025 41904 000
1
12
20
Valve, Ball Flanged
022 10609 000
1
12
21
O-Ring, Neo 1.171id .116thk
028 12961 008
1
12
23
Valve, Ball 1 Npti x 1 Npti
028 04836 000
1
12
30
Gasket, Seal 1" Od x 7/8 id
028 04836 000
2
12
33
O-Ring, Neo 2.090id .118thk
028 12961 036
2
12
34
Plug, Sight 2-1/4-12Un-2a
023 17197 000
2
12
NOTE: Items with an * are NOT represented.
