FORM 160.69-RP2 (522)

JOHNSON CONTROLS

26

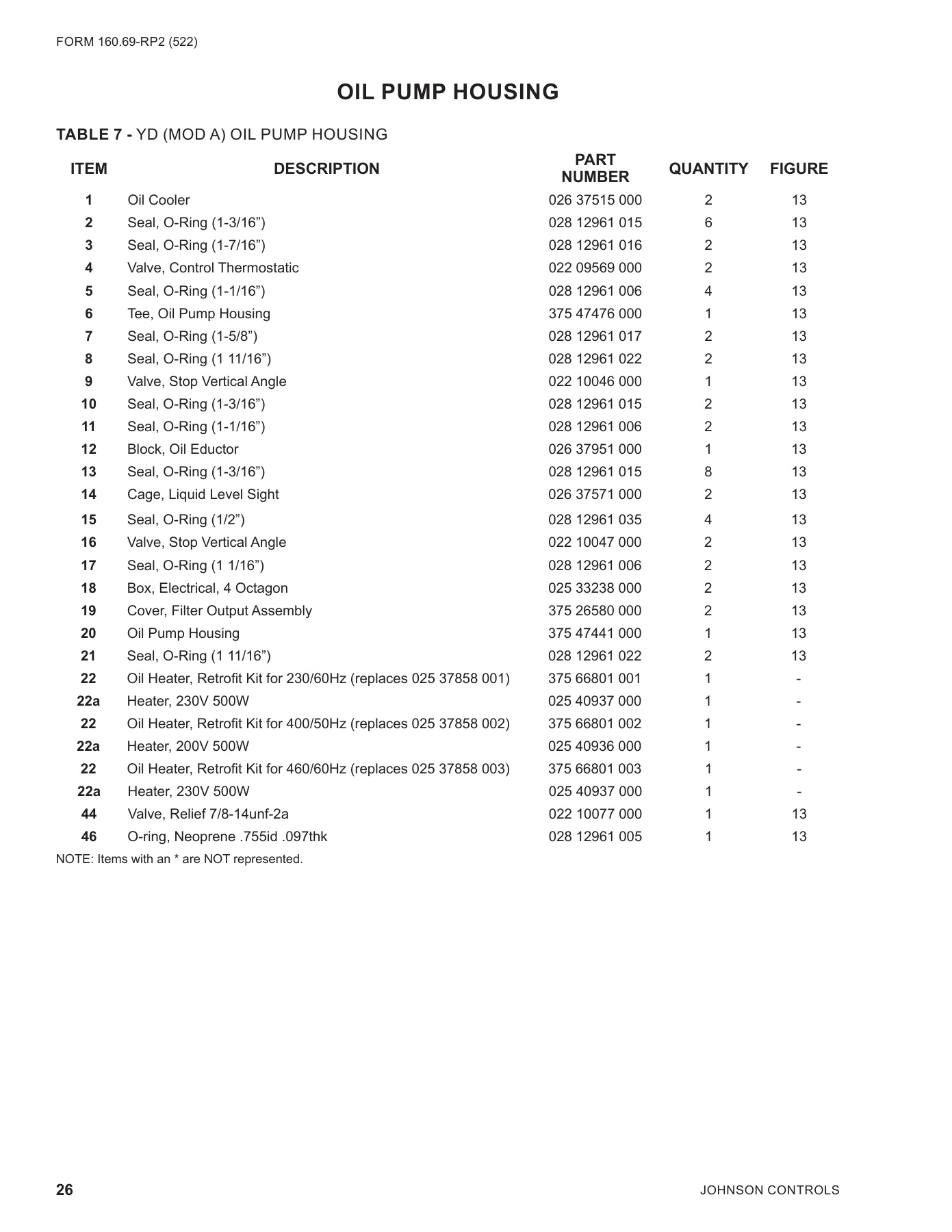

TABLE 7 -

YD (MOD A) OIL PUMP HOUSING

ITEM

DESCRIPTION

PART

NUMBER

QUANTITY FIGURE

1

Oil Cooler

026 37515 000

2

13

2

Seal, O-Ring (1-3/16”)

028 12961 015

6

13

3

Seal, O-Ring (1-7/16”)

028 12961 016

2

13

4

Valve, Control Thermostatic

022 09569 000

2

13

5

Seal, O-Ring (1-1/16”)

028 12961 006

4

13

6

Tee, Oil Pump Housing

375 47476 000

1

13

7

Seal, O-Ring (1-5/8”)

028 12961 017

2

13

8

Seal, O-Ring (1 11/16”)

028 12961 022

2

13

9

Valve, Stop Vertical Angle

022 10046 000

1

13

10

Seal, O-Ring (1-3/16”)

028 12961 015

2

13

11

Seal, O-Ring (1-1/16”)

028 12961 006

2

13

12

Block, Oil Eductor

026 37951 000

1

13

13

Seal, O-Ring (1-3/16”)

028 12961 015

8

13

14

Cage, Liquid Level Sight

026 37571 000

2

13

15

Seal, O-Ring (1/2”)

028 12961 035

4

13

16

Valve, Stop Vertical Angle

022 10047 000

2

13

17

Seal, O-Ring (1 1/16”)

028 12961 006

2

13

18

Box, Electrical, 4 Octagon

025 33238 000

2

13

19

Cover, Filter Output Assembly

375 26580 000

2

13

20

Oil Pump Housing

375 47441 000

1

13

21

Seal, O-Ring (1 11/16”)

028 12961 022

2

13

22

Oil Heater, Retrofit Kit for 230/60Hz (replaces 025 37858 001)

375 66801 001

1

-

22a

Heater, 230V 500W

025 40937 000

1

-

22

Oil Heater, Retrofit Kit for 400/50Hz (replaces 025 37858 002)

375 66801 002

1

-

22a

Heater, 200V 500W

025 40936 000

1

-

22

Oil Heater, Retrofit Kit for 460/60Hz (replaces 025 37858 003)

375 66801 003

1

-

22a

Heater, 230V 500W

025 40937 000

1

-

44

Valve, Relief 7/8-14unf-2a

022 10077 000

1

13

46

O-ring, Neoprene .755id .097thk

028 12961 005

1

13

NOTE: Items with an * are NOT represented.

OIL PUMP HOUSING
