DEVICE PRE-ROTATION

MODEL K2

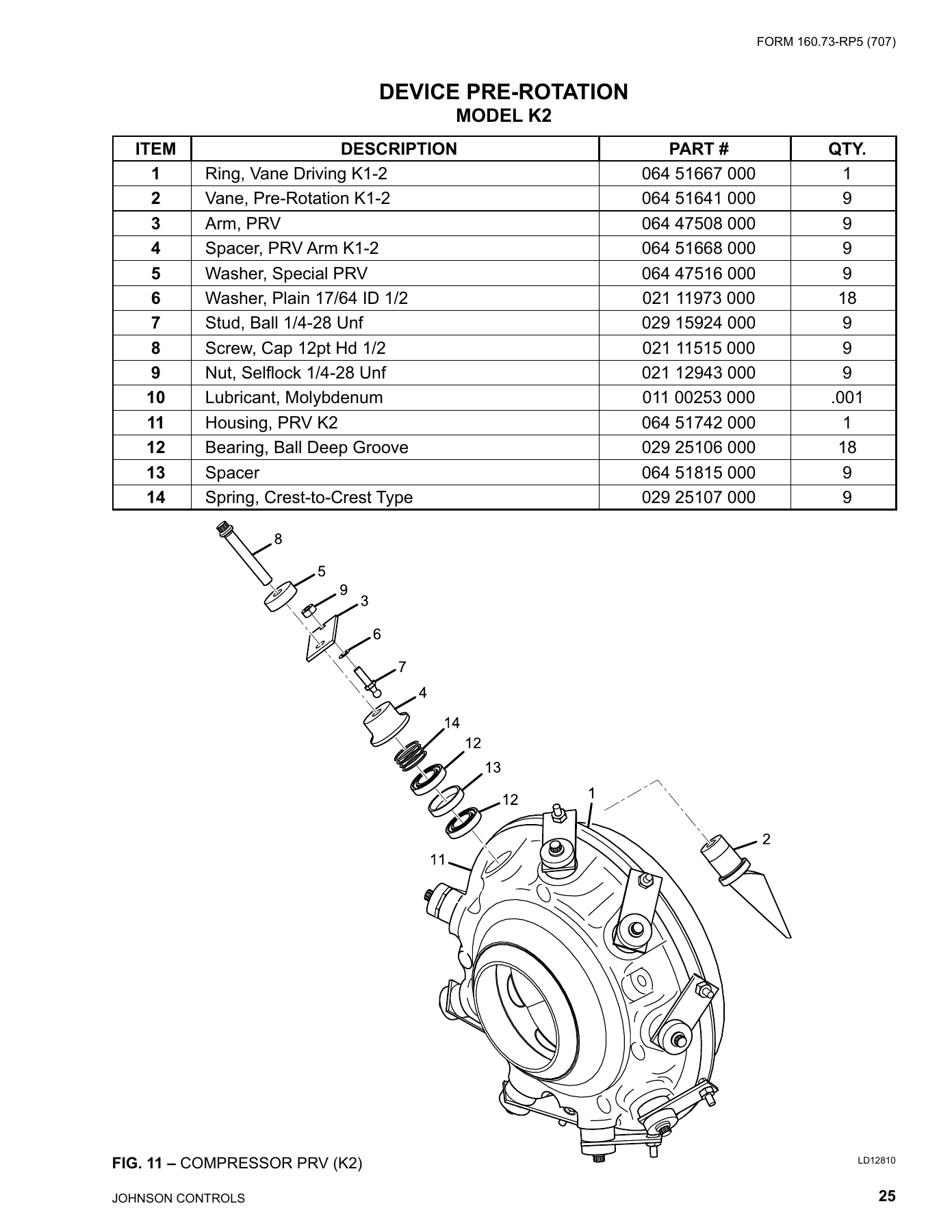

FIG. 11 –

 COMPRESSOR PRV (K2)

LD12810

ITEM

DESCRIPTION

PART #

QTY.

1

Ring, Vane Driving K1-2

064 51667 000

1

2

Vane, Pre-Rotation K1-2

064 51641 000

9

3

Arm, PRV

064 47508 000

9

4

Spacer, PRV Arm K1-2

064 51668 000

9

5

Washer, Special PRV

064 47516 000

9

6

Washer, Plain 17/64 ID 1/2

021 11973 000

18

7

Stud, Ball 1/4-28 Unf

029 15924 000

9

8

Screw, Cap 12pt Hd 1/2

021 11515 000

9

9

Nut, Selflock 1/4-28 Unf

021 12943 000

9

10

Lubricant, Molybdenum

011 00253 000

.001

11

Housing, PRV K2

064 51742 000

1

12

Bearing, Ball Deep Groove

029 25106 000

18

13

Spacer

064 51815 000

9

14

Spring, Crest-to-Crest Type

029 25107 000

9
