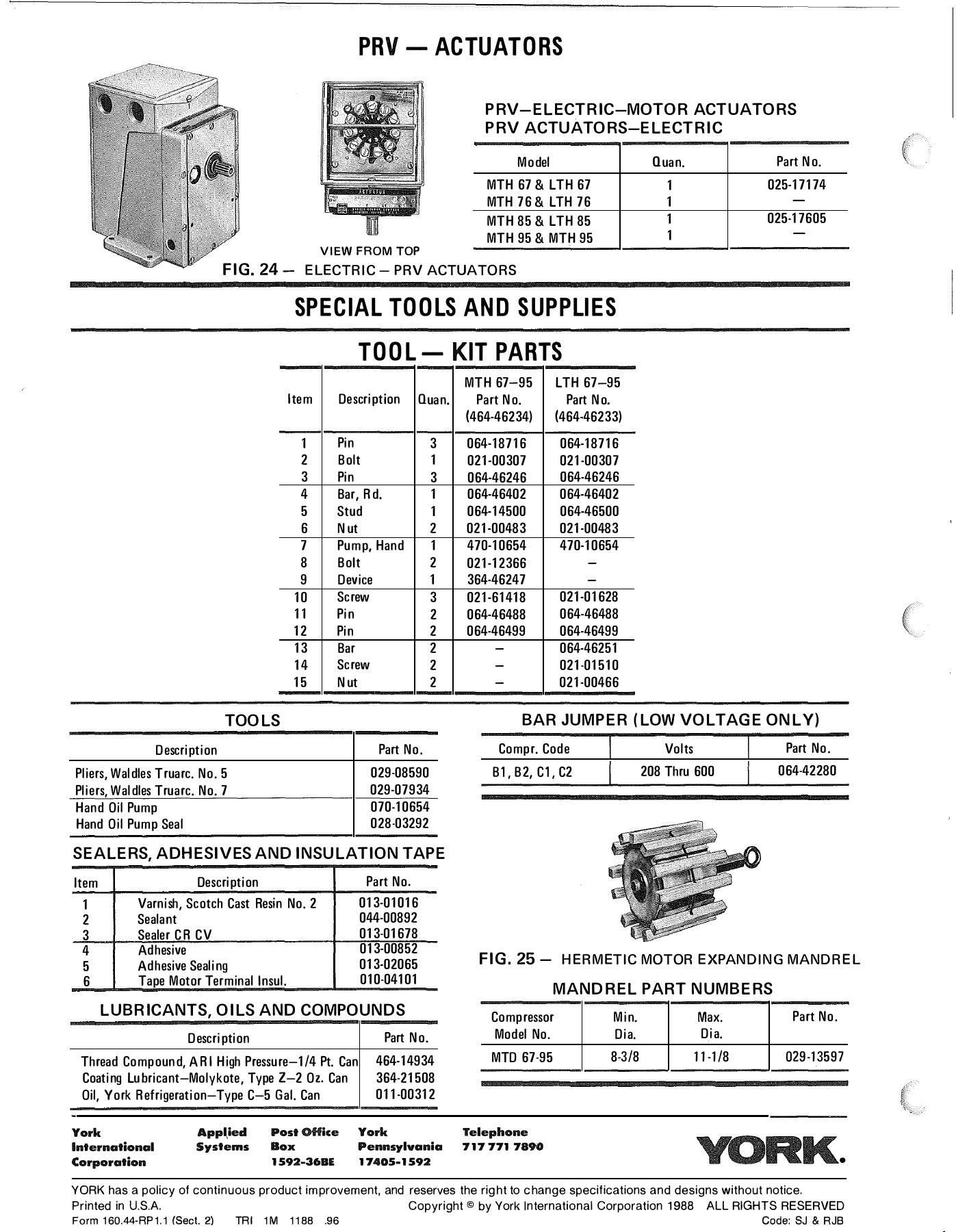

PRV - ACTUATORS
VIEW FROM TOP
PRV-ELECTRIC-MOTOR ACTUATORS
PRV ACTUATORS-ELECTRIC
Model
Quan.
Part No.
MTH 67 & LTH 67
1
025-17174
MTH 76& LTH 76
1
-
MTH 85 & LTH 85
1
025-17605
MTH 95 & MTH 95
1
-
FIG. 24-
ELECTRIC- PRV ACTUATORS
SPECIAL TOOLS AND SUPPLIES
TOOL - KIT PARTS
MTH 67-95
LTH 67-95
Item
Description Guan.
Part No.
Part No.
(464-46234)
(464-46233)
1
Pin
3
064-18716
064-18716
2
Bolt
1
021-00307
021-00307
3
Pin
3
064-46246
064-46246
4
Bar, Rd.
1
064-46402
064-46402
5
Stud
1
064-14500
064-46500
6
Nut
2
021-00483
021-00483
7
Pump, Hand
1
470-10654
470-10654
8
Bolt
2
021-12366
-
9
Device
1
364-46247
-
10
Screw
3
021-61418
021-01628
11
Pin
2
064-46488
064-46488
12
Pin
2
064-46499
064-46499
13
Bar
2
-
064-46251
14
Screw
2
-
021-01510
15
Nut
2
-
021-00466
TOOLS
BAR JUMPER (LOW VOLTAGE ONLY)
Description
Pliers, Waldles Truarc. No. 5
Pliers, Waldles Truarc. No. 7
Hand Oil Pump
Hand Oil Pump Seal
Part No.
029-08590
029-07934
070-10654
028-03292
SEALERS, ADHESIVES AND INSULATION TAPE
Item
Description
Part No.
1
Varnish, Scotch Cast Resin No. 2
013-01016
2
Sealant
044-00892
3
Sealer CR CV
013-01678
Compr. Code
Volts
Part No.
Bl, B2, Cl, C2
208 Thru 600
064-42280
4
Adhesive
5
Adhesive Sealing
6
Tape Motor Terminal lnsul.
013-00852
013-02065
010-04101
FIG. 25 -
HERMETIC MOTOR EXPANDING MANDREL
MANDREL PART NUMBERS
LUBRICANTS, OILS AND COMPOUNDS
Description
Thread Compound, AR I High Pressure-1/4 Pt. Can
Coating Lubricant-Molykote, Type 2-2 Oz. Can
Oil, York Refrigeration-Type C-5 Gal. Can
Part No.
464-14934
364-21508
011-00312
Compressor
Model No.
MTD 67-95
York
International
Corporation
Appl,ied
IPosll Office
York
Telephone
Systems
Box
!Pennsylvania
717 771 7890
1592-36BE
17405-1592
Min.
Max.
Part No.
Dia.
Dia.
8-3/8
11-1 /8
029-13597
®
YORK has a policy of continuous product improvement, and reserves the right to change specifications and designs without notice.
Printed in U.S.A.
Copyright@ by York International Corporation 1988 ALL RIGHTS RESERVED
Form 160.44-RP1.1 (Sect. 2)
TRI 1M 1188 .96
Code: SJ & RJB
