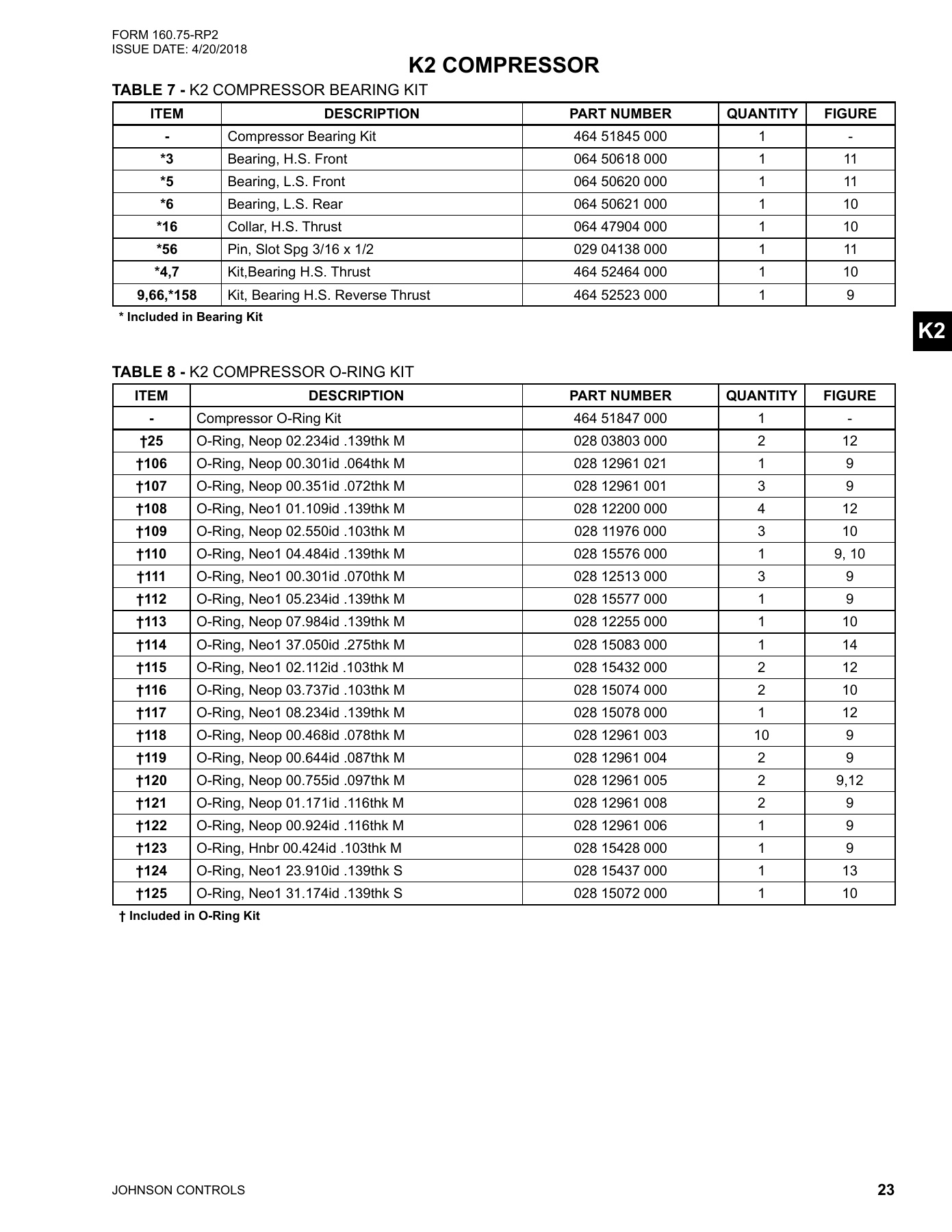

JOHNSON CONTROLS
23
FORM 160.75-RP2
ISSUE DATE: 4/20/2018
K2
K2 COMPRESSOR
TABLE 7 -
K2 COMPRESSOR BEARING KIT
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
FIGURE
-
Compressor Bearing Kit
464 51845 000
1
-
*3
Bearing, H.S. Front
064 50618 000
1
11
*5
Bearing, L.S. Front
064 50620 000
1
11
*6
Bearing, L.S. Rear
064 50621 000
1
10
*16
Collar, H.S. Thrust
064 47904 000
1
10
*56
Pin, Slot Spg 3/16 x 1/2
029 04138 000
1
11
*4,7
Kit,Bearing H.S. Thrust
464 52464 000
1
10
9,66,*158
Kit, Bearing H.S. Reverse Thrust
464 52523 000
1
9
* Included in Bearing Kit
TABLE 8 -
K2 COMPRESSOR O-RING KIT
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
FIGURE
-
Compressor O-Ring Kit
464 51847 000
1
-
†25
O-Ring, Neop 02.234id .139thk M
028 03803 000
2
12
†106
O-Ring, Neop 00.301id .064thk M
028 12961 021
1
9
†107
O-Ring, Neop 00.351id .072thk M
028 12961 001
3
9
†108
O-Ring, Neo1 01.109id .139thk M
028 12200 000
4
12
†109
O-Ring, Neop 02.550id .103thk M
028 11976 000
3
10
†110
O-Ring, Neo1 04.484id .139thk M
028 15576 000
1
9, 10
†111
O-Ring, Neo1 00.301id .070thk M
028 12513 000
3
9
†112
O-Ring, Neo1 05.234id .139thk M
028 15577 000
1
9
†113
O-Ring, Neop 07.984id .139thk M
028 12255 000
1
10
†114
O-Ring, Neo1 37.050id .275thk M
028 15083 000
1
14
†115
O-Ring, Neo1 02.112id .103thk M
028 15432 000
2
12
†116
O-Ring, Neop 03.737id .103thk M
028 15074 000
2
10
†117
O-Ring, Neo1 08.234id .139thk M
028 15078 000
1
12
†118
O-Ring, Neop 00.468id .078thk M
028 12961 003
10
9
†119
O-Ring, Neop 00.644id .087thk M
028 12961 004
2
9
†120
O-Ring, Neop 00.755id .097thk M
028 12961 005
2
9,12
†121
O-Ring, Neop 01.171id .116thk M
028 12961 008
2
9
†122
O-Ring, Neop 00.924id .116thk M
028 12961 006
1
9
†123
O-Ring, Hnbr 00.424id .103thk M
028 15428 000
1
9
†124
O-Ring, Neo1 23.910id .139thk S
028 15437 000
1
13
†125
O-Ring, Neo1 31.174id .139thk S
028 15072 000
1
10
† Included in O-Ring Kit
