FORM 160.75-RP1

ISSUE DATE: 5/31/2022

JOHNSON CONTROLS

23

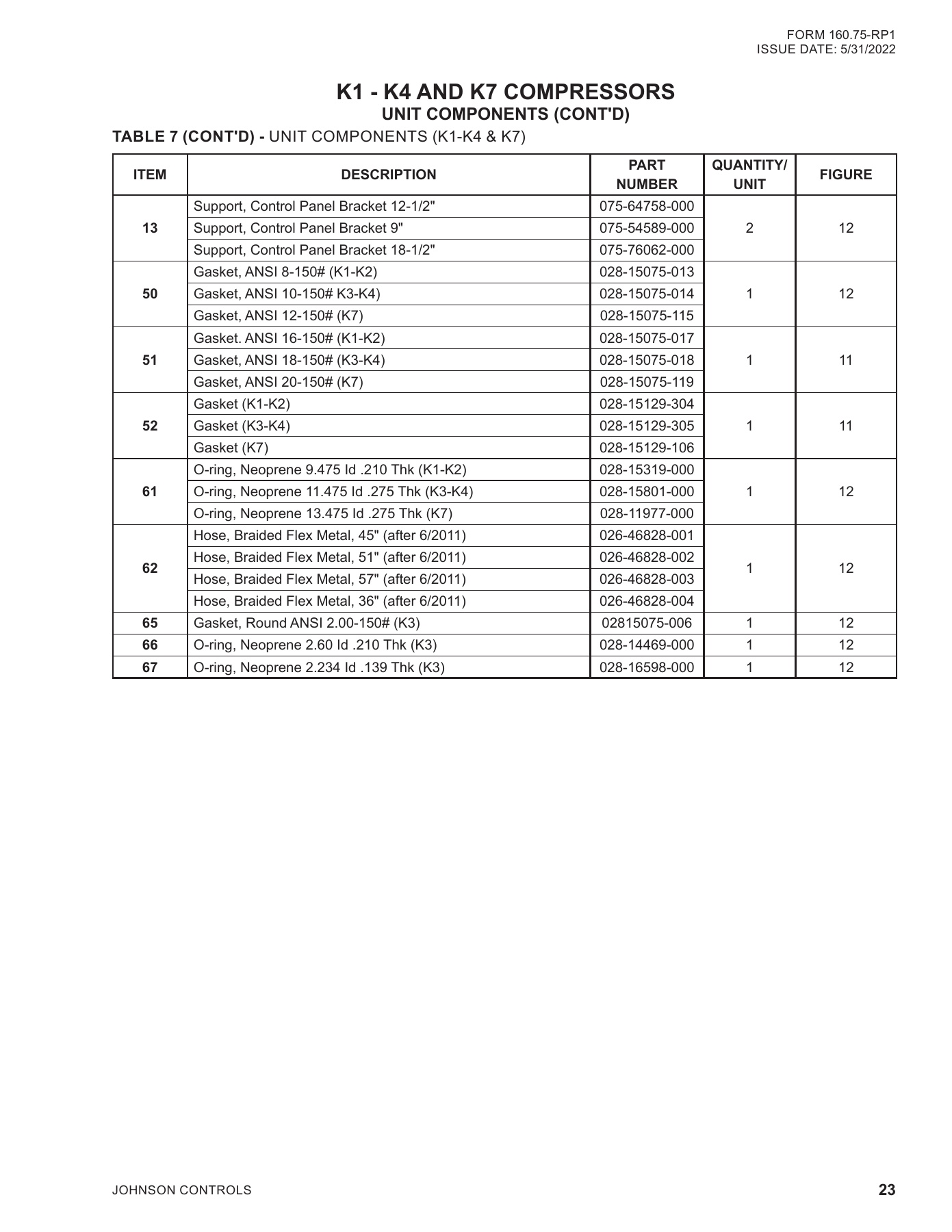

TABLE 7 (CONTD) -

UNIT COMPONENTS (K1-K4 & K7)

K1 - K4 AND K7 COMPRESSORS

UNIT COMPONENTS (CONTD)

ITEM

DESCRIPTION

PART

NUMBER

QUANTITY/

UNIT

FIGURE

13

Support, Control Panel Bracket 12-1/2"

075-64758-000

2

12

Support, Control Panel Bracket 9"

075-54589-000

Support, Control Panel Bracket 18-1/2"

075-76062-000

50

Gasket, ANSI 8-150# (K1-K2)

028-15075-013

1

12

Gasket, ANSI 10-150# K3-K4)

028-15075-014

Gasket, ANSI 12-150# (K7)

028-15075-115

51

Gasket. ANSI 16-150# (K1-K2)

028-15075-017

1

11

Gasket, ANSI 18-150# (K3-K4)

028-15075-018

Gasket, ANSI 20-150# (K7)

028-15075-119

52

Gasket (K1-K2)

028-15129-304

1

11

Gasket (K3-K4)

028-15129-305

Gasket (K7)

028-15129-106

61

O-ring, Neoprene 9.475 Id .210 Thk (K1-K2)

028-15319-000

1

12

O-ring, Neoprene 11.475 Id .275 Thk (K3-K4)

028-15801-000

O-ring, Neoprene 13.475 Id .275 Thk (K7)

028-11977-000

62

Hose, Braided Flex Metal, 45" (after 6/2011)

026-46828-001

1

12

Hose, Braided Flex Metal, 51" (after 6/2011)

026-46828-002

Hose, Braided Flex Metal, 57" (after 6/2011)

026-46828-003

Hose, Braided Flex Metal, 36" (after 6/2011)

026-46828-004

65

Gasket, Round ANSI 2.00-150# (K3)

02815075-006

1

12

66

O-ring, Neoprene 2.60 Id .210 Thk (K3)

028-14469-000

1

12

67

O-ring, Neoprene 2.234 Id .139 Thk (K3)

028-16598-000

1

12
