JOHNSON CONTROLS
22
FORM 160.75-RP1
ISSUE DATE: 5/31/2022
K1 - K4 AND K7 COMPRESSORS
UNIT COMPONENTS

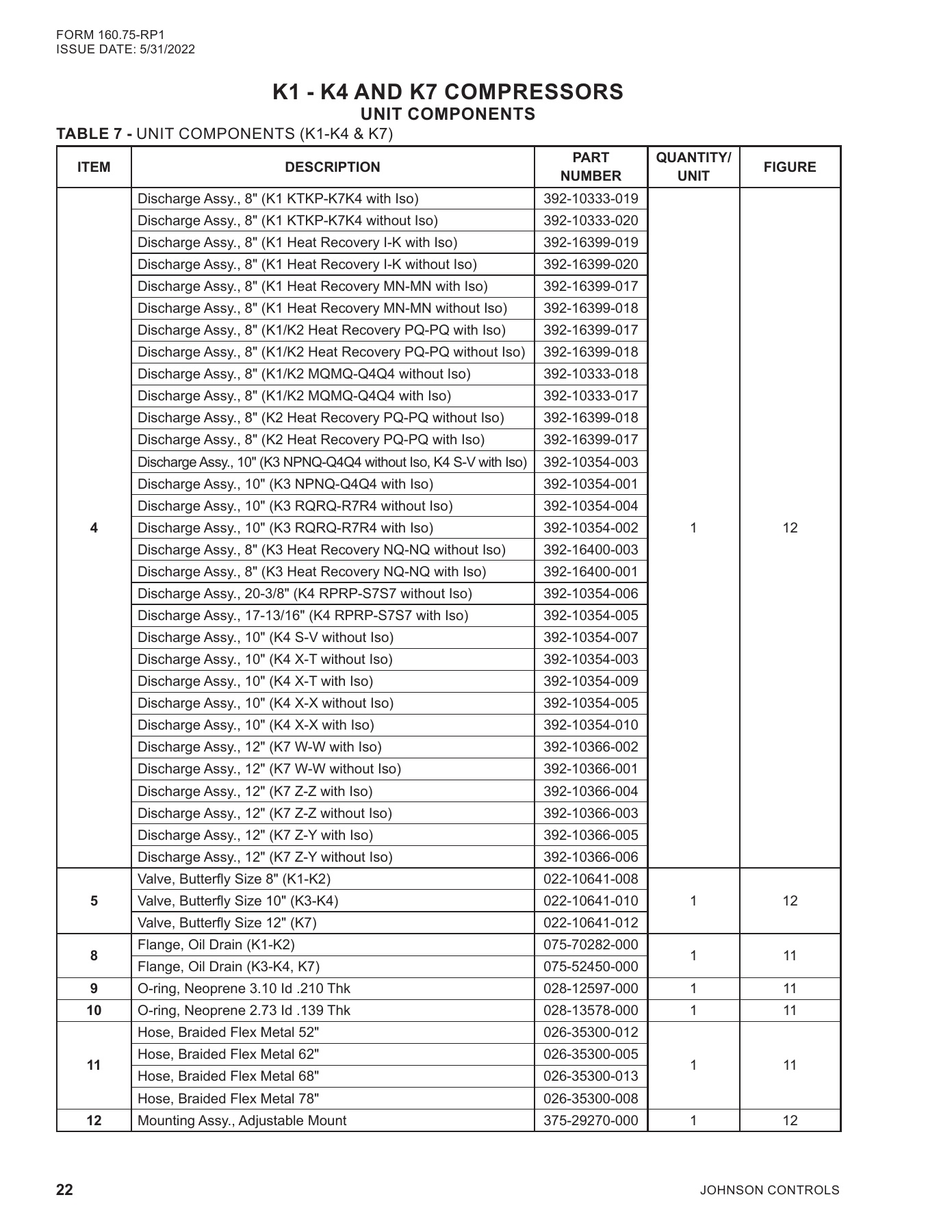

TABLE 7 -
UNIT COMPONENTS (K1-K4 & K7)
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY/
UNIT
FIGURE
4
Discharge Assy., 8" (K1 KTKP-K7K4 with Iso)
392-10333-019
1
12
Discharge Assy., 8" (K1 KTKP-K7K4 without Iso)
392-10333-020
Discharge Assy., 8" (K1 Heat Recovery I-K with Iso)
392-16399-019
Discharge Assy., 8" (K1 Heat Recovery I-K without Iso)
392-16399-020
Discharge Assy., 8" (K1 Heat Recovery MN-MN with Iso)
392-16399-017
Discharge Assy., 8" (K1 Heat Recovery MN-MN without Iso)
392-16399-018
Discharge Assy., 8" (K1/K2 Heat Recovery PQ-PQ with Iso)
392-16399-017
Discharge Assy., 8" (K1/K2 Heat Recovery PQ-PQ without Iso) 392-16399-018
Discharge Assy., 8" (K1/K2 MQMQ-Q4Q4 without Iso)
392-10333-018
Discharge Assy., 8" (K1/K2 MQMQ-Q4Q4 with Iso)
392-10333-017
Discharge Assy., 8" (K2 Heat Recovery PQ-PQ without Iso)
392-16399-018
Discharge Assy., 8" (K2 Heat Recovery PQ-PQ with Iso)
392-16399-017
Discharge Assy., 10" (K3 NPNQ-Q4Q4 without Iso, K4 S-V with Iso) 392-10354-003
Discharge Assy., 10" (K3 NPNQ-Q4Q4 with Iso)
392-10354-001
Discharge Assy., 10" (K3 RQRQ-R7R4 without Iso)
392-10354-004
Discharge Assy., 10" (K3 RQRQ-R7R4 with Iso)
392-10354-002
Discharge Assy., 8" (K3 Heat Recovery NQ-NQ without Iso)
392-16400-003
Discharge Assy., 8" (K3 Heat Recovery NQ-NQ with Iso)
392-16400-001
Discharge Assy., 20-3/8" (K4 RPRP-S7S7 without Iso)
392-10354-006
Discharge Assy., 17-13/16" (K4 RPRP-S7S7 with Iso)
392-10354-005
Discharge Assy., 10" (K4 S-V without Iso)
392-10354-007
Discharge Assy., 10" (K4 X-T without Iso)
392-10354-003
Discharge Assy., 10" (K4 X-T with Iso)
392-10354-009
Discharge Assy., 10" (K4 X-X without Iso)
392-10354-005
Discharge Assy., 10" (K4 X-X with Iso)
392-10354-010
Discharge Assy., 12" (K7 W-W with Iso)
392-10366-002
Discharge Assy., 12" (K7 W-W without Iso)
392-10366-001
Discharge Assy., 12" (K7 Z-Z with Iso)
392-10366-004
Discharge Assy., 12" (K7 Z-Z without Iso)
392-10366-003
Discharge Assy., 12" (K7 Z-Y with Iso)
392-10366-005
Discharge Assy., 12" (K7 Z-Y without Iso)
392-10366-006
5
Valve, Butterfly Size 8" (K1-K2)
022-10641-008
1
12
Valve, Butterfly Size 10" (K3-K4)
022-10641-010
Valve, Butterfly Size 12" (K7)
022-10641-012
8
Flange, Oil Drain (K1-K2)
075-70282-000
1
11
Flange, Oil Drain (K3-K4, K7)
075-52450-000
9
O-ring, Neoprene 3.10 Id .210 Thk
028-12597-000
1
11
10
O-ring, Neoprene 2.73 Id .139 Thk
028-13578-000
1
11
11
Hose, Braided Flex Metal 52"
026-35300-012
1
11
Hose, Braided Flex Metal 62"
026-35300-005
Hose, Braided Flex Metal 68"
026-35300-013
Hose, Braided Flex Metal 78"
026-35300-008
12
Mounting Assy., Adjustable Mount
375-29270-000
1
12
