JOHNSON CONTROLS
22
FORM 160.69-RP3
ISSUE DATE: 5/20/2022

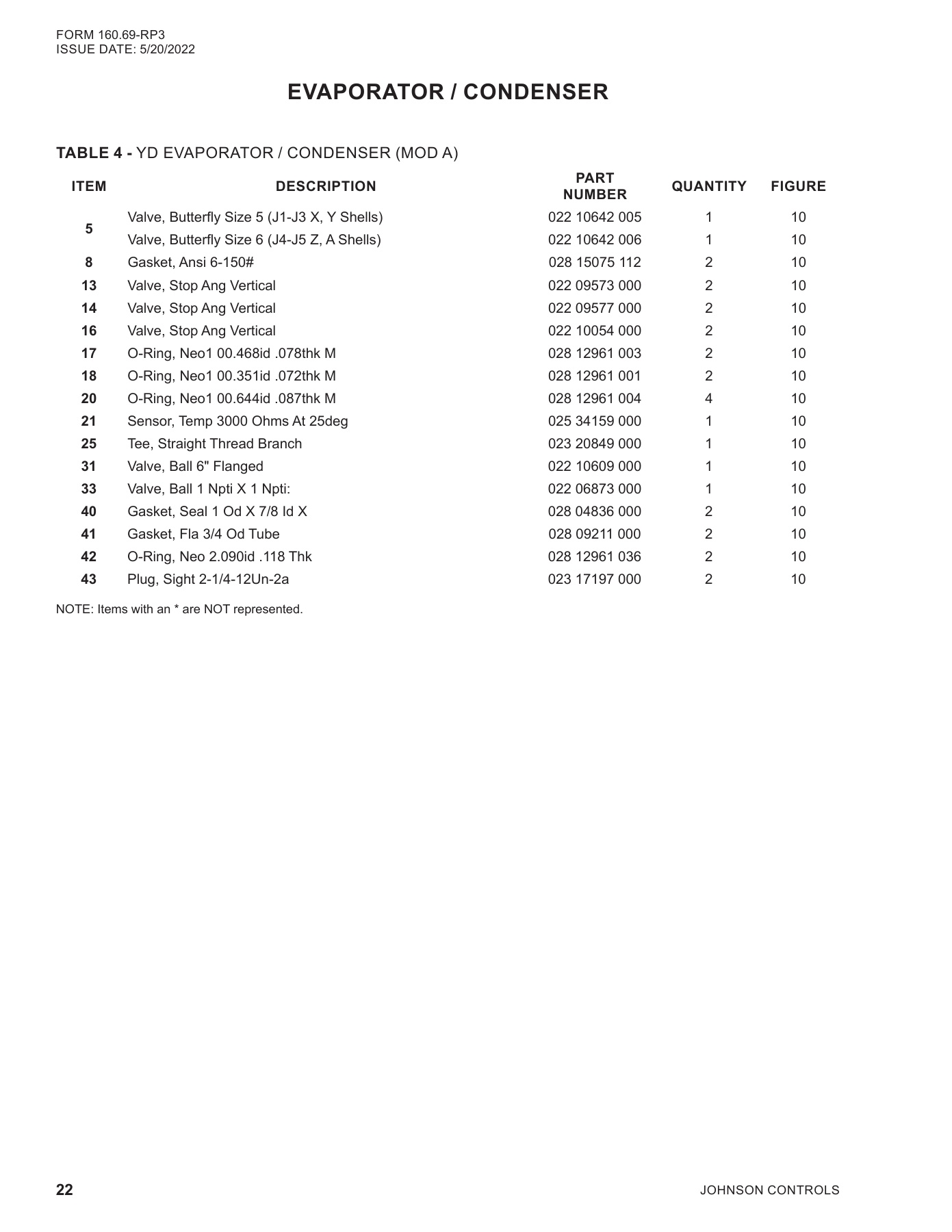

TABLE 4 -
YD EVAPORATOR / CONDENSER (MOD A)
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY
FIGURE
5
Valve, Butterfly Size 5 (J1-J3 X, Y Shells)
022 10642 005
1
10
Valve, Butterfly Size 6 (J4-J5 Z, A Shells)
022 10642 006
1
10
8
Gasket, Ansi 6-150#
028 15075 112
2
10
13
Valve, Stop Ang Vertical
022 09573 000
2
10
14
Valve, Stop Ang Vertical
022 09577 000
2
10
16
Valve, Stop Ang Vertical
022 10054 000
2
10
17
O-Ring, Neo1 00.468id .078thk M
028 12961 003
2
10
18
O-Ring, Neo1 00.351id .072thk M
028 12961 001
2
10
20
O-Ring, Neo1 00.644id .087thk M
028 12961 004
4
10
21
Sensor, Temp 3000 Ohms At 25deg
025 34159 000
1
10
25
Tee, Straight Thread Branch
023 20849 000
1
10
31
Valve, Ball 6" Flanged
022 10609 000
1
10
33
Valve, Ball 1 Npti X 1 Npti:
022 06873 000
1
10
40
Gasket, Seal 1 Od X 7/8 Id X
028 04836 000
2
10
41
Gasket, Fla 3/4 Od Tube
028 09211 000
2
10
42
O-Ring, Neo 2.090id .118 Thk
028 12961 036
2
10
43
Plug, Sight 2-1/4-12Un-2a
023 17197 000
2
10
NOTE: Items with an * are NOT represented.
EVAPORATOR / CONDENSER
