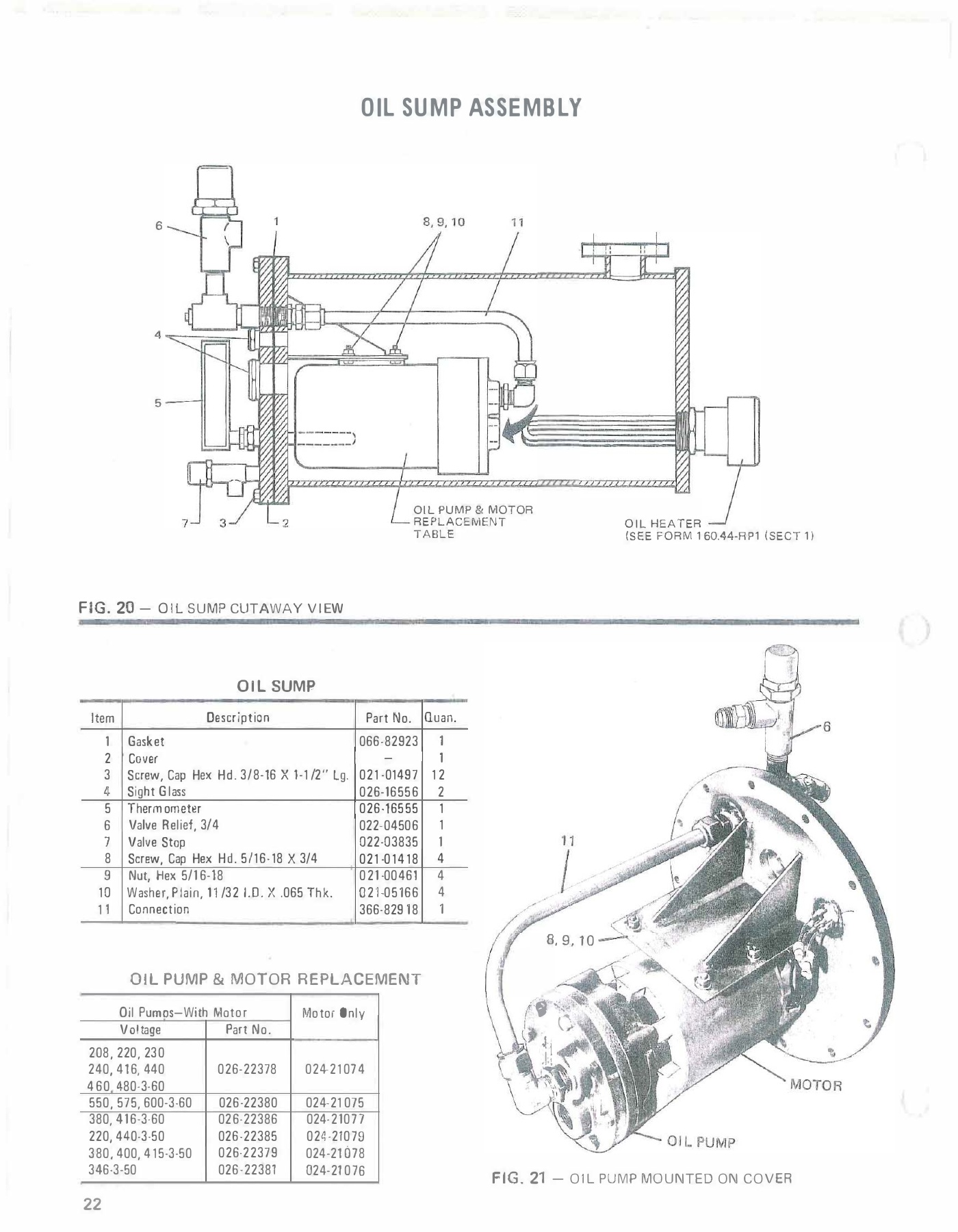

OIL SUMP ASSEMBLY

01 L PUMP &  MOTOR

REPLACEMENT

TABLE

FIG.  20

- OIL SUMP CUTAWAY VIEW

OIL SUMP

Item

Description

Part No.

Ouan.

Gasket

066-82923

Cover

-

Screw, Cap Hex Hd. 3/8-16 X 1-1/2" Lg.

021-01497

12

Sight Glass

026-16556

Thermometer

026-16555  1

Valve  Relief, 3/4

022-04506

Valve Stop

022-03835

Screw, Cap Hex Hd. 5/16-lBX 3/4

021 -01418

Nut, Hex 5/16-18

021-00461

10

Washer, Plain, 11/32 1.0. X .065 Thk.

021-05166

11

Connection

366-82918

01 L PUMP &  MOTOR  REPLACEMENT

Oil Pumas-With Motor

Motor Only

Pump-Kit

Voltage

Part No.

208,220,230

240,416,440

026-22378

024-21074

026-23058

460  480-3-60

550, 575, 600-3-60

026-22380

024-21075

026-23058

380, 416-3-60

026-22386

024-21077

026-23058

220, 440-3-50

026-22385

024-21079

026-23059

380,400, 415-3-50

026-22379

024-21078

026-23059

OIL HEATER

(SEE FORM 160.44-RP1 (SECT  1)

346-3-50

026-22381

024-21076

026-23059

FIG. 21  -

OIL PUMP MOUNTED ON COVER

22

Catalog 160-44-RP2-1 - Page 0021
