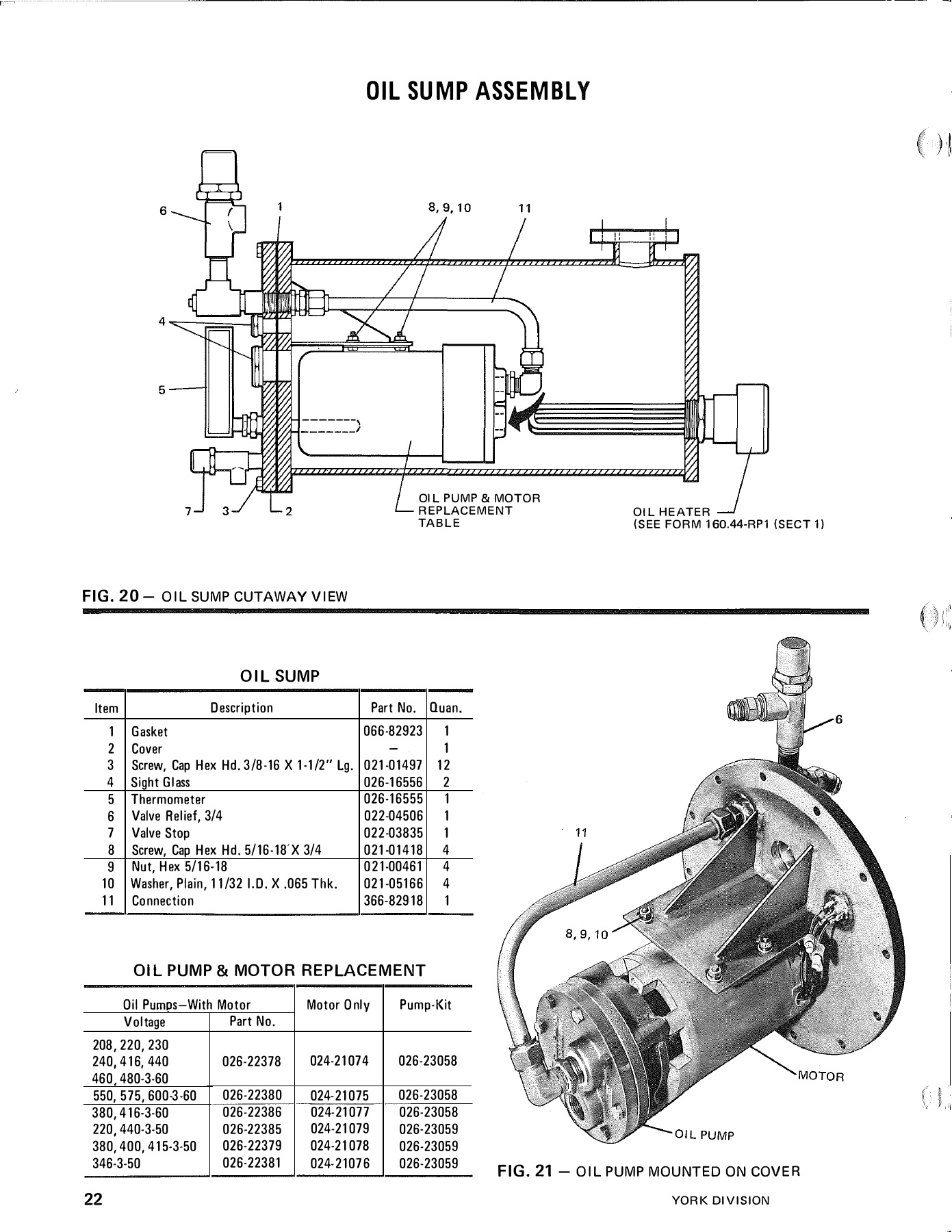

OIL SUMP ASSEMBLY

01 L PUMP & MOTOR

REPLACEMENT

TABLE

FIG. 20

- OIL SUMP CUTAWAY VIEW

OIL SUMP

Item

Description

Part No.  Quan.

1  Gasket

066-82923  1

2  Cover

-

3  Screw, Cap  Hex  Hd. 3/8-16 X 1-1/2"  Lg.  021-01497  12

4  Sight  Glass

026-16556  2

5  Thermometer

026-16555  1

6  Valve  Relief, 3/4

022-04506  1

7  Valve Stop

022-03835  1

8  Screw, Cap  Hex  Hd. 5/16-18X 3/4

021-01418  4

9  Nut, Hex 5/16-18

021-00461  4

10  Washer, Plain, 11/32  I.D. X .065 Thk.

021-05166  4

11  Connection

366-82918

01 L PUMP &  MOTOR REPLACEMENT

Oil Pumos-With Motor

Motor Only

Pump-Kit

Voltage

Part No.

208,220,230

240,416,440

026-22378

024-21074

026-23058

460  480-3-60

550, 575, 600-3-60

026-22380

024-21075

026-23058

380, 416-3-60

026-22386

024-21077

026-23058

220, 440-3-50

026-22385

024-21079

026-23059

380,400, 415-3-50

026-22379

024-21078

026-23059

OIL HEATER

(SEE FORM 160.44-RP1  (SECT 1)

346-3-50

026-22381

22

024-21076

026-23059

FIG. 21

- OIL PUMP MOUNTED  ON  COVER

YORK DIVISION

Catalog 160-44-RP1-1-SECT-2 - Page 0021
