FoRm 180.30-Rpstl

19

yoRk iNteRNAtioNAl

 2.  To hold suction valve ring and springs firmly in place

during installation, two sheet metal clips should be

placed over the suction valve plate and suction valve

ring. These clips may be ordered from the Factory

(YORK Part No. 064-37274). (See pages 19-27)


 3.  Assemble the discharge valve cage assembly.

 a.   Insert the discharge valve wave springs in their

recess in the valve cage and set the discharge valve

ring in place.

 b.   Place  the  inner  discharge  valve  plate  over  the

ring and springs. DO NOT pinch the ring or

springs between the cage and plate.



c.   Insert the discharge valve screw through the in-

ner discharge valve plate and the discharge valve

cage. Then bolt the assembly together using the

self locking nut.

Torquing  of  the  center  screw/nut  is

critical. (45 - 48 ft. lbs.)

 d.   Verify that neither the ring or springs is pinched

and kept from operating freely over inner dis-

charge valve plate pilot diameter.

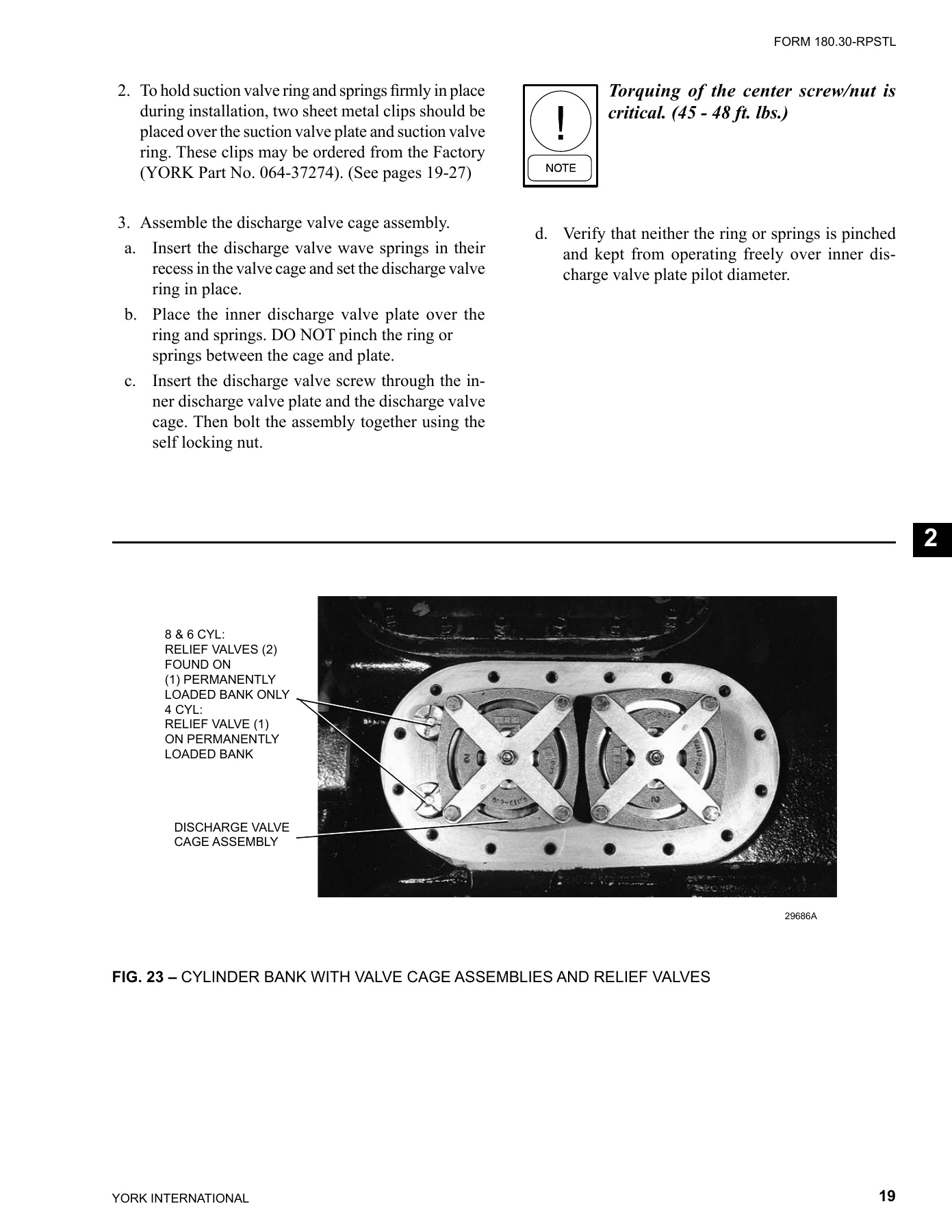

fig. 23 –

CyliNDeR BANk WitH VAlVe CAGe AssemBlies AND RelieF VAlVes

29686A

8 & 6 Cyl:

RelieF VAlVes (2)

FoUND oN

(1) peRmANeNtly

loADeD BANk oNly

4 Cyl:

RelieF VAlVe (1)

oN peRmANeNtly

loADeD BANk

DisCHARGe VAlVe

CAGe AssemBly

2
