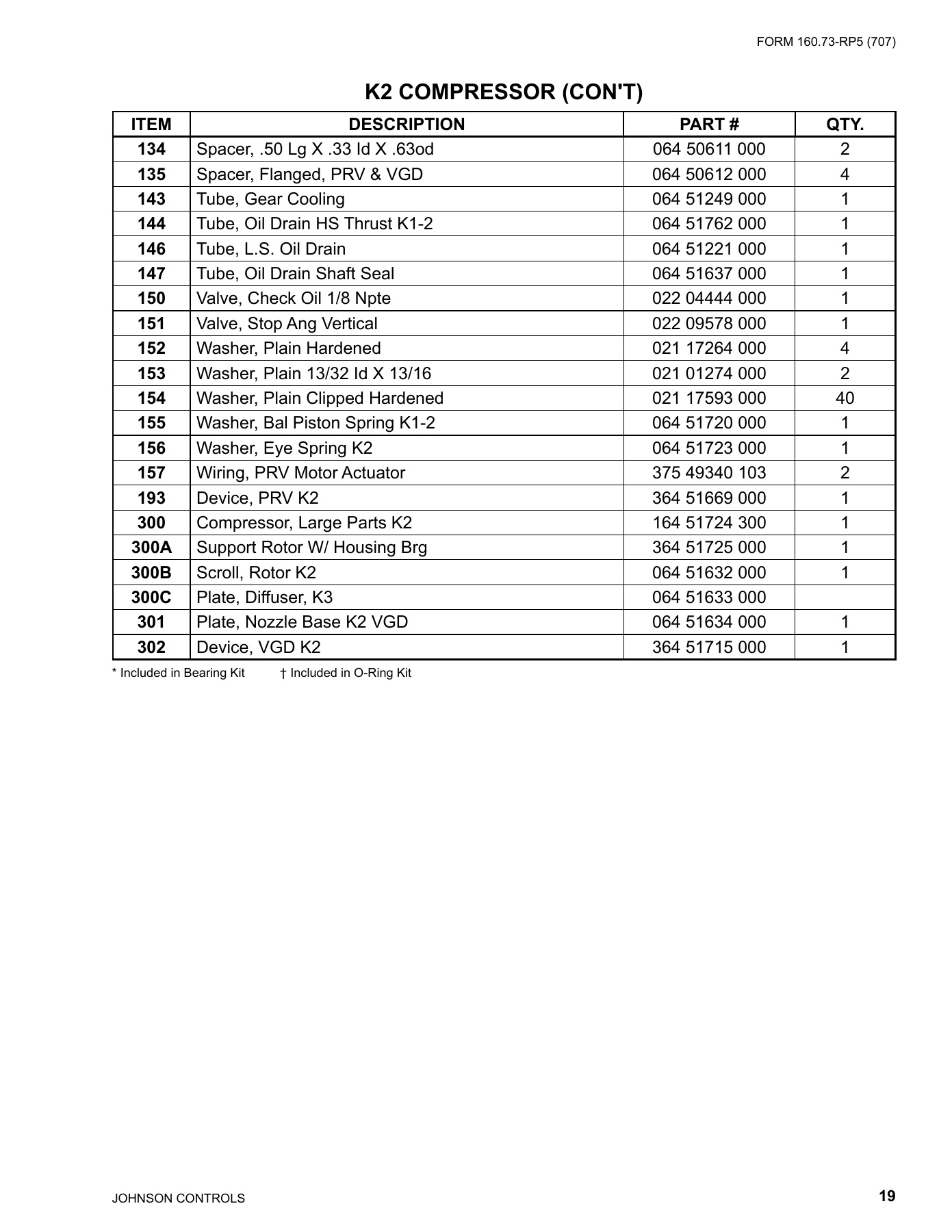

FORM 160.73-RP5 (707)
19
JOHNSON CONTROLS
K2 COMPRESSOR (CONT)
* Included in Bearing Kit
† Included in O-Ring Kit
ITEM
DESCRIPTION
PART #
QTY.
134
Spacer, .50 Lg X .33 Id X .63od
064 50611 000
2
135
Spacer, Flanged, PRV & VGD
064 50612 000
4
143
Tube, Gear Cooling
064 51249 000
1
144
Tube, Oil Drain HS Thrust K1-2
064 51762 000
1
146
Tube, L.S. Oil Drain
064 51221 000
1
147
Tube, Oil Drain Shaft Seal
064 51637 000
1
150
Valve, Check Oil 1/8 Npte
022 04444 000
1
151
Valve, Stop Ang Vertical
022 09578 000
1
152
Washer, Plain Hardened
021 17264 000
4
153
Washer, Plain 13/32 Id X 13/16
021 01274 000
2
154
Washer, Plain Clipped Hardened
021 17593 000
40
155
Washer, Bal Piston Spring K1-2
064 51720 000
1
156
Washer, Eye Spring K2
064 51723 000
1
157
Wiring, PRV Motor Actuator
375 49340 103
2
193
Device, PRV K2
364 51669 000
1
300
Compressor, Large Parts K2
164 51724 300
1
300A
Support Rotor W/ Housing Brg
364 51725 000
1
300B
Scroll, Rotor K2
064 51632 000
1
300C
Plate, Diffuser, K3
064 51633 000
301
Plate, Nozzle Base K2 VGD
064 51634 000
1
302
Device, VGD K2
364 51715 000
1
