FORM 160.44-RP2.1

COMPRESSOR - MODELS MTH/LTH 67, 76, 85 AND 95

Prerotation Vane Housing Parts

Part Description

I-lousing, Pre-Rotation

Vane, Pre-Rotation

Ring, Vane Driving

Arm, Vane

Washer

Washer-Special

Washer

Screw, Cap 12 Pt. Hd. 3/8-24 UNF X 2 Lg.

Screw, Ball

Nut, Hex, 1/4-28 UNF 33

Part Description

Housing, Pre-Rotation

Vane, Pre-Rotation

Ring, Vane Driving

Arm, Vane

Washer

Washer-Special

Washer

Screw, Cap 12 Pt. Hd. 3/8-24 UNF X 2 Lg.

Screw, Ball

Nut, Hex, 1/4-28 UNF 33

Models

MTH & LTH 67

Part No.

Quan.

064-13486

064-10618

064-10815

064-10818

064-10819

064-09289

021-11973

10

021-11956

029-07017

021-12943

Models

1111TH & LTH 85

Part No.

Quan.

064-13481

064-08822

064-08813

064-08814

064-09061

064-08815

021-11973

10

021-11743

029-07017

021-12943

MTH& LTH 76•

Part No.

Guan.

064-13485

064-10618

064-10815

064-10818

064-10819

064-09289

021-11973

10

021-11956

029-07017

021-12943

MTH & LTH 95

Part No.

Quan.

064-13482

064-08822

064-08813

064-08814

064-09061

064-08815

021-11973

10

021-11743

029-07017

021-12943

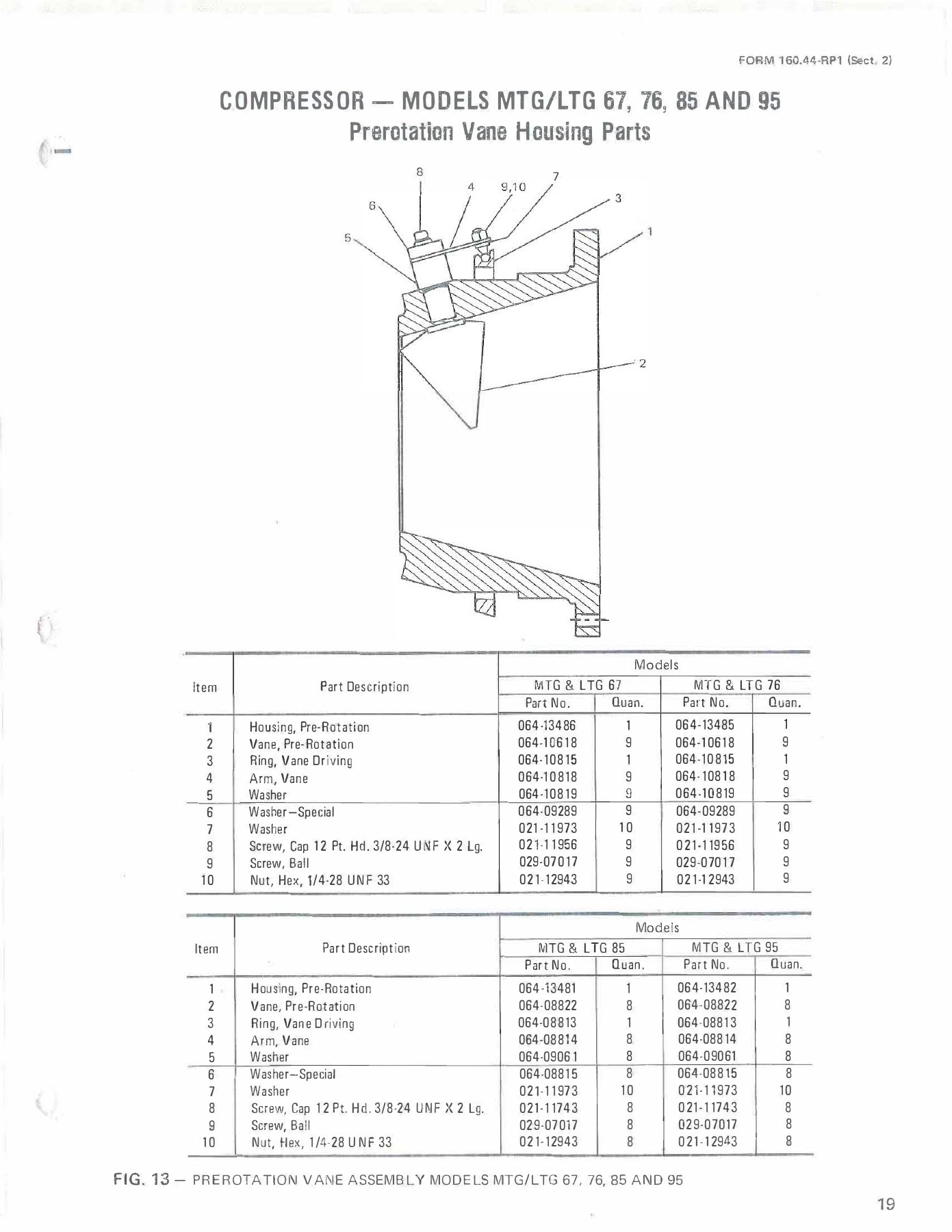

FIG.  13

- PREROTATION VANE ASSEMBLY - MODELS MTH/LTH 67, 76, 85 AND 95

19

Catalog 160-44-RP2-1 - Page 0018
