K1 COMPRESSOR

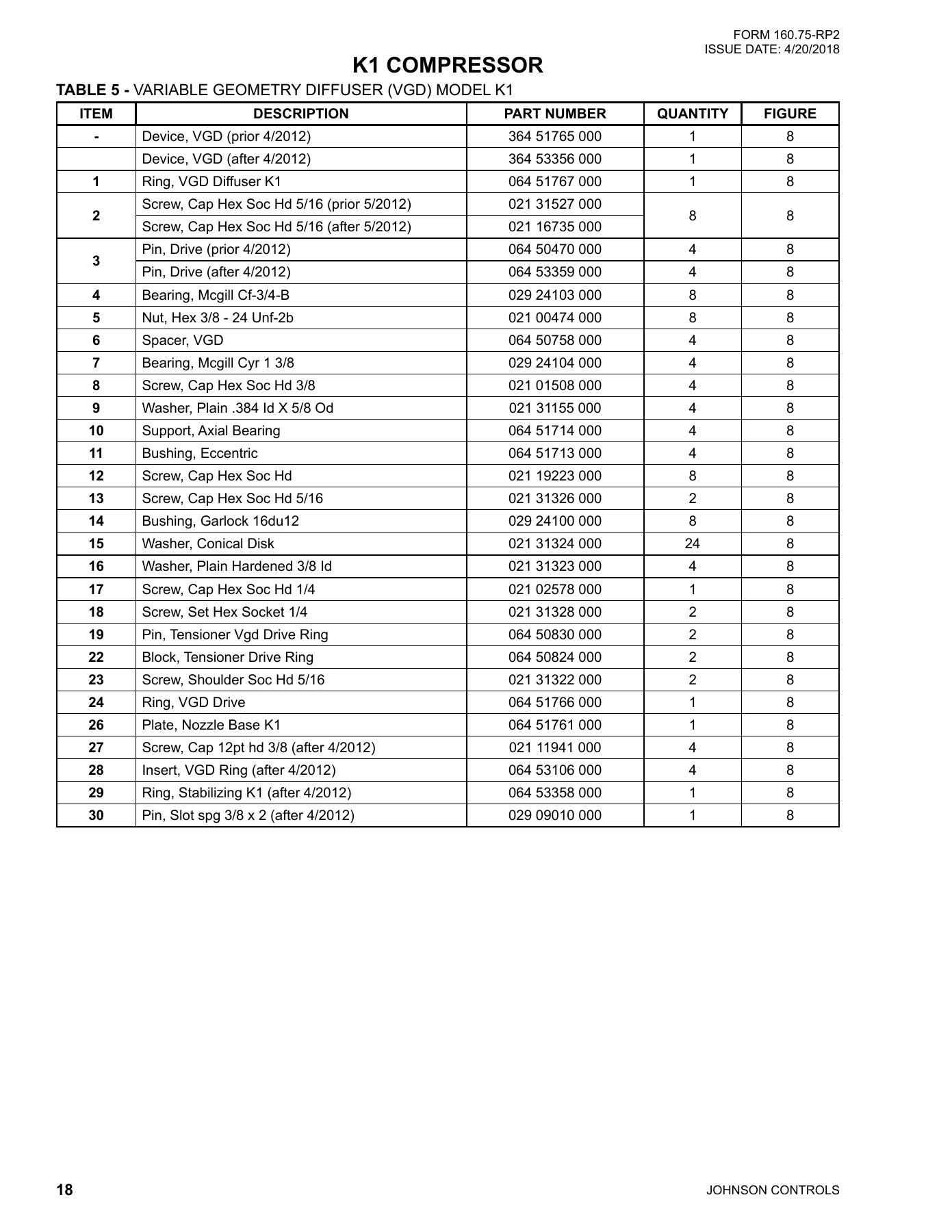

TABLE 5 -
VARIABLE GEOMETRY DIFFUSER (VGD) MODEL K1
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
FIGURE
-
Device, VGD (prior 4/2012)
364 51765 000
1
8
Device, VGD (after 4/2012)
364 53356 000
1
8
1
Ring, VGD Diffuser K1
064 51767 000
1
8
2
Screw, Cap Hex Soc Hd 5/16 (prior 5/2012)
021 31527 000
8
8
Screw, Cap Hex Soc Hd 5/16 (after 5/2012)
021 16735 000
3
Pin, Drive (prior 4/2012)
064 50470 000
4
8
Pin, Drive (after 4/2012)
064 53359 000
4
8
4
Bearing, Mcgill Cf-3/4-B
029 24103 000
8
8
5
Nut, Hex 3/8 - 24 Unf-2b
021 00474 000
8
8
6
Spacer, VGD
064 50758 000
4
8
7
Bearing, Mcgill Cyr 1 3/8
029 24104 000
4
8
8
Screw, Cap Hex Soc Hd 3/8
021 01508 000
4
8
9
Washer, Plain .384 Id X 5/8 Od
021 31155 000
4
8
10
Support, Axial Bearing
064 51714 000
4
8
11
Bushing, Eccentric
064 51713 000
4
8
12
Screw, Cap Hex Soc Hd
021 19223 000
8
8
13
Screw, Cap Hex Soc Hd 5/16
021 31326 000
2
8
14
Bushing, Garlock 16du12
029 24100 000
8
8
15
Washer, Conical Disk
021 31324 000
24
8
16
Washer, Plain Hardened 3/8 Id
021 31323 000
4
8
17
Screw, Cap Hex Soc Hd 1/4
021 02578 000
1
8
18
Screw, Set Hex Socket 1/4
021 31328 000
2
8
19
Pin, Tensioner Vgd Drive Ring
064 50830 000
2
8
22
Block, Tensioner Drive Ring
064 50824 000
2
8
23
Screw, Shoulder Soc Hd 5/16
021 31322 000
2
8
24
Ring, VGD Drive
064 51766 000
1
8
26
Plate, Nozzle Base K1
064 51761 000
1
8
27
Screw, Cap 12pt hd 3/8 (after 4/2012)
021 11941 000
4
8
28
Insert, VGD Ring (after 4/2012)
064 53106 000
4
8
29
Ring, Stabilizing K1 (after 4/2012)
064 53358 000
1
8
30
Pin, Slot spg 3/8 x 2 (after 4/2012)
029 09010 000
1
8
