K1 COMPRESSOR
K1
TABLE 4 -
PRE-ROTATION DEVICE (K1)
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
FIGURE
-
Device, PRV
364 51763 000
1
7
1
Ring, Vane Driving K1-2
064 51667 000
1
7
2
Vane, Pre-Rotation K1-2 (prior 7/2012)
064 51641 000
9
7
Vane, Pre-Rotation K1-2 (after 7/2012)
029 26311 000
3
Arm, PRV
064 47508 000
9
7
4
Spacer, PRV Arm K1-2
064 51668 000
9
7
5
Washer, Special PRV
064 47516 000
9
7
6
Washer, Plain 17/64 ID 1/2
021 11973 000
18
7
7
Stud, Ball 1/4-28 Unf
029 15924 000
9
7
8
Screw, Cap 12pt Hd 1/2
021 11515 000
9
7
9
Nut, Selflock 1/4-28 Unf
021 12943 000
9
7
11
Housing, PRV K1
064 51764 000
1
7
12
Bearing, Ball Deep Groove
029 25106 000
18
7
13
Spacer
064 51815 000
9
7
14
Spring, Crest-to-Crest Type
029 25107 000
9
7

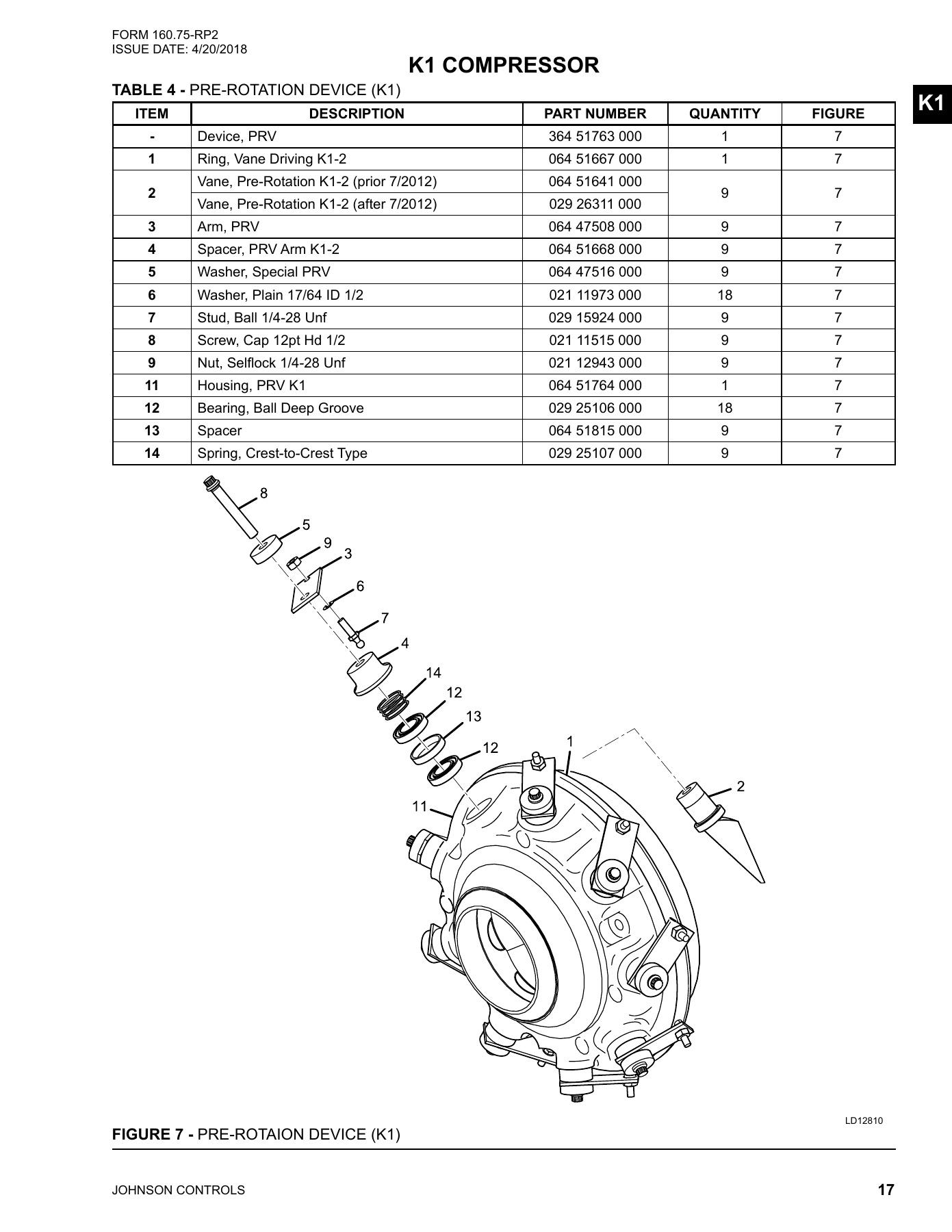

FIGURE 7 -
PRE-ROTAION DEVICE (K1)
LD12810
