FORM 160.73-RP5 (707)
17
JOHNSON CONTROLS

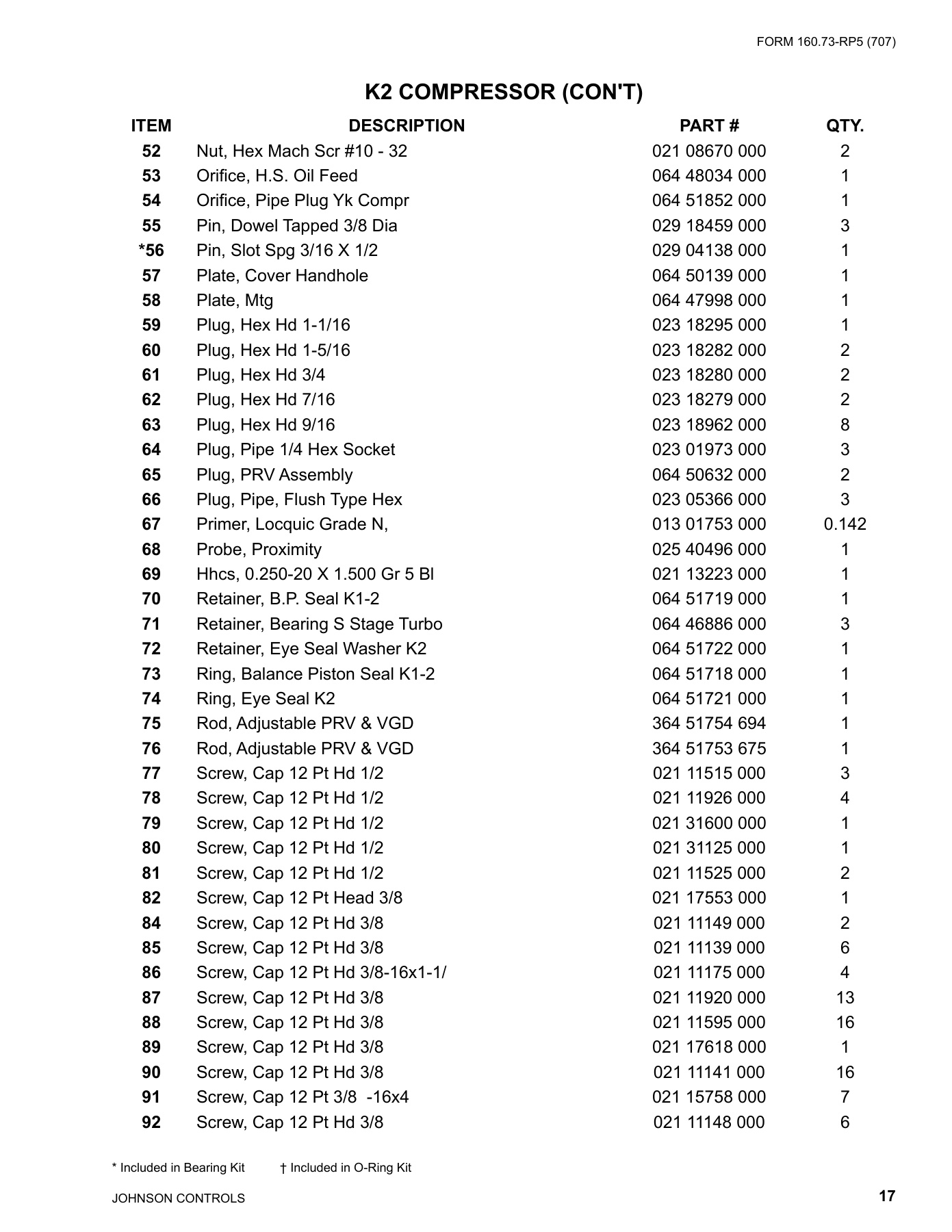

K2 COMPRESSOR (CONT)
* Included in Bearing Kit
† Included in O-Ring Kit
ITEM
DESCRIPTION
PART #
QTY.
52
Nut, Hex Mach Scr #10 - 32
021 08670 000
2
53
Orifice, H.S. Oil Feed
064 48034 000
1
54
Orifice, Pipe Plug Yk Compr
064 51852 000
1
55
Pin, Dowel Tapped 3/8 Dia
029 18459 000
3
*56
Pin, Slot Spg 3/16 X 1/2
029 04138 000
1
57
Plate, Cover Handhole
064 50139 000
1
58
Plate, Mtg
064 47998 000
1
59
Plug, Hex Hd 1-1/16
023 18295 000
1
60
Plug, Hex Hd 1-5/16
023 18282 000
2
61
Plug, Hex Hd 3/4
023 18280 000
2
62
Plug, Hex Hd 7/16
023 18279 000
2
63
Plug, Hex Hd 9/16
023 18962 000
8
64
Plug, Pipe 1/4 Hex Socket
023 01973 000
3
65
Plug, PRV Assembly
064 50632 000
2
66
Plug, Pipe, Flush Type Hex
023 05366 000
3
67
Primer, Locquic Grade N,
013 01753 000
0.142
68
Probe, Proximity
025 40496 000
1
69
Hhcs, 0.250-20 X 1.500 Gr 5 Bl
021 13223 000
1
70
Retainer, B.P. Seal K1-2
064 51719 000
1
71
Retainer, Bearing S Stage Turbo
064 46886 000
3
72
Retainer, Eye Seal Washer K2
064 51722 000
1
73
Ring, Balance Piston Seal K1-2
064 51718 000
1
74
Ring, Eye Seal K2
064 51721 000
1
75
Rod, Adjustable PRV & VGD
364 51754 694
1
76
Rod, Adjustable PRV & VGD
364 51753 675
1
77
Screw, Cap 12 Pt Hd 1/2
021 11515 000
3
78
Screw, Cap 12 Pt Hd 1/2
021 11926 000
4
79
Screw, Cap 12 Pt Hd 1/2
021 31600 000
1
80
Screw, Cap 12 Pt Hd 1/2
021 31125 000
1
81
Screw, Cap 12 Pt Hd 1/2
021 11525 000
2
82
Screw, Cap 12 Pt Head 3/8
021 17553 000
1
84
Screw, Cap 12 Pt Hd 3/8
021 11149 000
2
85
Screw, Cap 12 Pt Hd 3/8
021 11139 000
6
86
Screw, Cap 12 Pt Hd 3/8-16x1-1/
021 11175 000
4
87
Screw, Cap 12 Pt Hd 3/8
021 11920 000
13
88
Screw, Cap 12 Pt Hd 3/8
021 11595 000
16
89
Screw, Cap 12 Pt Hd 3/8
021 17618 000
1
90
Screw, Cap 12 Pt Hd 3/8
021 11141 000
16
91
Screw, Cap 12 Pt 3/8 -16x4
021 15758 000
7
92
Screw, Cap 12 Pt Hd 3/8
021 11148 000
6
