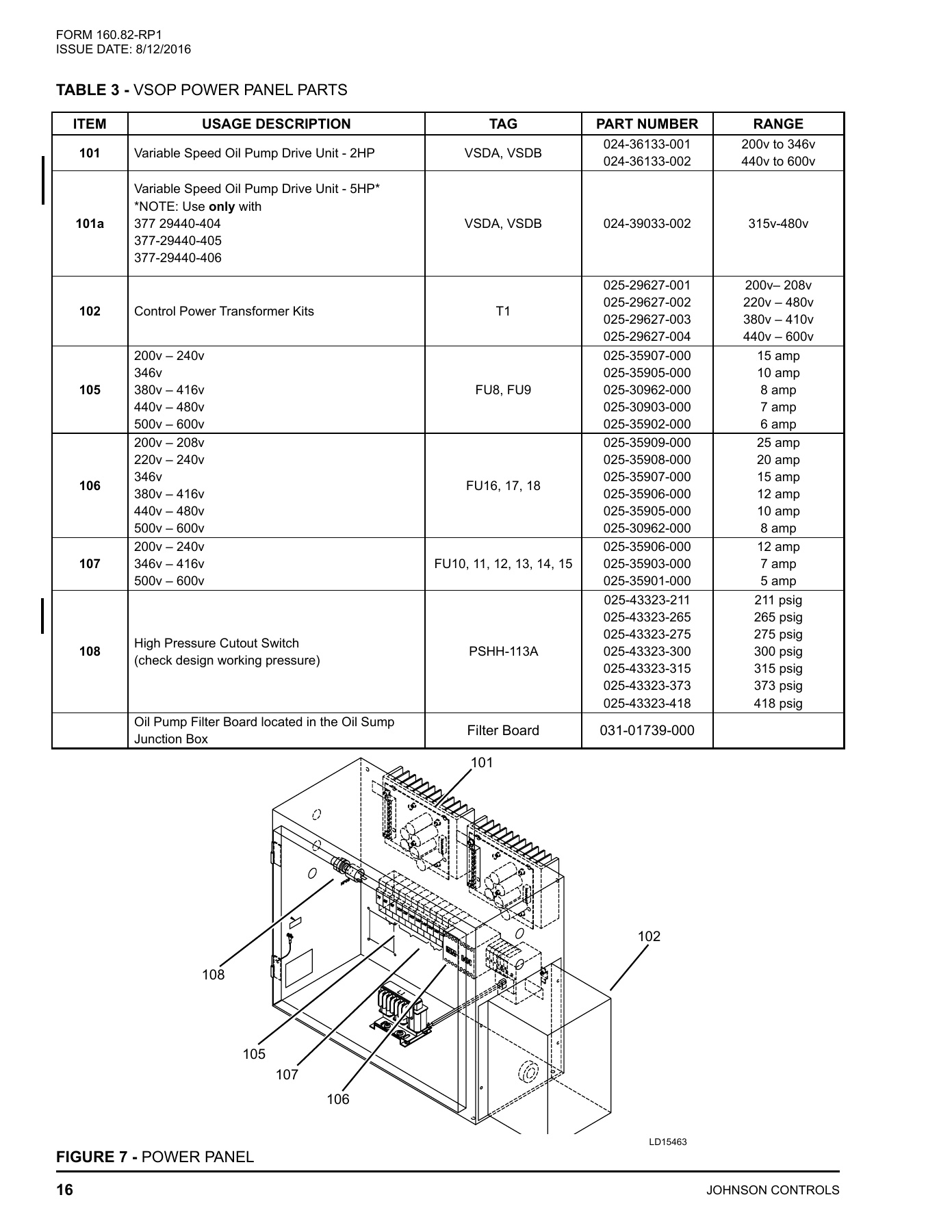

TABLE 3 -
VSOP POWER PANEL PARTS
ITEM
USAGE DESCRIPTION
TAG
PART NUMBER
RANGE
101
Variable Speed Oil Pump Drive Unit - 2HP
VSDA, VSDB
024-36133-001
024-36133-002
200v to 346v
440v to 600v
101a
Variable Speed Oil Pump Drive Unit - 5HP*
*NOTE: Use
only
with
377 29440-404
377-29440-405
377-29440-406
VSDA, VSDB
024-39033-002
315v-480v
102
Control Power Transformer Kits
T1
025-29627-001
025-29627-002
025-29627-003
025-29627-004
200v– 208v
220v – 480v
380v – 410v
440v – 600v
105
200v – 240v
346v
380v – 416v
440v – 480v
500v – 600v
FU8, FU9
025-35907-000
025-35905-000
025-30962-000
025-30903-000
025-35902-000
15 amp
10 amp
8 amp
7 amp
6 amp
106
200v – 208v
220v – 240v
346v
380v – 416v
440v – 480v
500v – 600v
FU16, 17, 18
025-35909-000
025-35908-000
025-35907-000
025-35906-000
025-35905-000
025-30962-000
25 amp
20 amp
15 amp
12 amp
10 amp
8 amp
107
200v – 240v
346v – 416v
500v – 600v
FU10, 11, 12, 13, 14, 15
025-35906-000
025-35903-000
025-35901-000
12 amp
7 amp
5 amp
108
High Pressure Cutout Switch
(check design working pressure)
PSHH-113A
025-43323-211
025-43323-265
025-43323-275
025-43323-300
025-43323-315
025-43323-373
025-43323-418
211 psig
265 psig
275 psig
300 psig
315 psig
373 psig
418 psig
Oil Pump Filter Board located in the Oil Sump
Junction Box
Filter Board
031-01739-000
LD15463
FIGURE 7 -
POWER PANEL
101
108
105
107
106
102
