TABLE 3
SERVICE AIDS
KIT PART NO.
364-47667-010, COIL*
EACH KIT
NO. OF KITS REQUIRED
CONTAINS
PER COMPRESSOR
(Parts for 2 cylinders)
4 CYL 6 CYL
8 CYL
Suction Valve
2
3
4
Discharge Valve
Suction Valve Springs
Discharge Valve Springs
Top Head Gasket
Discharge Manifold Gasket
TABLE 4
TOP HEAD VALVE REPLACEMENT KIT
KIT PART NO.
364-47666-020, WAVE
EACH KIT
NO. OF KITS REQUIRED
CONTAINS
PER COMPRESSOR
(Parts for 2 cylinders)
4 CYL 6 CYL
8 CYL
Suction Valve, Plate & Spgs.
2
3
4
Dschg. Valve Cage Assmbly
Top Head Gasket
Discharge Manifold Gasket
TABLE 5
TOP HEAD OVERHAUL KIT
GASKET KIT**
VALVE
BEARING
ROTOR
STATOR
COMPRESSOR MODEL
RETAINING
REMOVAL
MANDREL*
REMOVAL
4 CYLINDER
6 CYLINDER
8 CYLINDER
CLIP
TOOL
TOOL
364-48642
364-48643
364-48644
064-37274
364-37260
364-37273
029-13597
* Screws Into End of Crankshaft to Aid in Removing / Installing Rotor
** Depending on application, not all gaskets may be required.

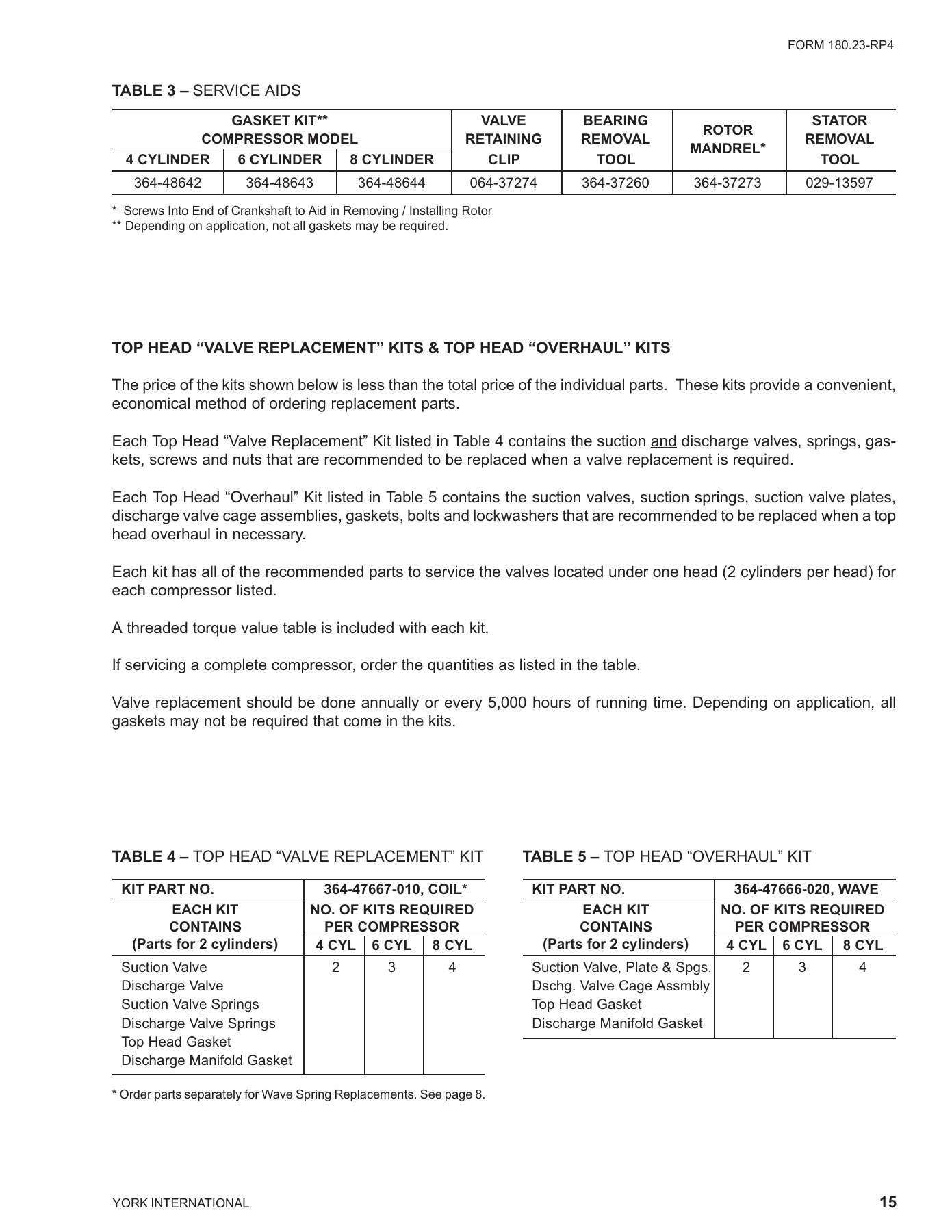

TOP HEAD VALVE REPLACEMENT KITS & TOP HEAD OVERHAUL KITS
The price of the kits shown below is less than the total price of the individual parts. These kits provide a convenient,
economical method of ordering replacement parts.
Each Top Head Valve Replacement Kit listed in Table 4 contains the suction and discharge valves, springs, gas-
kets, screws and nuts that are recommended to be replaced when a valve replacement is required.
Each Top Head Overhaul Kit listed in Table 5 contains the suction valves, suction springs, suction valve plates,
discharge valve cage assemblies, gaskets, bolts and lockwashers that are recommended to be replaced when a top
head overhaul in necessary.
Each kit has all of the recommended parts to service the valves located under one head (2 cylinders per head) for
each compressor listed.
A threaded torque value table is included with each kit.
If servicing a complete compressor, order the quantities as listed in the table.
Valve replacement should be done annually or every 5,000 hours of running time. Depending on application, all
gaskets may not be required that come in the kits.
* Order parts separately for Wave Spring Replacements. See page 8.
