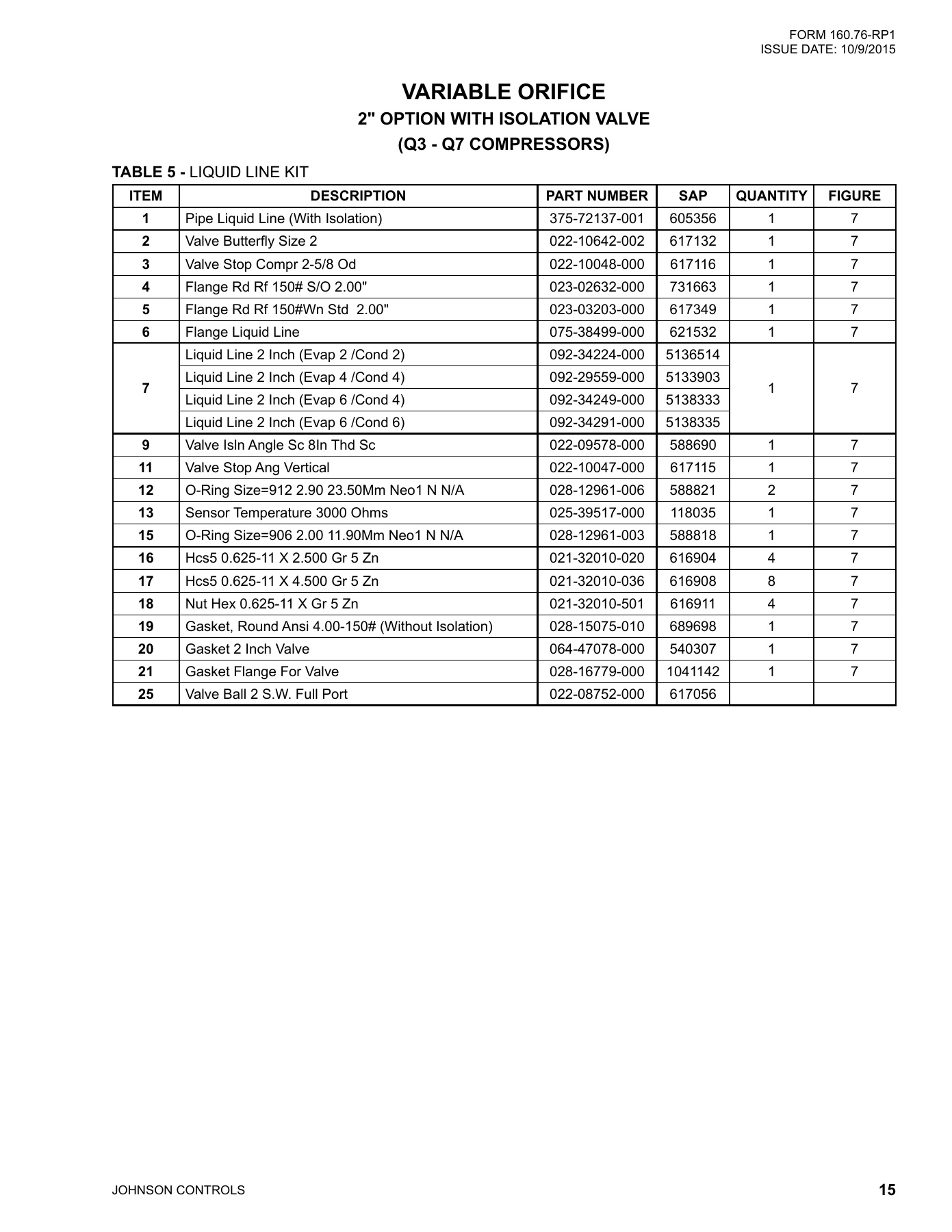

VARIABLE ORIFICE
2" OPTION WITH ISOLATION VALVE
(Q3 - Q7 COMPRESSORS)
TABLE 5 -
LIQUID LINE KIT
ITEM
DESCRIPTION
PART NUMBER
SAP
QUANTITY
FIGURE
1
Pipe Liquid Line (With Isolation)
375-72137-001
605356
1
7
2
Valve Butterfly Size 2
022-10642-002
617132
1
7
3
Valve Stop Compr 2-5/8 Od
022-10048-000
617116
1
7
4
Flange Rd Rf 150# S/O 2.00"
023-02632-000
731663
1
7
5
Flange Rd Rf 150#Wn Std 2.00"
023-03203-000
617349
1
7
6
Flange Liquid Line
075-38499-000
621532
1
7
7
Liquid Line 2 Inch (Evap 2 /Cond 2)
092-34224-000
5136514
1
7
Liquid Line 2 Inch (Evap 4 /Cond 4)
092-29559-000
5133903
Liquid Line 2 Inch (Evap 6 /Cond 4)
092-34249-000
5138333
Liquid Line 2 Inch (Evap 6 /Cond 6)
092-34291-000
5138335
9
Valve Isln Angle Sc 8In Thd Sc
022-09578-000
588690
1
7
11
Valve Stop Ang Vertical
022-10047-000
617115
1
7
12
O-Ring Size=912 2.90 23.50Mm Neo1 N N/A
028-12961-006
588821
2
7
13
Sensor Temperature 3000 Ohms
025-39517-000
118035
1
7
15
O-Ring Size=906 2.00 11.90Mm Neo1 N N/A
028-12961-003
588818
1
7
16
Hcs5 0.625-11 X 2.500 Gr 5 Zn
021-32010-020
616904
4
7
17
Hcs5 0.625-11 X 4.500 Gr 5 Zn
021-32010-036
616908
8
7
18
Nut Hex 0.625-11 X Gr 5 Zn
021-32010-501
616911
4
7
19
Gasket, Round Ansi 4.00-150# (Without Isolation)
028-15075-010
689698
1
7
20
Gasket 2 Inch Valve
064-47078-000
540307
1
7
21
Gasket Flange For Valve
028-16779-000
1041142
1
7
25
Valve Ball 2 S.W. Full Port
022-08752-000
617056
