Q7, P7 - P9, AND H9 COMPRESSORS

UNIT COMPONENTS

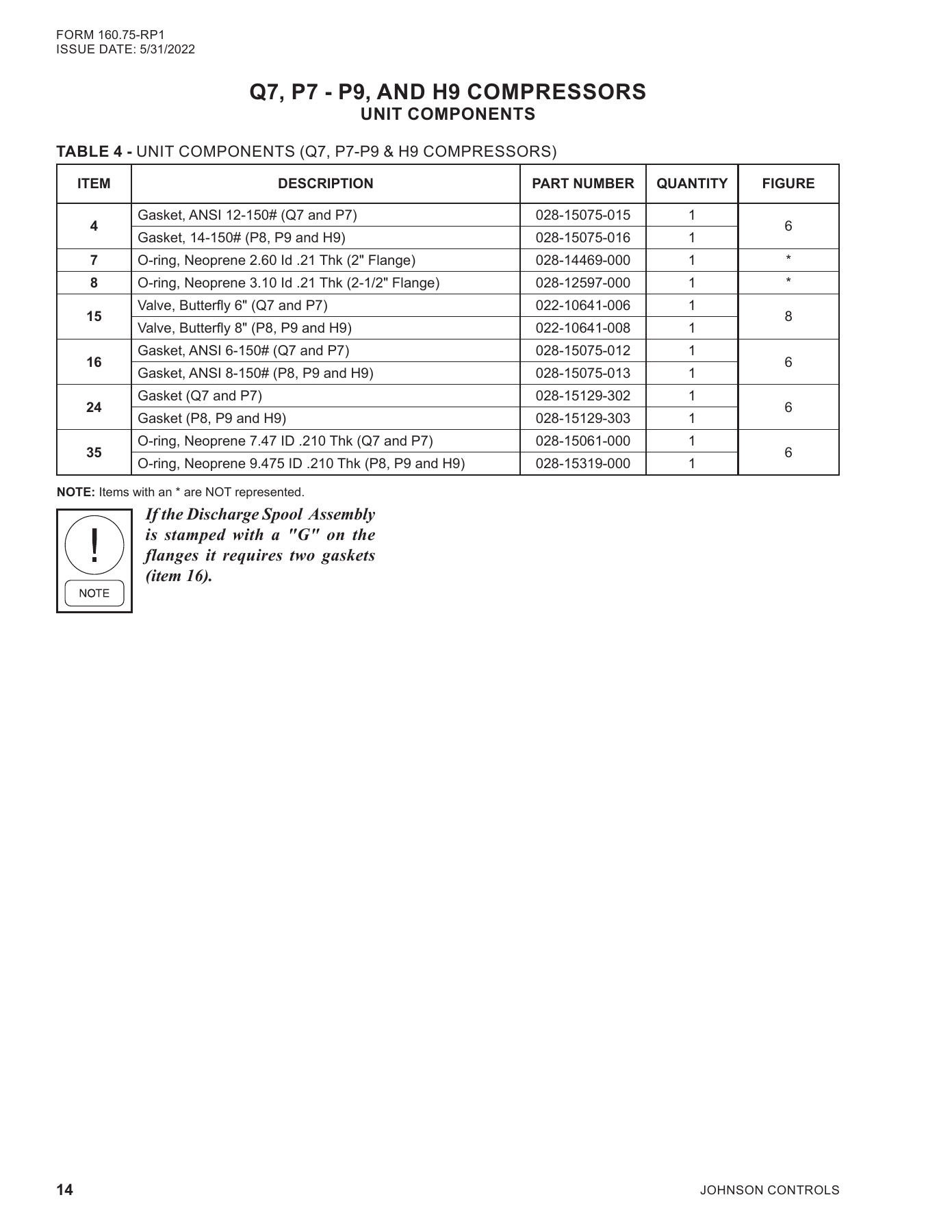

TABLE 4 -

UNIT COMPONENTS (Q7, P7-P9 & H9 COMPRESSORS)

ITEM

DESCRIPTION

PART NUMBER

QUANTITY

FIGURE

4

Gasket, ANSI 12-150# (Q7 and P7)

028-15075-015

1

6

Gasket, 14-150# (P8, P9 and H9)

028-15075-016

1

7

O-ring, Neoprene 2.60 Id .21 Thk (2" Flange)

028-14469-000

1

*

8

O-ring, Neoprene 3.10 Id .21 Thk (2-1/2" Flange)

028-12597-000

1

*

15

Valve, Butterfly 6" (Q7 and P7)

022-10641-006

1

8

Valve, Butterfly 8" (P8, P9 and H9)

022-10641-008

1

16

Gasket, ANSI 6-150# (Q7 and P7)

028-15075-012

1

6

Gasket, ANSI 8-150# (P8, P9 and H9)

028-15075-013

1

24

Gasket (Q7 and P7)

028-15129-302

1

6

Gasket (P8, P9 and H9)

028-15129-303

1

35

O-ring, Neoprene 7.47 ID .210 Thk (Q7 and P7)

028-15061-000

1

6

O-ring, Neoprene 9.475 ID .210 Thk (P8, P9 and H9)

028-15319-000

1

NOTE:

 Items with an * are NOT represented.

If the Discharge Spool  Assembly

is stamped with a "G" on the

flanges it requires two gaskets

(item 16).
