JOHNSON CONTROLS
13
FORM 160.69-RP2 (522)

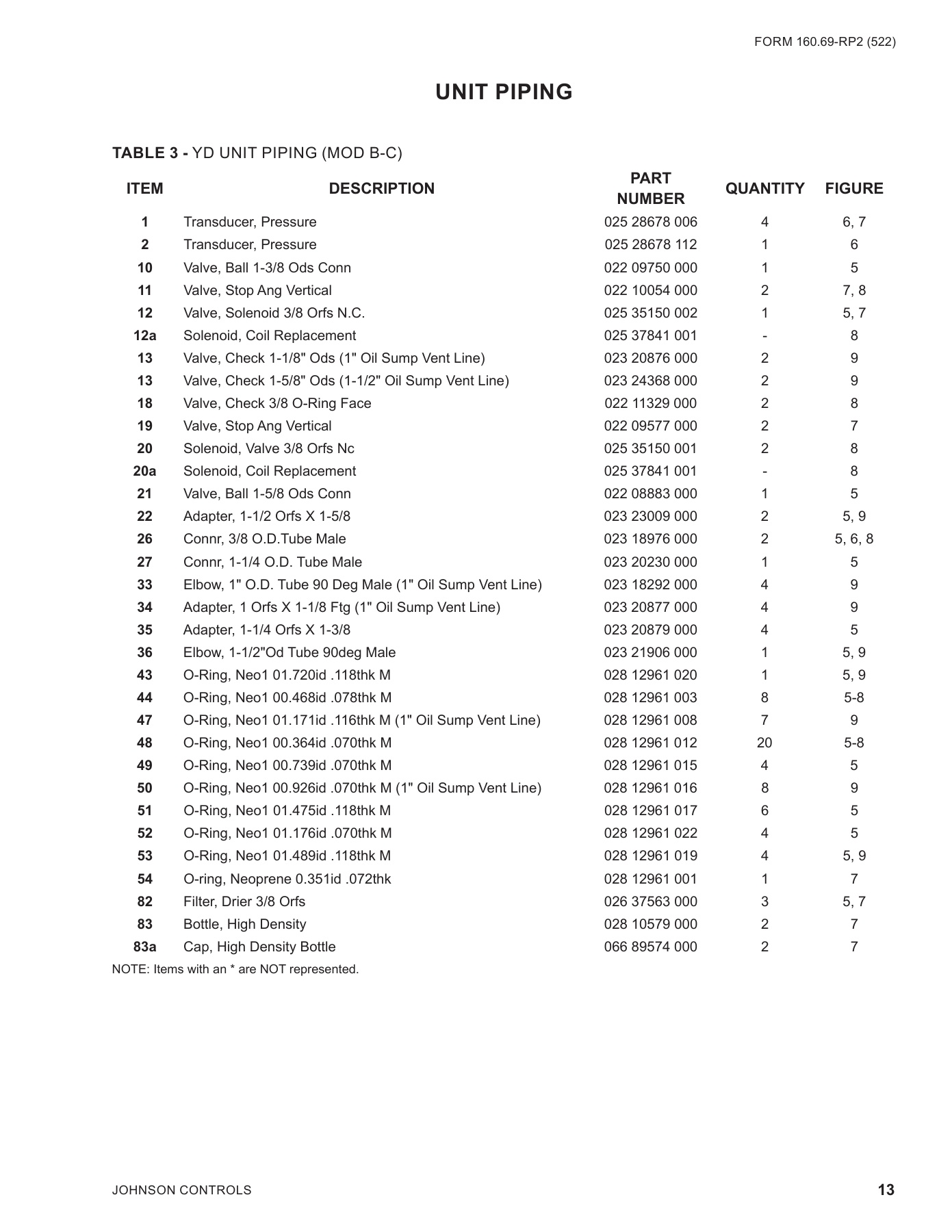

TABLE 3 -
YD UNIT PIPING (MOD B-C)
ITEM
DESCRIPTION
PART
NUMBER
QUANTITY FIGURE
1
Transducer, Pressure
025 28678 006
4
6, 7
2
Transducer, Pressure
025 28678 112
1
6
10
Valve, Ball 1-3/8 Ods Conn
022 09750 000
1
5
11
Valve, Stop Ang Vertical
022 10054 000
2
7, 8
12
Valve, Solenoid 3/8 Orfs N.C.
025 35150 002
1
5, 7
12a
Solenoid, Coil Replacement
025 37841 001
-
8
13
Valve, Check 1-1/8" Ods (1" Oil Sump Vent Line)
023 20876 000
2
9
13
Valve, Check 1-5/8" Ods (1-1/2" Oil Sump Vent Line)
023 24368 000
2
9
18
Valve, Check 3/8 O-Ring Face
022 11329 000
2
8
19
Valve, Stop Ang Vertical
022 09577 000
2
7
20
Solenoid, Valve 3/8 Orfs Nc
025 35150 001
2
8
20a
Solenoid, Coil Replacement
025 37841 001
-
8
21
Valve, Ball 1-5/8 Ods Conn
022 08883 000
1
5
22
Adapter, 1-1/2 Orfs X 1-5/8
023 23009 000
2
5, 9
26
Connr, 3/8 O.D.Tube Male
023 18976 000
2
5, 6, 8
27
Connr, 1-1/4 O.D. Tube Male
023 20230 000
1
5
33
Elbow, 1" O.D. Tube 90 Deg Male (1" Oil Sump Vent Line)
023 18292 000
4
9
34
Adapter, 1 Orfs X 1-1/8 Ftg (1" Oil Sump Vent Line)
023 20877 000
4
9
35
Adapter, 1-1/4 Orfs X 1-3/8
023 20879 000
4
5
36
Elbow, 1-1/2"Od Tube 90deg Male
023 21906 000
1
5, 9
43
O-Ring, Neo1 01.720id .118thk M
028 12961 020
1
5, 9
44
O-Ring, Neo1 00.468id .078thk M
028 12961 003
8
5-8
47
O-Ring, Neo1 01.171id .116thk M (1" Oil Sump Vent Line)
028 12961 008
7
9
48
O-Ring, Neo1 00.364id .070thk M
028 12961 012
20
5-8
49
O-Ring, Neo1 00.739id .070thk M
028 12961 015
4
5
50
O-Ring, Neo1 00.926id .070thk M (1" Oil Sump Vent Line)
028 12961 016
8
9
51
O-Ring, Neo1 01.475id .118thk M
028 12961 017
6
5
52
O-Ring, Neo1 01.176id .070thk M
028 12961 022
4
5
53
O-Ring, Neo1 01.489id .118thk M
028 12961 019
4
5, 9
54
O-ring, Neoprene 0.351id .072thk
028 12961 001
1
7
82
Filter, Drier 3/8 Orfs
026 37563 000
3
5, 7
83
Bottle, High Density
028 10579 000
2
7
83a
Cap, High Density Bottle
066 89574 000
2
7
NOTE: Items with an * are NOT represented.
UNIT PIPING
