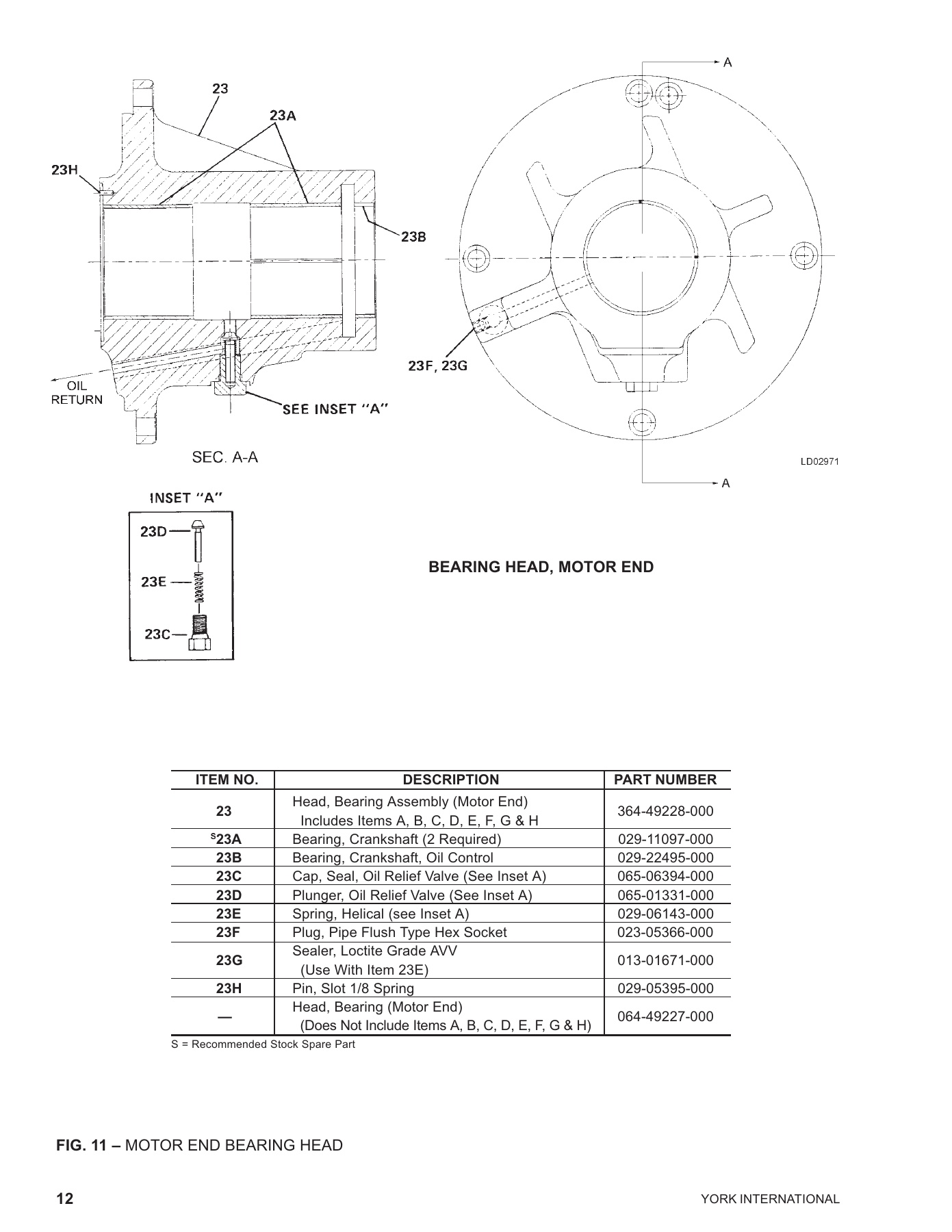

FIG. 11 –

MOTOR END BEARING HEAD

ITEM NO.

DESCRIPTION

PART NUMBER

23

Head, Bearing Assembly (Motor End)

364-49228-000

  Includes Items A, B, C, D, E, F, G & H

S

23A

Bearing, Crankshaft (2 Required)

029-11097-000

23B

Bearing, Crankshaft, Oil Control

029-22495-000

23C

Cap, Seal, Oil Relief Valve (See Inset A)

065-06394-000

23D

Plunger, Oil Relief Valve (See Inset A)

065-01331-000

23E

Spring, Helical (see Inset A)

029-06143-000

23F

Plug, Pipe Flush Type Hex Socket

023-05366-000

Sealer, Loctite Grade AVV

013-01671-000

23G

  (Use With Item 23E)

23H

Pin, Slot 1/8 Spring

029-05395-000

—

Head, Bearing (Motor End)

064-49227-000

  (Does Not Include Items A, B, C, D, E, F, G & H)

S = Recommended Stock Spare Part

BEARING HEAD, MOTOR END
