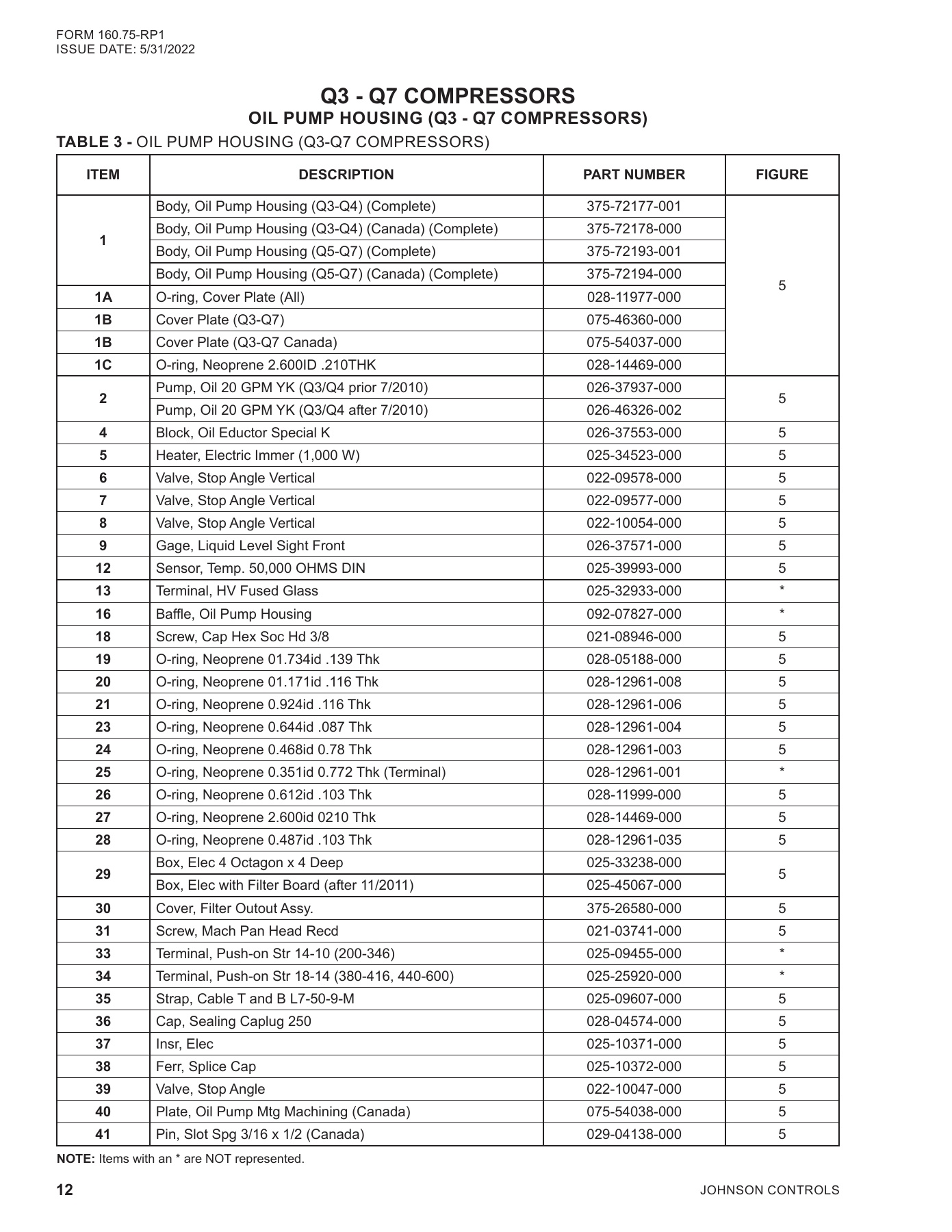

Q3 - Q7 COMPRESSORS
OIL PUMP HOUSING (Q3 - Q7 COMPRESSORS)
TABLE 3 -
OIL PUMP HOUSING (Q3-Q7 COMPRESSORS)
ITEM
DESCRIPTION
PART NUMBER
FIGURE
1
Body, Oil Pump Housing (Q3-Q4) (Complete)
375-72177-001
5
Body, Oil Pump Housing (Q3-Q4) (Canada) (Complete)
375-72178-000
Body, Oil Pump Housing (Q5-Q7) (Complete)
375-72193-001
Body, Oil Pump Housing (Q5-Q7) (Canada) (Complete)
375-72194-000
1A
O-ring, Cover Plate (All)
028-11977-000
1B
Cover Plate (Q3-Q7)
075-46360-000
1B
Cover Plate (Q3-Q7 Canada)
075-54037-000
1C
O-ring, Neoprene 2.600ID .210THK
028-14469-000
2
Pump, Oil 20 GPM YK (Q3/Q4 prior 7/2010)
026-37937-000
5
Pump, Oil 20 GPM YK (Q3/Q4 after 7/2010)
026-46326-002
4
Block, Oil Eductor Special K
026-37553-000
5
5
Heater, Electric Immer (1,000 W)
025-34523-000
5
6
Valve, Stop Angle Vertical
022-09578-000
5
7
Valve, Stop Angle Vertical
022-09577-000
5
8
Valve, Stop Angle Vertical
022-10054-000
5
9
Gage, Liquid Level Sight Front
026-37571-000
5
12
Sensor, Temp. 50,000 OHMS DIN
025-39993-000
5
13
Terminal, HV Fused Glass
025-32933-000
*
16
Baffle, Oil Pump Housing
092-07827-000
*
18
Screw, Cap Hex Soc Hd 3/8
021-08946-000
5
19
O-ring, Neoprene 01.734id .139 Thk
028-05188-000
5
20
O-ring, Neoprene 01.171id .116 Thk
028-12961-008
5
21
O-ring, Neoprene 0.924id .116 Thk
028-12961-006
5
23
O-ring, Neoprene 0.644id .087 Thk
028-12961-004
5
24
O-ring, Neoprene 0.468id 0.78 Thk
028-12961-003
5
25
O-ring, Neoprene 0.351id 0.772 Thk (Terminal)
028-12961-001
*
26
O-ring, Neoprene 0.612id .103 Thk
028-11999-000
5
27
O-ring, Neoprene 2.600id 0210 Thk
028-14469-000
5
28
O-ring, Neoprene 0.487id .103 Thk
028-12961-035
5
29
Box, Elec 4 Octagon x 4 Deep
025-33238-000
5
Box, Elec with Filter Board (after 11/2011)
025-45067-000
30
Cover, Filter Outout Assy.
375-26580-000
5
31
Screw, Mach Pan Head Recd
021-03741-000
5
33
Terminal, Push-on Str 14-10 (200-346)
025-09455-000
*
34
Terminal, Push-on Str 18-14 (380-416, 440-600)
025-25920-000
*
35
Strap, Cable T and B L7-50-9-M
025-09607-000
5
36
Cap, Sealing Caplug 250
028-04574-000
5
37
Insr, Elec
025-10371-000
5
38
Ferr, Splice Cap
025-10372-000
5
39
Valve, Stop Angle
022-10047-000
5
40
Plate, Oil Pump Mtg Machining (Canada)
075-54038-000
5
41
Pin, Slot Spg 3/16 x 1/2 (Canada)
029-04138-000
5
NOTE:
Items with an * are NOT represented.
