Item
1
2
3
4
5
6
7
8
9
10
11
12
13
7
8
9
10
11
12
Description
Complete Coupling Assembly
Hub, Compressor
Hub, Driver
Ring, Clamp
Washer, Coupling
Screw, Soc.
Nut
Spacer .105 Thk.
Spacer .110 Thk.
Spacer .115 Thk.
Spacer .120 Thk.
Spacer .130 Thk.
Spacer .150 Thk.
Nut 12 Pt.

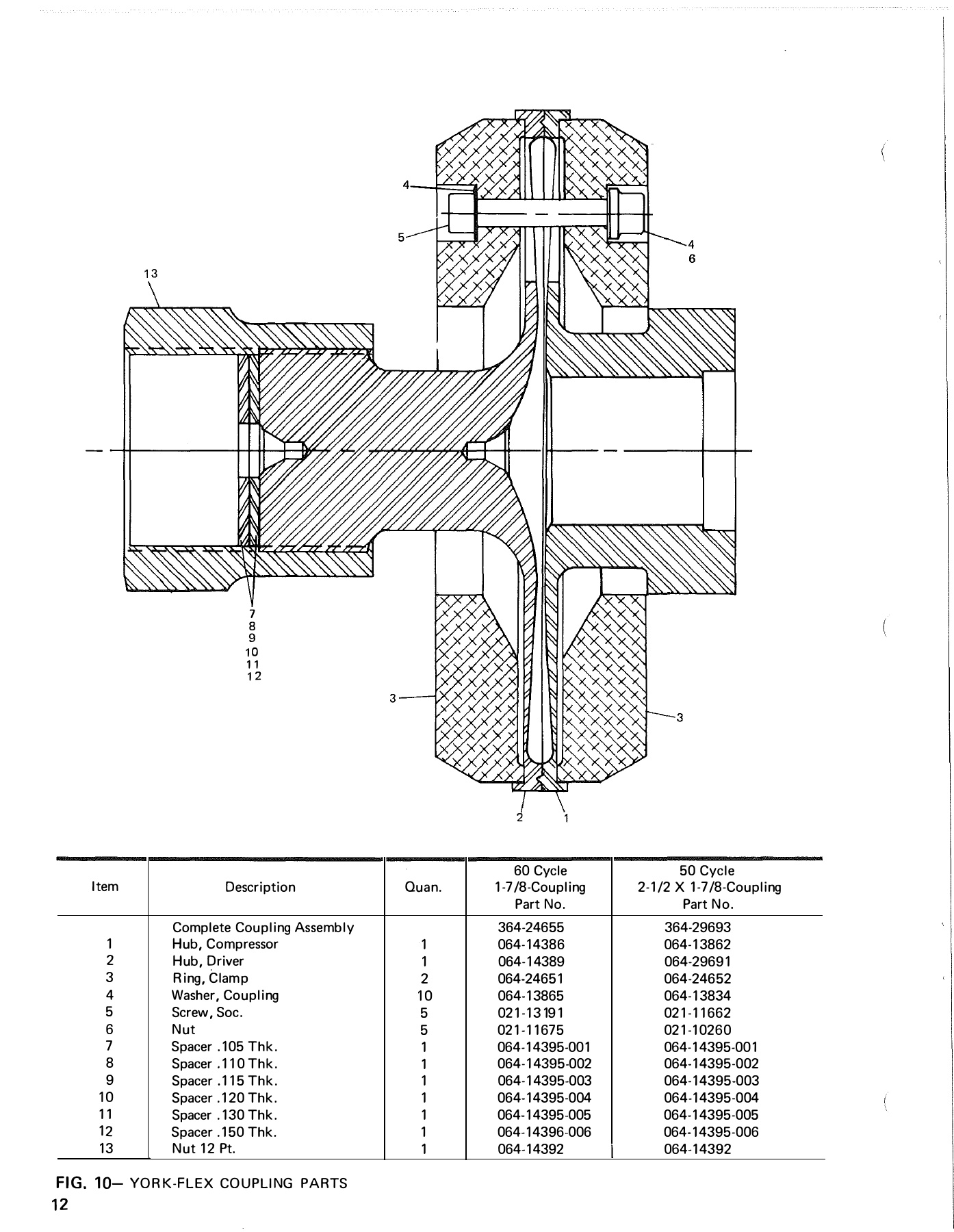

FIG. 10-
YORK-FLEX COUPLING PARTS
12
2
60 Cycle
50 Cycle
Guan.
1-7/8-Coupling
2-1/2 X 1-7/8-Coupling
Part No.
Part No.
364-24655
364-29693
1
064-14386
064-13862
1
064-14389
064-29691
2
064-24651
064-24652
10
064-13865
064-13834
5
021-13191
021-11662
5
021-11675
021-10260
1
064-14395-001
064-14395-001
1
064-14395-002
064-14395-002
1
064-14395-003
064-14395-003
1
064-14395-004
064-14395-004
1
064-14395-005
064-14395-005
1
064-14396-006
064-14395-006
1
064-14392
064-14392
