8
ITEM I
.
�w.
I
1
2
3
4
5
6
7
8
FORM 18023-RP3
DESCRIPTION
PART
�m.
Crankcase F loat
364-26809
Includes:
Cover, Handhole
664-26808
Adapter
064-26807
Valve Body
064-45531
Lever, Float
068-04542
Valve, Float
068-04545
Pin, Valve
068-01594
Pin, Leve1·
065-02071
Ball, Float
022-00530
9
Nut-Hex Self-Locking (5/Pkg.)
221-09610-800
10
Lock washer
11
Nut, Hex Jam (10/Pkg.)
12
Pin, Roll (5/Pkg.)

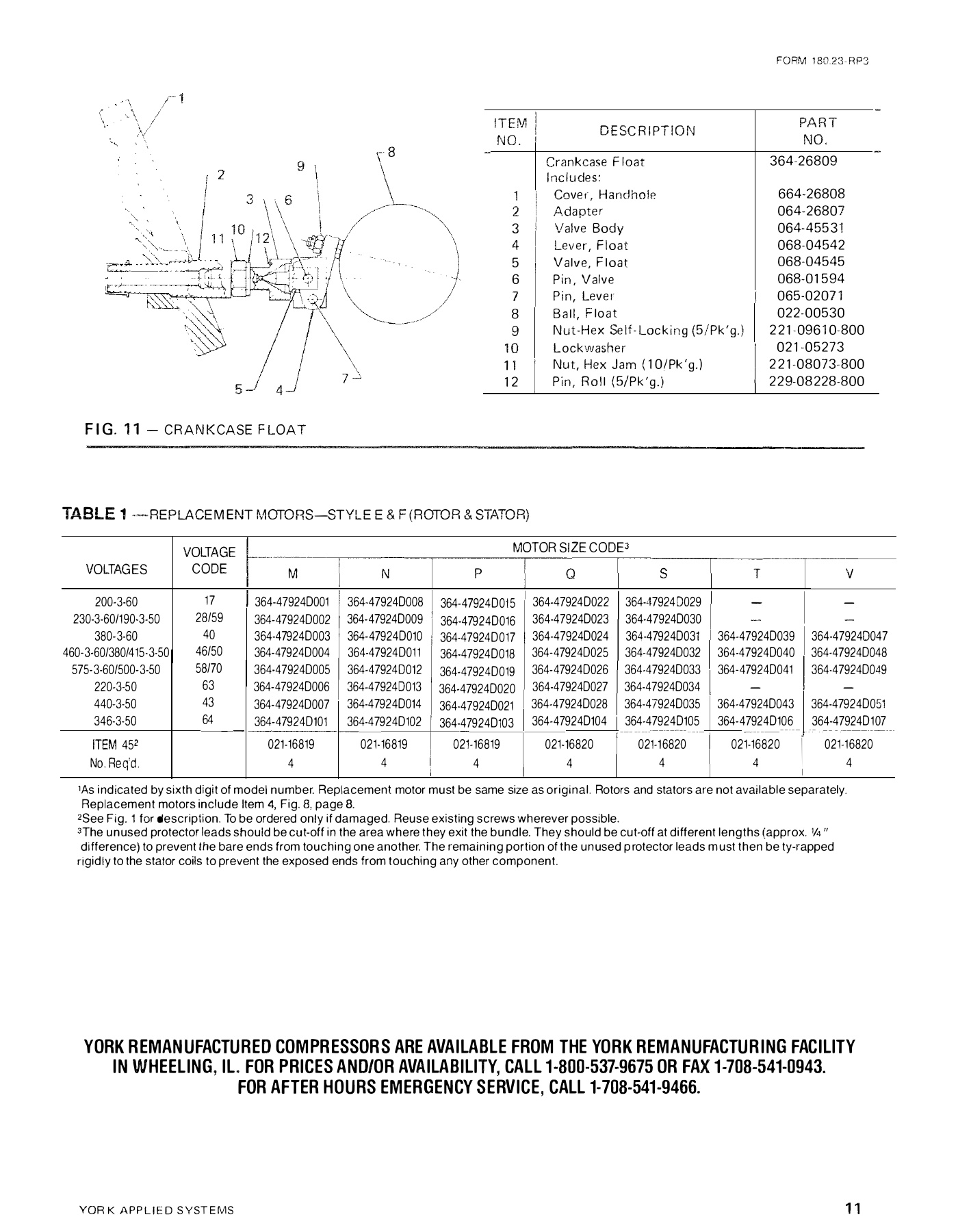

FIG. 11
- CRANKCASE FLOAT
TABLE 1
-REPLACEMENT MOTORS-STYLE E & F (ROTOR & STATOR)
VOLTAGE
MOTOR SIZE CODE3
�--·
VOLTAGES
CODE
M
N
p
0
s
200-3-60
17
364-47924D001 364-47924D008 364-47924D0I5 364-47924D022 364-47924 D029
230-3-60/190-3-50
28/59
364-47924D002 364-47924D009 364-47924D016 364-47924D023 364-47924D030
380-3-60
40
364-47924D003 364-47924D010 364-47924D017 364-47924D024 364-47924D031
460-3-60/380/415-3-50
46/50
364-47924D004 364-47924D011 364-47924D018 364-47924D025 364-47924D032
575-3-60/500-3-50
58/70
364-47924D005 364-479240012 364-47924D019 364-47924D026 364-47924D033
220-3-50
63
364-47924D006 364-47924D013 364-47924D020 364-47924D027 364-47924D034
440-3-50
43
364-47924D007 364-47924D014 364-47924D021 364-47924D028 364-47924D035
346-3-50
64
364-47924D101
364-47924D102 364-47924D103 364-47924D104 364-47924D105
--- ------
ITEM 452
021-16819
021-16819
021-16819
021-16820
021-16820
No. Reqd.
4
4
I
4
4
4
021-05273
221-08073-800
229-08228-800
T
-
-
364-47924D039
364-47924D040
364-47924D041
-
364-47924D043
364-47924D106
--·--
021-16820
I
4
V
-
-
364-479240047
364-47924D048
364-47924D049
-
364-47924D051
364-47924D107
- - - - - -----------
021-16820
4
1As indicated by sixth digit of model number. Replacement motor must be same size as original. Rotors and stators are not available separately.
Replacement motors include Item 4, Fig. 8, page 8.
2
See Fig. 1 for description. To be ordered only if damaged. Reuse existing screws wherever possible.
3The unused protector leads should be cut-off in the area where they exit the bundle. They should be cut-off at different lengths (approx. ¼"
difference) to prevent the bare ends from touching one another. The remaining portion of the unused protector leads must then be ty-rapped
rigidly to the stator coils to prevent the exposed ends from touching any other component .
YORK REMANUFACTURED COMPRESSORS ARE AVAILABLE FROM THE YORK REMANUFACTURING FACILITY
IN WHEELING, IL. FOR PRICES AND/OR AVAILABILITY, CALL 1-800-537-9675 OR FAX 1-708-541-0943.
FOR AFTER HOURS EMERGENCY SERVICE, CALL 1-708-541-9466.
YORK APPLIED SYSTEMS
