S = Recommended Stock Spare Part

ITEM NO.

DESCRIPTION

PART NUMBER

S

52

Piston Assembly

364-46757-000

    Includes Items A, B, C, & D

52A

Piston, Bare

064-46538-000

52B

Ring, Piston (2 Req’d Per Piston)

029-15175-000

52C

Pin, Piston

029-13090-000

52D

Retainer (2 Req’d Per Piston)

029-13091-000

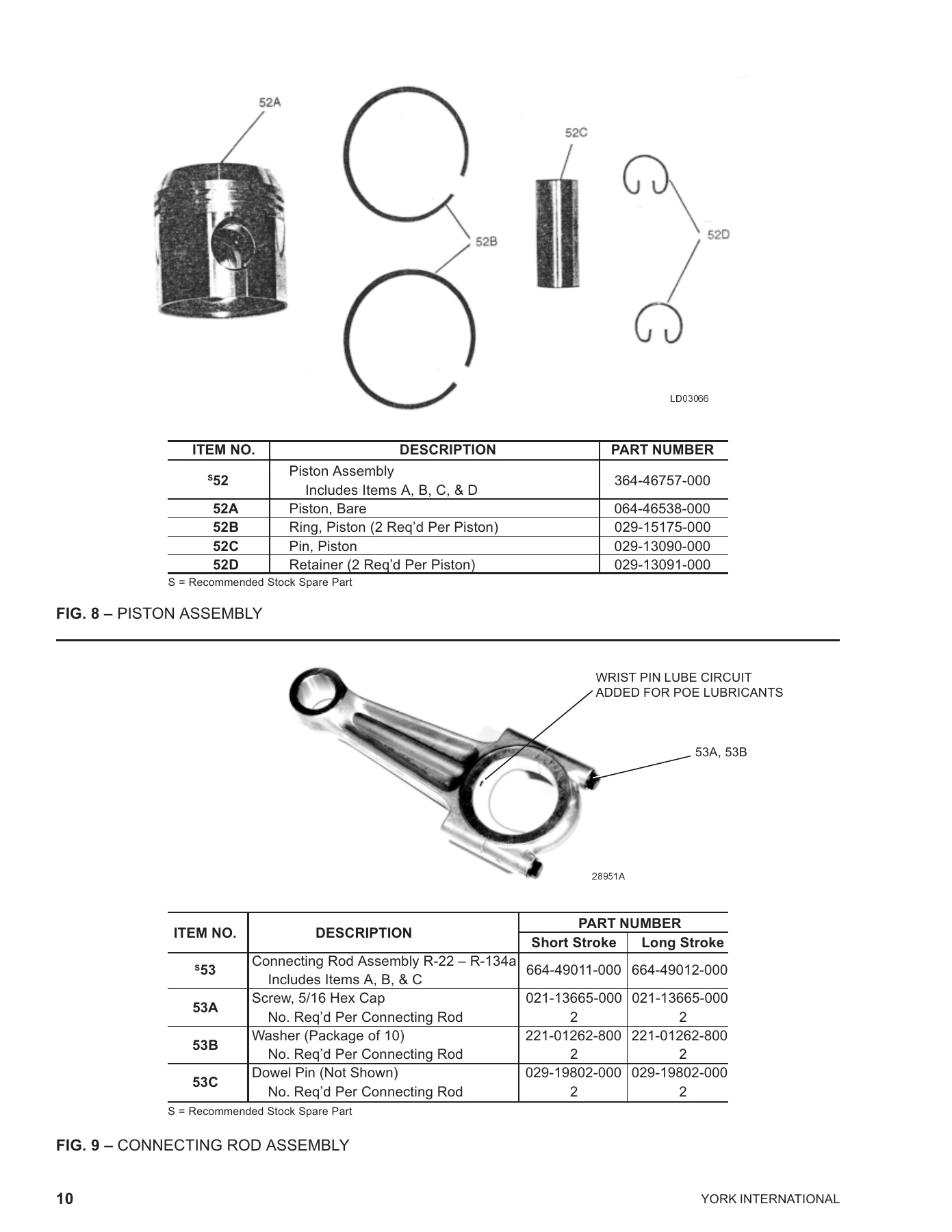

FIG. 8 –

PISTON ASSEMBLY

FIG. 9 –

CONNECTING ROD ASSEMBLY

S = Recommended Stock Spare Part

ITEM NO.

DESCRIPTION

PART NUMBER

Short Stroke

Long Stroke

S

53

Connecting Rod Assembly R-22 – R-134a

664-49011-000 664-49012-000

    Includes Items A, B, & C

53A

Screw, 5/16 Hex Cap

021-13665-000 021-13665-000

    No. Req’d Per Connecting Rod

2

2

53B

Washer (Package of 10)

221-01262-800 221-01262-800

    No. Req’d Per Connecting Rod

2

2

53C

Dowel Pin (Not Shown)

029-19802-000 029-19802-000

    No. Req’d Per Connecting Rod

2

2

LD03066

28951A

53A, 53B

WRIST PIN LUBE CIRCUIT

ADDED FOR POE LUBRICANTS
