DESCRIPTION

PART NUMBER

52

Piston Assembly

664-46757-000

Includes A, B, C, & D

52A

Piston, Bare

064-46538-000

52B

Ring, Piston  (2 Req’d. Per Piston)

029-15175-000

52C

Pin, Piston

029-13090-000

52D

Retainer  (2 Req’d. Per Piston)

029-13091-000

ITEM

DESCRIPTION

PART NUMBER

NO.

SHORT STROKE

LONG STROKE

53

Connecting Rod Assembly (with Wrist Pin

664-49011-000

664-49012-000

Lube Circuit required for POE Lubricants)
   Includes Items A, B, & C

(Replaces Rod Assembly) (Undrilled)

664-47256-000

664-47257-000

53A

Screw, 5/16 Hex Cap

021-13665-000

021-13665-000

No. Req’d. Per Connecting Rod

2

2

53B

Washer (Package of 10)

221-01262-800

221-01262-800

No. Req’d. Per Connecting Rod

2

2

53C

Dowel Pin

029-19802-000

029-19802-000

No. Req’d. Per Connecting Rod

2

2

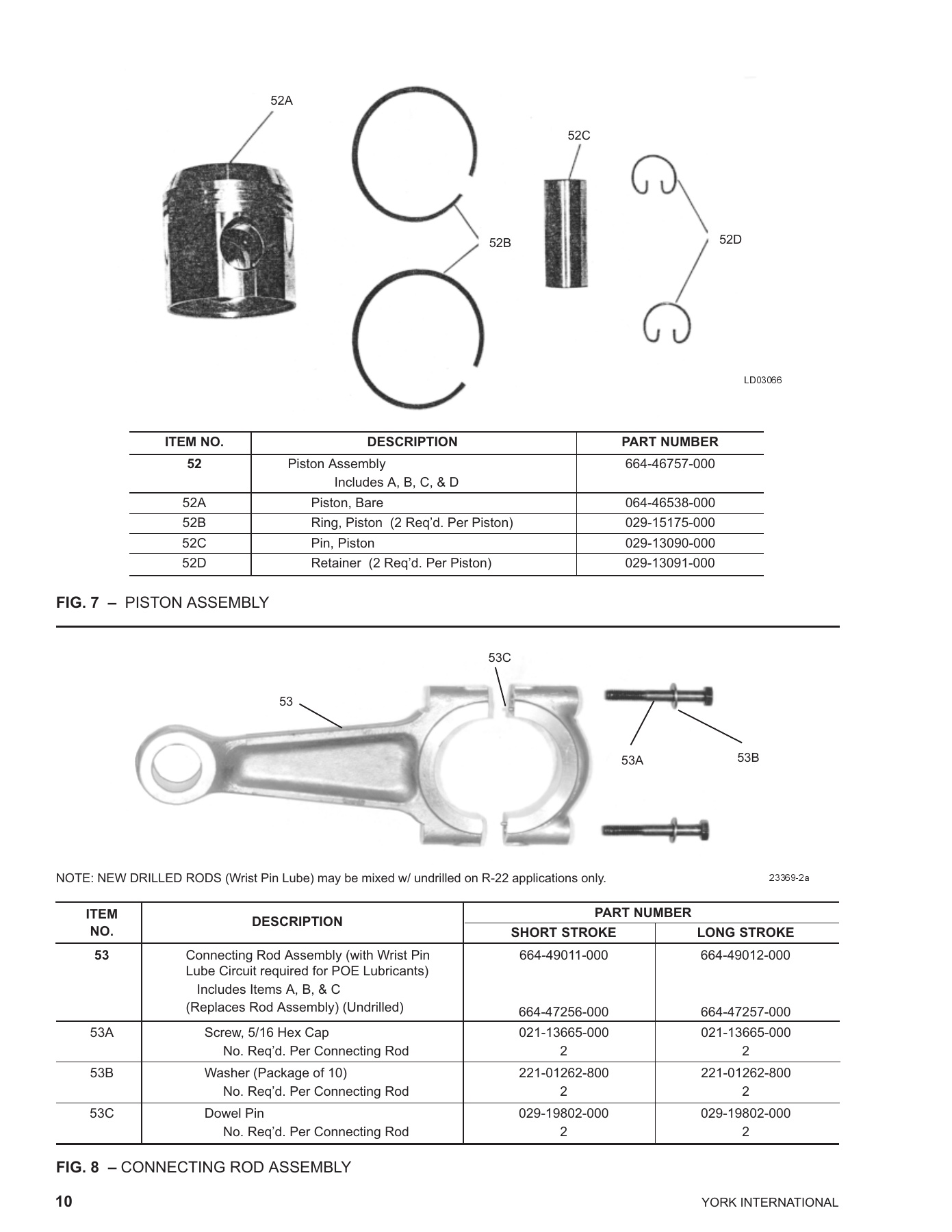

FIG. 7  –

PISTON ASSEMBLY

FIG. 8  –

CONNECTING ROD ASSEMBLY

LD03066

23369-2a

53

53C

53A

53B

52A

52B

52C

52D

NOTE: NEW DRILLED RODS (Wrist Pin Lube) may be mixed w/ undrilled on R-22 applications only.
