FORM 180.23-RP4

YORK INTERNATIONAL

9

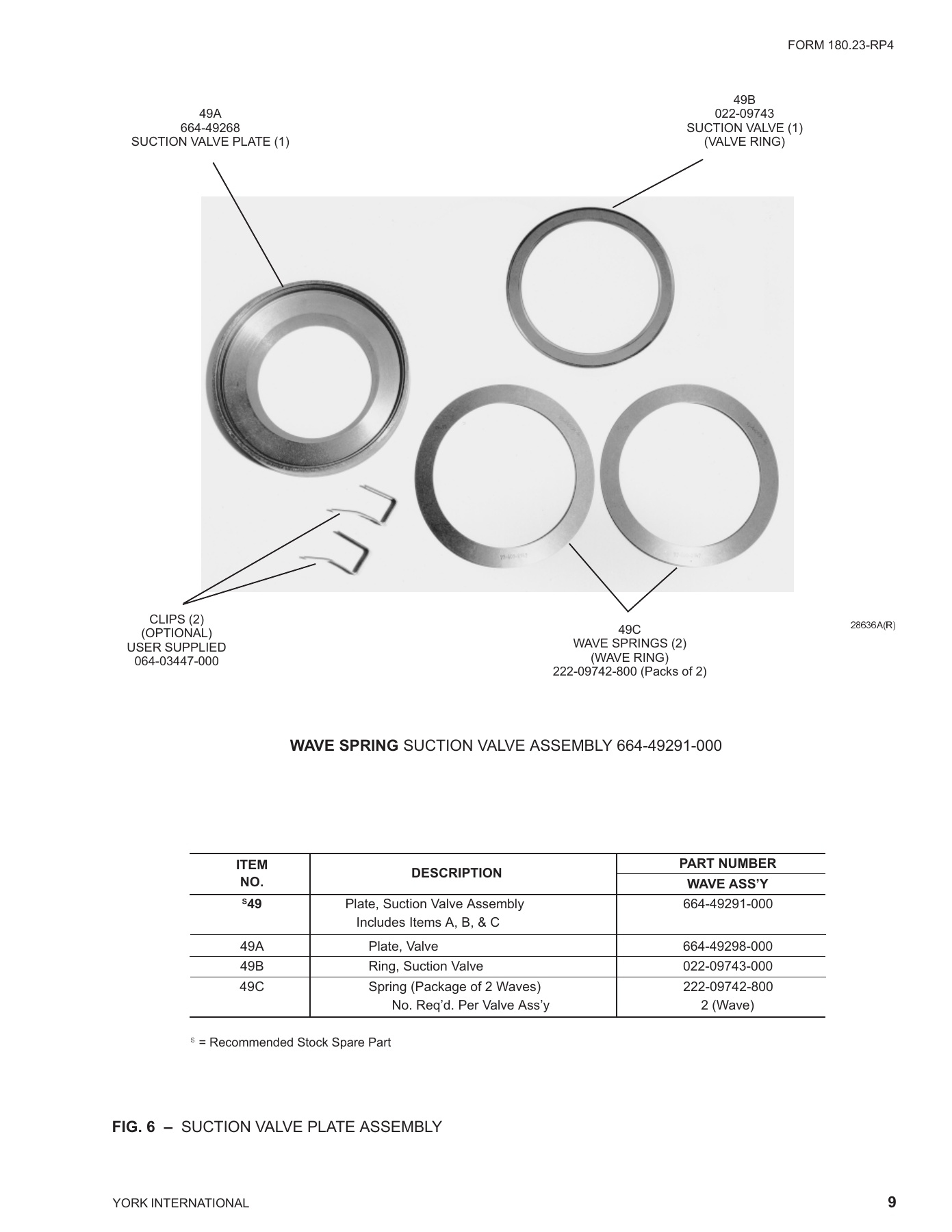

 WAVE SPRING

 SUCTION VALVE ASSEMBLY 664-49291-000

FIG. 6  –

SUCTION VALVE PLATE ASSEMBLY

ITEM

DESCRIPTION

PART NUMBER

NO.

WAVE ASS’Y

S

49

Plate, Suction Valve Assembly

664-49291-000

   Includes Items A, B, & C

49A

Plate, Valve

664-49298-000

49B

Ring, Suction Valve

022-09743-000

49C

Spring (Package of 2 Waves)

222-09742-800

No. Req’d. Per Valve Ass’y

2 (Wave)

S

 = Recommended Stock Spare Part

28636A(R)

49A

664-49268

SUCTION VALVE PLATE (1)

49B

022-09743

SUCTION VALVE (1)

(VALVE RING)

CLIPS (2)

(OPTIONAL)

USER SUPPLIED

064-03447-000

49C

WAVE SPRINGS (2)

(WAVE RING)

222-09742-800 (Packs of 2)
