FORM 160.69-RP2 (522)

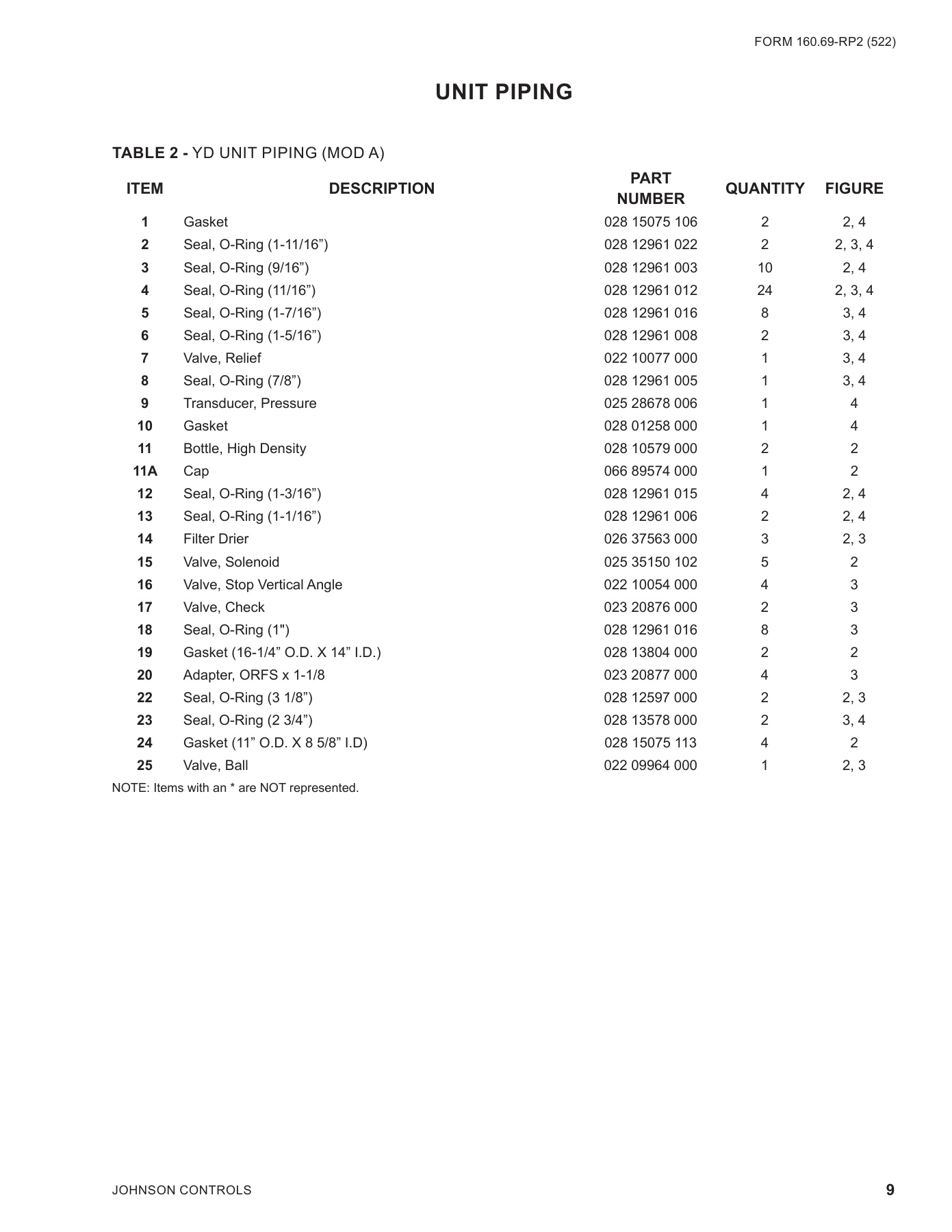

TABLE 2 -

YD UNIT PIPING (MOD A)

ITEM

DESCRIPTION

PART

NUMBER

QUANTITY FIGURE

1

Gasket

028 15075 106

2

2, 4

2

Seal, O-Ring (1-11/16”)

028 12961 022

2

2, 3, 4

3

Seal, O-Ring (9/16”)

028 12961 003

10

2, 4

4

Seal, O-Ring (11/16”)

028 12961 012

24

2, 3, 4

5

Seal, O-Ring (1-7/16”)

028 12961 016

8

3, 4

6

Seal, O-Ring (1-5/16”)

028 12961 008

2

3, 4

7

Valve, Relief

022 10077 000

1

3, 4

8

Seal, O-Ring (7/8”)

028 12961 005

1

3, 4

9

Transducer, Pressure

025 28678 006

1

4

10

Gasket

028 01258 000

1

4

11

Bottle, High Density

028 10579 000

2

2

11A

Cap

066 89574 000

1

2

12

Seal, O-Ring (1-3/16”)

028 12961 015

4

2, 4

13

Seal, O-Ring (1-1/16”)

028 12961 006

2

2, 4

14

Filter Drier

026 37563 000

3

2, 3

15

Valve, Solenoid

025 35150 102

5

2

16

Valve, Stop Vertical Angle

022 10054 000

4

3

17

Valve, Check

023 20876 000

2

3

18

Seal, O-Ring (1")

028 12961 016

8

3

19

Gasket (16-1/4” O.D. X 14” I.D.)

028 13804 000

2

2

20

Adapter, ORFS x 1-1/8

023 20877 000

4

3

22

Seal, O-Ring (3 1/8”)

028 12597 000

2

2, 3

23

Seal, O-Ring (2 3/4”)

028 13578 000

2

3, 4

24

Gasket (11” O.D. X 8 5/8” I.D)

028 15075 113

4

2

25

Valve, Ball

022 09964 000

1

2, 3

NOTE: Items with an * are NOT represented.

UNIT PIPING
