8

         YORK INTERNATIONAL

LD03722

ITEM NO.

DESCRIPTION

PART NUMBER

s

47

Cage, Discharge Valve Assembly

364-48785-000

Includes A, B, C, D, E, & F

47A

Cage, Discharge Valve

064-48787-000

47B

Plate, Inner Valve

064-48032-000

47C

Ring, Discharge Valve

064-43012-000

47D

Screw, 3/8 Button Head Cap

021-17649-000

47E

Nut, 3/8 Hex Self Locking

021-09932-000

47F

Spring, Helical

021-21788-000

No. Req’d. Per Valve Ass’y

6

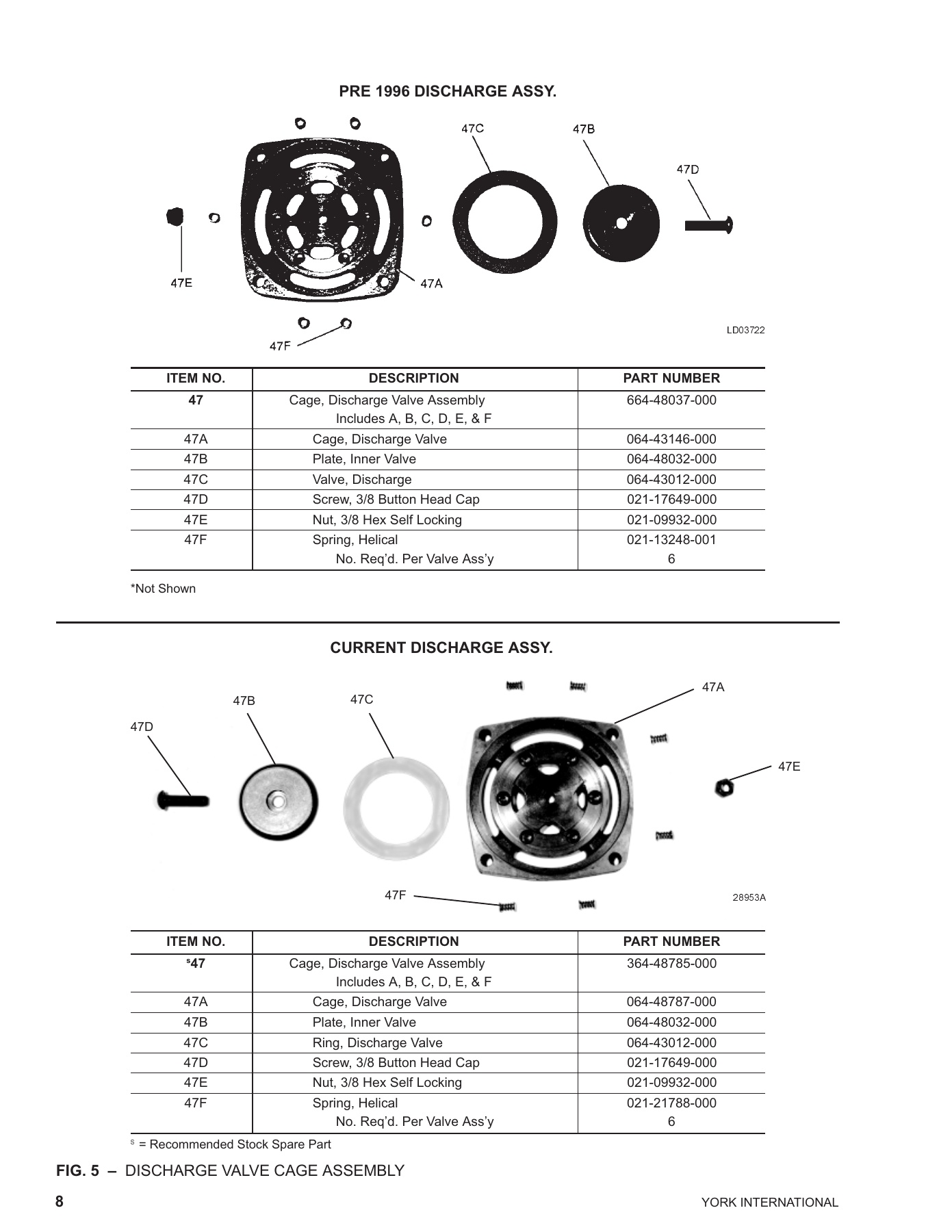

FIG. 5  –

DISCHARGE VALVE CAGE ASSEMBLY

S

 = Recommended Stock Spare Part

ITEM NO.

DESCRIPTION

PART NUMBER

47

Cage, Discharge Valve Assembly

664-48037-000

Includes A, B, C, D, E, & F

47A

Cage, Discharge Valve

064-43146-000

47B

Plate, Inner Valve

064-48032-000

47C

Valve, Discharge

064-43012-000

47D

Screw, 3/8 Button Head Cap

021-17649-000

47E

Nut, 3/8 Hex Self Locking

021-09932-000

47F

Spring, Helical

021-13248-001

No. Req’d. Per Valve Ass’y

6

*Not Shown

PRE 1996 DISCHARGE ASSY.

CURRENT DISCHARGE ASSY.

47D

47B

47C

47A

47E

47F

28953A
