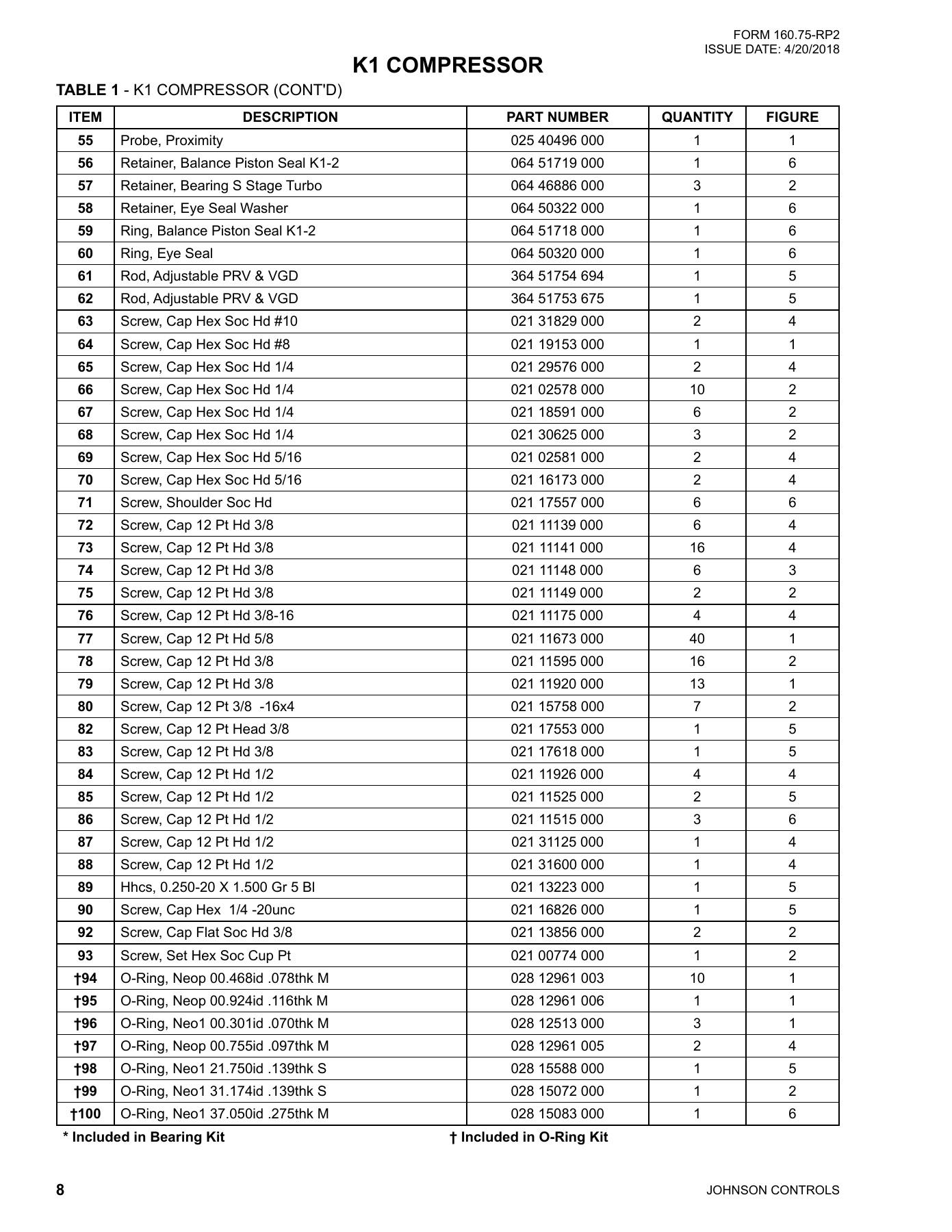

K1 COMPRESSOR
TABLE 1
- K1 COMPRESSOR (CONTD)
ITEM
DESCRIPTION
PART NUMBER
QUANTITY
FIGURE
55
Probe, Proximity
025 40496 000
1
1
56
Retainer, Balance Piston Seal K1-2
064 51719 000
1
6
57
Retainer, Bearing S Stage Turbo
064 46886 000
3
2
58
Retainer, Eye Seal Washer
064 50322 000
1
6
59
Ring, Balance Piston Seal K1-2
064 51718 000
1
6
60
Ring, Eye Seal
064 50320 000
1
6
61
Rod, Adjustable PRV & VGD
364 51754 694
1
5
62
Rod, Adjustable PRV & VGD
364 51753 675
1
5
63
Screw, Cap Hex Soc Hd #10
021 31829 000
2
4
64
Screw, Cap Hex Soc Hd #8
021 19153 000
1
1
65
Screw, Cap Hex Soc Hd 1/4
021 29576 000
2
4
66
Screw, Cap Hex Soc Hd 1/4
021 02578 000
10
2
67
Screw, Cap Hex Soc Hd 1/4
021 18591 000
6
2
68
Screw, Cap Hex Soc Hd 1/4
021 30625 000
3
2
69
Screw, Cap Hex Soc Hd 5/16
021 02581 000
2
4
70
Screw, Cap Hex Soc Hd 5/16
021 16173 000
2
4
71
Screw, Shoulder Soc Hd
021 17557 000
6
6
72
Screw, Cap 12 Pt Hd 3/8
021 11139 000
6
4
73
Screw, Cap 12 Pt Hd 3/8
021 11141 000
16
4
74
Screw, Cap 12 Pt Hd 3/8
021 11148 000
6
3
75
Screw, Cap 12 Pt Hd 3/8
021 11149 000
2
2
76
Screw, Cap 12 Pt Hd 3/8-16
021 11175 000
4
4
77
Screw, Cap 12 Pt Hd 5/8
021 11673 000
40
1
78
Screw, Cap 12 Pt Hd 3/8
021 11595 000
16
2
79
Screw, Cap 12 Pt Hd 3/8
021 11920 000
13
1
80
Screw, Cap 12 Pt 3/8 -16x4
021 15758 000
7
2
82
Screw, Cap 12 Pt Head 3/8
021 17553 000
1
5
83
Screw, Cap 12 Pt Hd 3/8
021 17618 000
1
5
84
Screw, Cap 12 Pt Hd 1/2
021 11926 000
4
4
85
Screw, Cap 12 Pt Hd 1/2
021 11525 000
2
5
86
Screw, Cap 12 Pt Hd 1/2
021 11515 000
3
6
87
Screw, Cap 12 Pt Hd 1/2
021 31125 000
1
4
88
Screw, Cap 12 Pt Hd 1/2
021 31600 000
1
4
89
Hhcs, 0.250-20 X 1.500 Gr 5 Bl
021 13223 000
1
5
90
Screw, Cap Hex 1/4 -20unc
021 16826 000
1
5
92
Screw, Cap Flat Soc Hd 3/8
021 13856 000
2
2
93
Screw, Set Hex Soc Cup Pt
021 00774 000
1
2
†94
O-Ring, Neop 00.468id .078thk M
028 12961 003
10
1
†95
O-Ring, Neop 00.924id .116thk M
028 12961 006
1
1
†96
O-Ring, Neo1 00.301id .070thk M
028 12513 000
3
1
†97
O-Ring, Neop 00.755id .097thk M
028 12961 005
2
4
†98
O-Ring, Neo1 21.750id .139thk S
028 15588 000
1
5
†99
O-Ring, Neo1 31.174id .139thk S
028 15072 000
1
2
†100
O-Ring, Neo1 37.050id .275thk M
028 15083 000
1
6
* Included in Bearing Kit
† Included in O-Ring Kit
