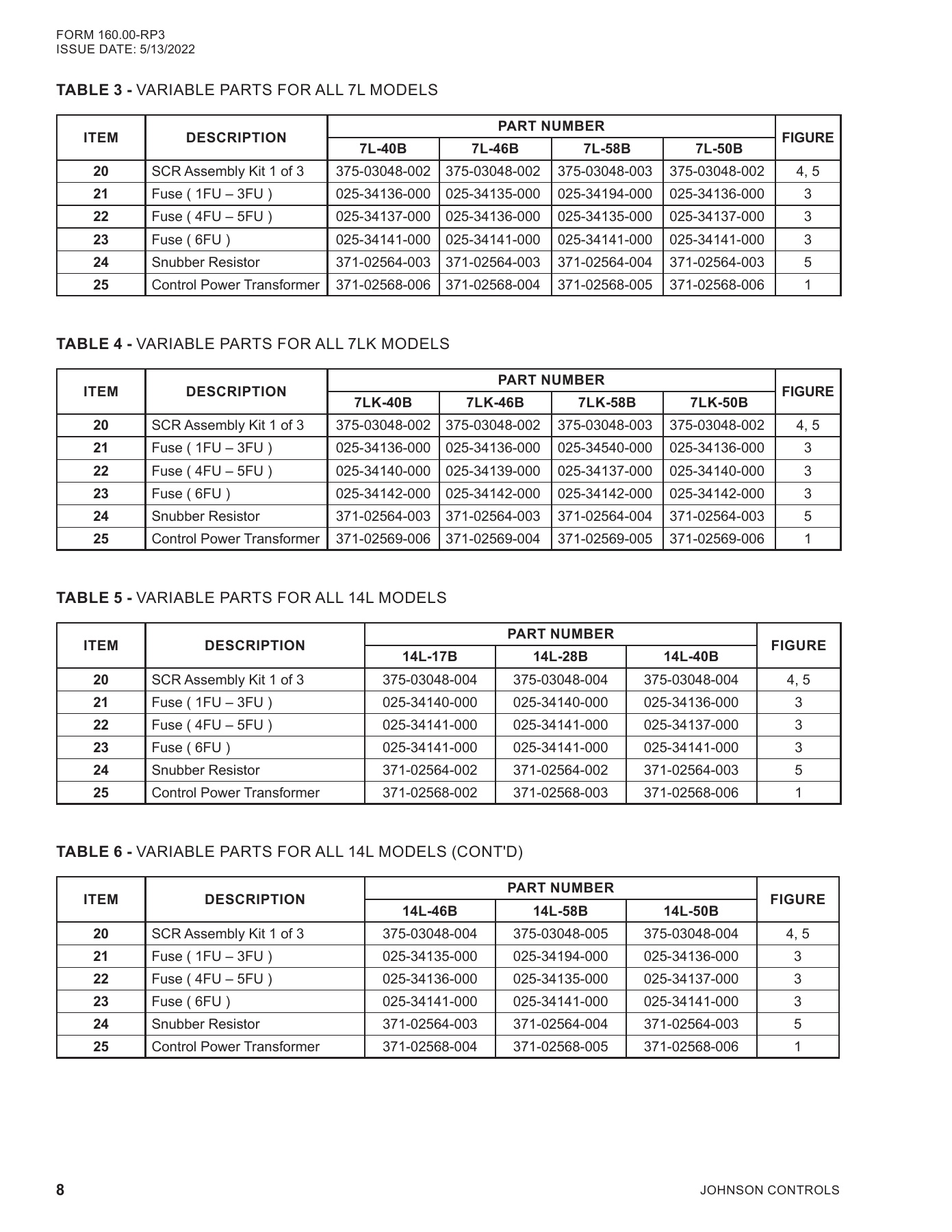

FORM 160.00-RP3
ISSUE DATE: 5/13/2022
TABLE 3 -
VARIABLE PARTS FOR ALL 7L MODELS
ITEM
DESCRIPTION
PART NUMBER
FIGURE
7L-40B
7L-46B
7L-58B
7L-50B
20
SCR Assembly Kit 1 of 3
375-03048-002 375-03048-002 375-03048-003 375-03048-002
4, 5
21
Fuse ( 1FU – 3FU )
025-34136-000 025-34135-000 025-34194-000 025-34136-000
3
22
Fuse ( 4FU – 5FU )
025-34137-000 025-34136-000 025-34135-000 025-34137-000
3
23
Fuse ( 6FU )
025-34141-000 025-34141-000 025-34141-000 025-34141-000
3
24
Snubber Resistor
371-02564-003 371-02564-003 371-02564-004 371-02564-003
5
25
Control Power Transformer 371-02568-006 371-02568-004 371-02568-005 371-02568-006
1
TABLE 4 -
VARIABLE PARTS FOR ALL 7LK MODELS
ITEM
DESCRIPTION
PART NUMBER
FIGURE
7LK-40B
7LK-46B
7LK-58B
7LK-50B
20
SCR Assembly Kit 1 of 3
375-03048-002 375-03048-002 375-03048-003 375-03048-002
4, 5
21
Fuse ( 1FU – 3FU )
025-34136-000 025-34136-000 025-34540-000 025-34136-000
3
22
Fuse ( 4FU – 5FU )
025-34140-000 025-34139-000 025-34137-000 025-34140-000
3
23
Fuse ( 6FU )
025-34142-000 025-34142-000 025-34142-000 025-34142-000
3
24
Snubber Resistor
371-02564-003 371-02564-003 371-02564-004 371-02564-003
5
25
Control Power Transformer 371-02569-006 371-02569-004 371-02569-005 371-02569-006
1
TABLE 5 -
VARIABLE PARTS FOR ALL 14L MODELS
ITEM
DESCRIPTION
PART NUMBER
FIGURE
14L-17B
14L-28B
14L-40B
20
SCR Assembly Kit 1 of 3
375-03048-004
375-03048-004
375-03048-004
4, 5
21
Fuse ( 1FU – 3FU )
025-34140-000
025-34140-000
025-34136-000
3
22
Fuse ( 4FU – 5FU )
025-34141-000
025-34141-000
025-34137-000
3
23
Fuse ( 6FU )
025-34141-000
025-34141-000
025-34141-000
3
24
Snubber Resistor
371-02564-002
371-02564-002
371-02564-003
5
25
Control Power Transformer
371-02568-002
371-02568-003
371-02568-006
1
TABLE 6 -
VARIABLE PARTS FOR ALL 14L MODELS (CONTD)
ITEM
DESCRIPTION
PART NUMBER
FIGURE
14L-46B
14L-58B
14L-50B
20
SCR Assembly Kit 1 of 3
375-03048-004
375-03048-005
375-03048-004
4, 5
21
Fuse ( 1FU – 3FU )
025-34135-000
025-34194-000
025-34136-000
3
22
Fuse ( 4FU – 5FU )
025-34136-000
025-34135-000
025-34137-000
3
23
Fuse ( 6FU )
025-34141-000
025-34141-000
025-34141-000
3
24
Snubber Resistor
371-02564-003
371-02564-004
371-02564-003
5
25
Control Power Transformer
371-02568-004
371-02568-005
371-02568-006
1
