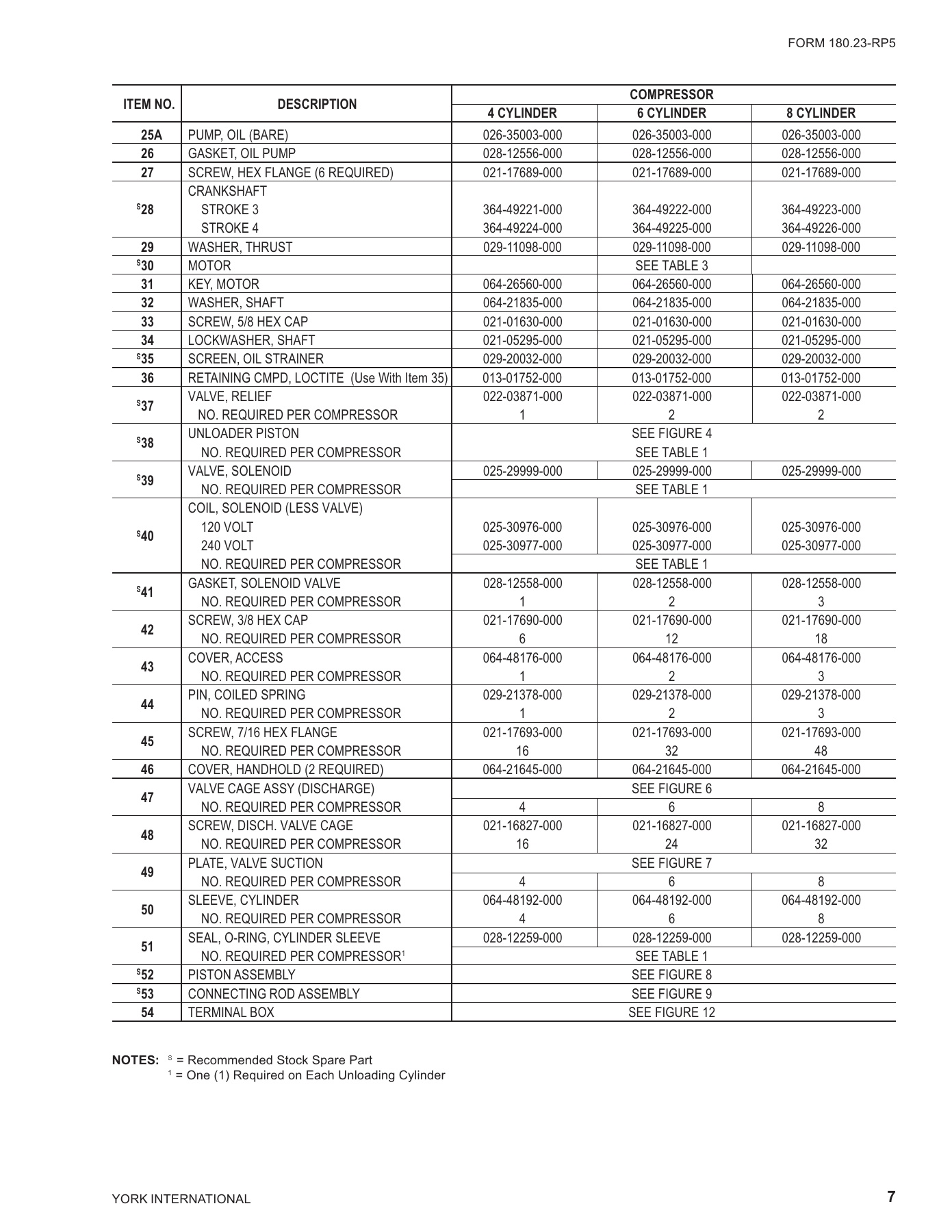

FORM 180.23-RP5
7
YORK INTERNATIONAL
NOTES:
S
= Recommended Stock Spare Part
1
= One (1) Required on Each Unloading Cylinder
COMPRESSOR
ITEM NO.
DESCRIPTION
4 CYLINDER
6 CYLINDER
8 CYLINDER
25A
PUMP, OIL (BARE)
026-35003-000
026-35003-000
026-35003-000
26
GASKET, OIL PUMP
028-12556-000
028-12556-000
028-12556-000
27
SCREW, HEX FLANGE (6 REQUIRED)
021-17689-000
021-17689-000
021-17689-000
CRANKSHAFT
S
28
STROKE 3
364-49221-000
364-49222-000
364-49223-000
STROKE 4
364-49224-000
364-49225-000
364-49226-000
29
WASHER, THRUST
029-11098-000
029-11098-000
029-11098-000
S
30
MOTOR
SEE TABLE 3
31
KEY, MOTOR
064-26560-000
064-26560-000
064-26560-000
32
WASHER, SHAFT
064-21835-000
064-21835-000
064-21835-000
33
SCREW, 5/8 HEX CAP
021-01630-000
021-01630-000
021-01630-000
34
LOCKWASHER, SHAFT
021-05295-000
021-05295-000
021-05295-000
S
35
SCREEN, OIL STRAINER
029-20032-000
029-20032-000
029-20032-000
36
RETAINING CMPD, LOCTITE (Use With Item 35)
013-01752-000
013-01752-000
013-01752-000
S
37
VALVE, RELIEF
022-03871-000
022-03871-000
022-03871-000
NO. REQUIRED PER COMPRESSOR
1
2
2
S
38
UNLOADER PISTON
SEE FIGURE 4
NO. REQUIRED PER COMPRESSOR
SEE TABLE 1
S
39
VALVE, SOLENOID
025-29999-000
025-29999-000
025-29999-000
NO. REQUIRED PER COMPRESSOR
SEE TABLE 1
COIL, SOLENOID (LESS VALVE)
S
40
120 VOLT
025-30976-000
025-30976-000
025-30976-000
240 VOLT
025-30977-000
025-30977-000
025-30977-000
NO. REQUIRED PER COMPRESSOR
SEE TABLE 1
S
41
GASKET, SOLENOID VALVE
028-12558-000
028-12558-000
028-12558-000
NO. REQUIRED PER COMPRESSOR
1
2
3
42
SCREW, 3/8 HEX CAP
021-17690-000
021-17690-000
021-17690-000
NO. REQUIRED PER COMPRESSOR
6
12
18
43
COVER, ACCESS
064-48176-000
064-48176-000
064-48176-000
NO. REQUIRED PER COMPRESSOR
1
2
3
44
PIN, COILED SPRING
029-21378-000
029-21378-000
029-21378-000
NO. REQUIRED PER COMPRESSOR
1
2
3
45
SCREW, 7/16 HEX FLANGE
021-17693-000
021-17693-000
021-17693-000
NO. REQUIRED PER COMPRESSOR
16
32
48
46
COVER, HANDHOLD (2 REQUIRED)
064-21645-000
064-21645-000
064-21645-000
47
VALVE CAGE ASSY (DISCHARGE)
SEE FIGURE 6
NO. REQUIRED PER COMPRESSOR
4
6
8
48
SCREW, DISCH. VALVE CAGE
021-16827-000
021-16827-000
021-16827-000
NO. REQUIRED PER COMPRESSOR
16
24
32
49
PLATE, VALVE SUCTION
SEE FIGURE 7
NO. REQUIRED PER COMPRESSOR
4
6
8
50
SLEEVE, CYLINDER
064-48192-000
064-48192-000
064-48192-000
NO. REQUIRED PER COMPRESSOR
4
6
8
51
SEAL, O-RING, CYLINDER SLEEVE
028-12259-000
028-12259-000
028-12259-000
NO. REQUIRED PER COMPRESSOR
1
SEE TABLE 1
S
52
PISTON ASSEMBLY
SEE FIGURE 8
S
53
CONNECTING ROD ASSEMBLY
SEE FIGURE 9
54
TERMINAL BOX
SEE FIGURE 12
